D-Link DWC-2000 Quick Installation Manual page 8

To discover and manage the Unified AP:
1. Record the MAC address of each Unified AP on the network.
2. Connect the Unified AP you want to configure to the local area Ethernet network.
3. Log into the DWC-2000 and set the LAN IP address to be in the subnet of the local area Ethernet network.
4. Go through the Wizard to manage your access points.

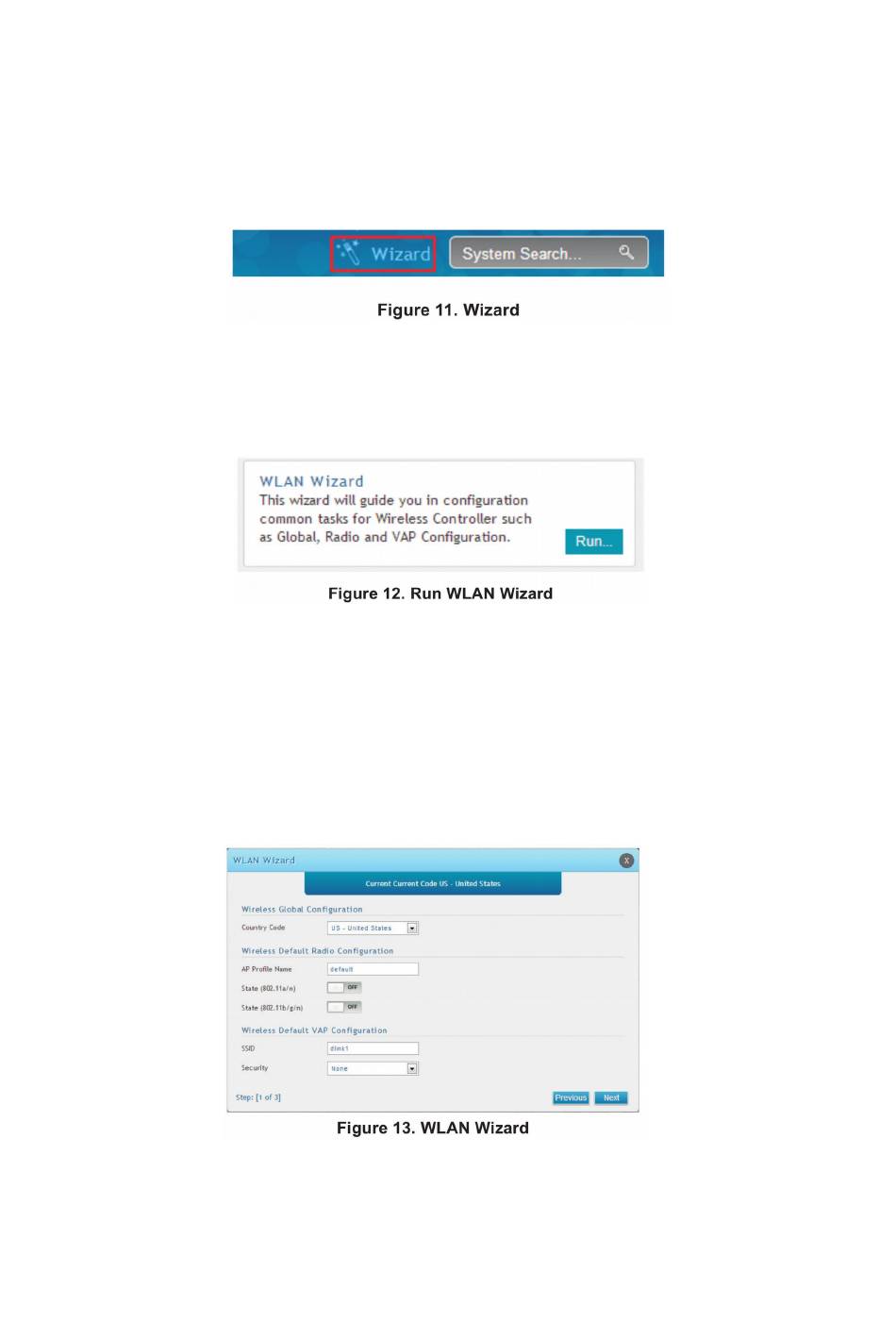

4.1 Click "Wizard" at the top right corner.
4.2 Click the "Run..." button to run the WLAN Wizard.
4.3 Wireless Global Configuration: Choose the country code.
4.4 Wireless Default Radio Configuration: Create an AP Profile for the radio setting of the wireless network.
Set the radio mode for each radio.
4.5 Wireless Default VAP Configuration: Enter the SSID network name, and then select a security method. If
you select Static WEP or WPA Personal, enter a secure passphrase for your WLAN.
4.6 Below are two methods to add access points in the managed AP list:
a. List of APs Awaiting to be Configured:
Select the access points which are discovered automatically by the wireless controller.
b. Valid Access Point Summary: Enter access point MAC address manually.
