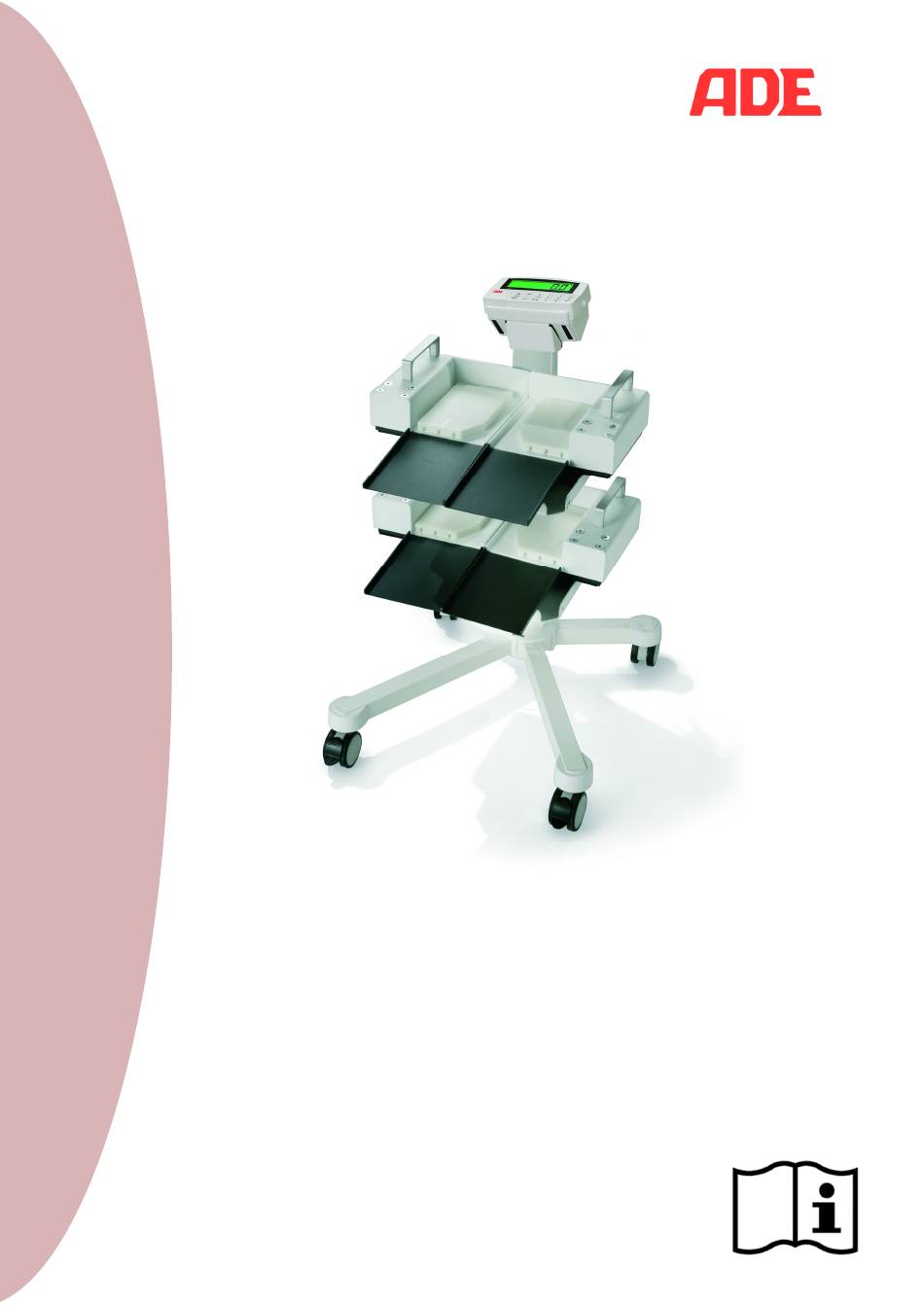

- Page 1 Operating Manual Electronic Bed Scale M600620 M600620-210422-Rev006-UM-e...
- Page 2 M600620-210422-Rev006-UM-e...
-
Page 3: Table Of Contents
Print out a record ....................... 10 Care, servicing and recalibration ......................10 Cleaning ..........................10 Error messages ........................11 Waste disposal ........................11 Storage and transport conditions ..................11 Warranty ..........................11 Technical specifications ......................... 13 Declaration of conformity ........................14 M600620-210422-Rev006-UM-e... -
Page 4: Introduction
In order to achieve the best possible results kindly read and follow the operation manual in all respects. Assembly and set up The ADE bed scale is supplied in a fully assembled condition. Please insure that your scale is being placed vibration-free at a dry place. Dismantle packaging and foil carefully and remove the transport securing de- vices. -
Page 5: Replacing Rechargeable Batteries
Close the battery compartment again. Only use original rechargeable batteries and mains adapter from ADE. The warranty does not cover any damage caused by using other types of batteries or charger units. Tips for handling the batteries The life of a battery depends on the frequency of use, temperatures, settings and the accessories being used. -
Page 6: Display
If displayed is the weight is displayed in grams. “g” Connecting additional devices Printer, PC or remote-display could be connected by the RS-232 interface. For connection of additional devices kindly ask your local representative or authorized ADE dealer for further instructions. M600620-210422-Rev006-UM-e... -
Page 7: Housing And Connections
Housing and connections The connections to mains adapter, serial port and to the load cells are located at the back of the ADE display. The set-up switch to start the configuration mode is underneath the housing. It is protected by a cover plate and secured by a screw (not shown in Fig. -
Page 8: Setting Date And Time
The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode. Setting mode Date, time and consecutive numbers for print commands are being set in this mode. -
Page 9: Before Weighing
Enter the appropriate tare value just by using the key pad under normal weighing mode. The value will be stored after use of the ENTER key (or TARE). The ADE-display is now ready for weighing and changes to net mode [NET status indicator (5) is on]. -
Page 10: Hold Function
Care, servicing and recalibration Cleaning Remove the mains plug before cleaning the unit. Do not use any aggressive cleaning materials for cleaning; only use a damp cloth or conventional disinfectant. Ensure that no liquids or any fluid gets into the scale. M600620-210422-Rev006-UM-e... -
Page 11: Error Messages
Disconnect all connected cables before dispatch. Warranty ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts – batteries, cables, mains units, rechargeable batteries etc. - Page 12 M600620-210422-Rev006-UM-e...
-
Page 13: Technical Specifications
Operating Temperature –10 to +40°C (legal); Storage Temperature –25 to +70°C Humidity 0–95% relative humidity Altitude 2000 m (6500 ft) maximum Housing Dimensions 18.6 cm x 9.5 cm x 10 cm Weight 0.4 kg (without battery) Material ABS plastic, white M600620-210422-Rev006-UM-e... -
Page 14: Declaration Of Conformity
Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, April 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 D-22143 Hamburg Manufacturer: ADE Germany GmbH... - Page 15 M600620-210422-Rev006-UM-e...
- Page 16 Dealer: M600620-210422-Rev006-UM-e...
