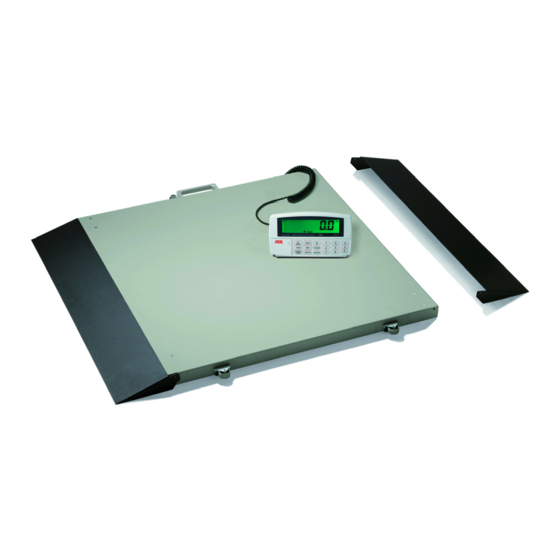

- Page 1 Operating Manual Electronic Wheelchair and Multipurpose Scales Series M500020 M500020-210322-Rev009-UM-e...
-
Page 2: Table Of Contents
Content Introduction ............................3 Equipment supplied ......................4 Assembly and set up ..........................4 Attachment of the indicator ....................4 Power supply ........................5 Replacing rechargeable batteries ..................5 Tips for handling the batteries .................... 6 Quality features ........................6 Display .............................. -
Page 3: Introduction
Keep the instructions for use for future reference. Your ADE electronic scale is a quality, sturdy and durable product manufactured under the high standards and regulations for calibrated class III scales in accordance with national regulation in Germany. The scale is de- signed and manufactured for the daily practice in hospitals, doctors’... -
Page 4: Equipment Supplied
5) Operation manual including declaration of conformity Assembly and set up The indicator/ display of your ADE scale is able to be mounted on walls, on sockets, handrails or on stand-on devices for the table depending on the model you have selected. -
Page 5: Power Supply
The wall socket must be located near to the unit and be easily accessible. Please use only the mains adapter supplied by ADE. The mains adapter is charging the battery pack at the same time. When the battery is being charged for the first time a sufficient charging period of approx. 24 hours is neces- sary to achieve a full battery load. -
Page 6: Tips For Handling The Batteries
Never dispose of batteries in fire as they can leak or explode Quality features ADE products correspond to the applicable EC Directives and European standards to manufacture and distribute world-wide medical devices as per the latest technical standards ensuring a long life time and continuous reliability. -
Page 7: Display
Housing and connections The connections to mains adapter, serial port and to the load cells are located at the back of the ADE display. The set-up switch to start the configuration mode is underneath the housing. It is protected by a cover plate and secured by a screw (not shown in Fig. -
Page 8: Safety
Safety Safety instructions The ADE-display unit (MAK) corresponds to the latest state of the art technology and complies with standard regulations and directives. Kindly follow the safety instructions in this operating manual, the country-specific installation standards as well as the applicable safety conditions and accident prevention regulations in all aspects. -
Page 9: Setting Date And Time
The "weighing mode" is of course the standard mode of your scale. After initial configuration and sealing (by attaching a calibration sticker to the back of the unit), the ADE-scale can only be operated in this mode. Setting mode Date, time and consecutive numbers for print commands are being set in this mode. -
Page 10: Tare Function
Enter the appropriate tare value just by using the key pad under normal weighing mode. The value will be stored after use of the ENTER key (or TARE). The ADE-display is now ready for weighing and changes to net mode [NET status indicator (5) is on]. Enter the tare button to leave this mode. -
Page 11: Evaluating Body Mass Index
valuating Body Mass Index BMI evaluation according to WHO < Severely underweight Moderately underweight 18.5 Slightly underweight 18.5 Normal weight Overweight Obese Class I Obese Class II > Obese Class III Print out a record The scales must be at standstill, e.g. standstill status display (14) appears at the screen. -
Page 12: Waste Disposal
Disconnect all connected cables before dispatch. This is how you can avoid unnecessary damage. Warranty ADE will repair or replace this product within a period of 2 years from date of delivery applying to defects oc- curred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts – bat- teries, cables, mains units, rechargeable batteries etc. -
Page 13: Technical Specifications
Technical specifications Power supply Mains Adapter: Mains voltage 115 or 230VAC Frequency 50 or 60HZ Power Consumption 11W in-charge, 2W off-charge Main power circuit Input Voltage 5.0VDC Max. Current (in-charger) 1000mA Battery Requirement: Rechargeable Lithium Ion Cylindrical (18650x2) Cell 3.7V 4000mAH Battery Operation: Charger 7~10 Hours... -
Page 14: Conformity Declaration
RoHS Directive 2011/65/EC in the currently valid versions. This declaration loses its validity if modifications are made to the scale without our approval. Hamburg, March 2021 ADE Germany GmbH Neuer Hoeltigbaum 15 22143 Hamburg / Germany Manufacturer: ADE Germany GmbH... - Page 15 M500020-210322-Rev009-UM-e...
- Page 16 Dealer: M500020-210322-Rev009-UM-e...
