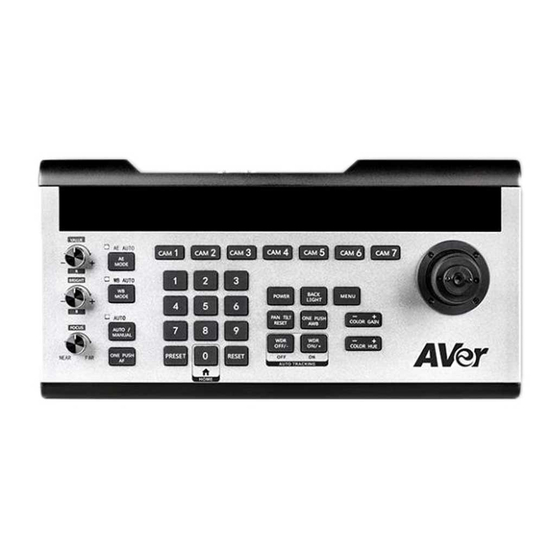

AVer CL01 User Manual

Ptz camera controller
Hide thumbs Also See for CL01:
Table of Contents

Advertisement

Quick Links

Download this manual
PTZ Camera Controller
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVer CL01

Summary of Contents for AVer CL01

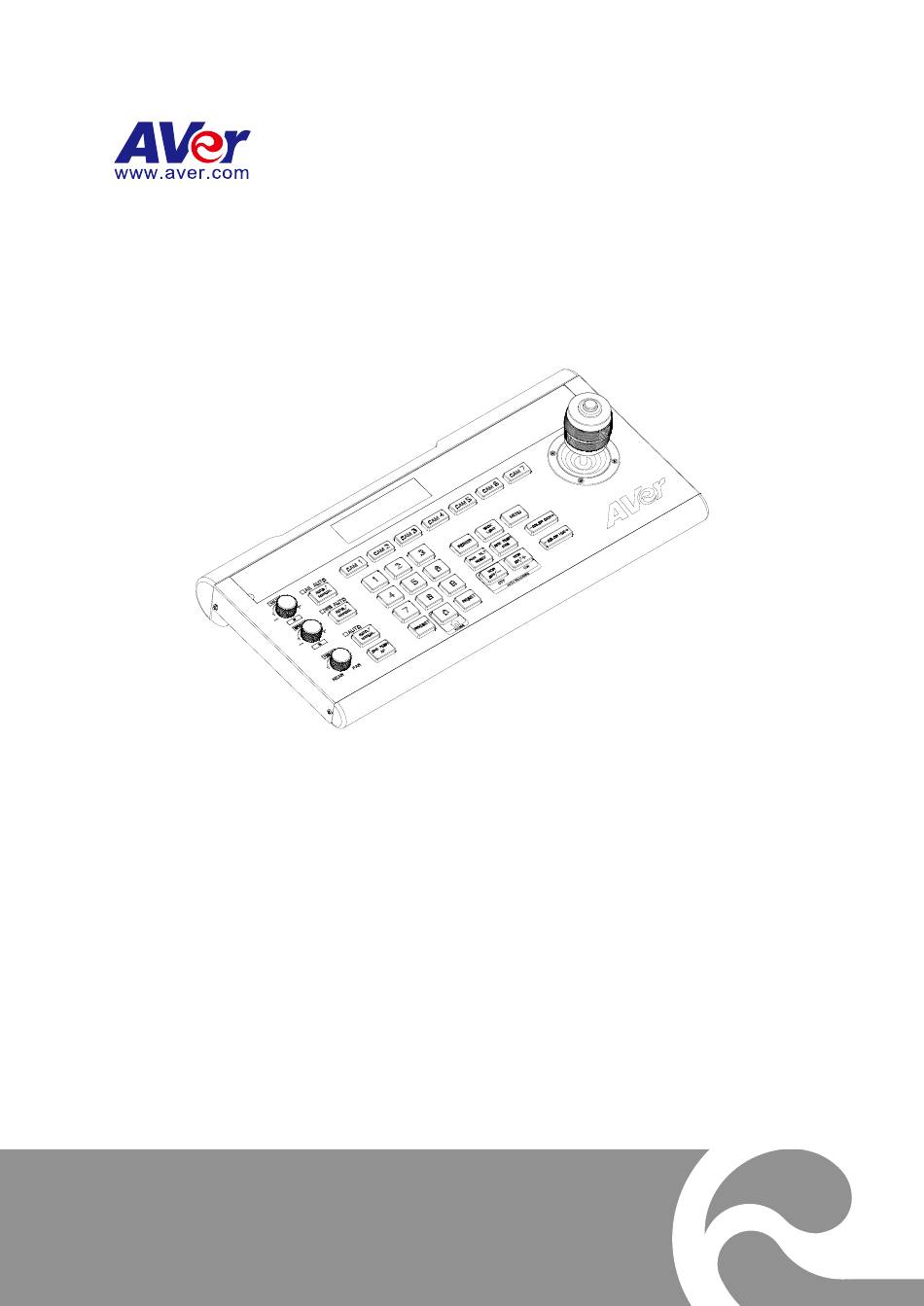

  • Page 1 PTZ Camera Controller User Manual...
  • Page 2 In no event will AVer Information Inc. be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 3 COPYRIGHT © 2019 AVer Information Inc. All rights reserved. All rights of this object belong to AVer Information Inc. Reproduced or transmitted in any form or by any means without the prior written permission of AVer Information Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 4: Table Of Contents

    Contents Product Introduction ....................1 Overview ......................1 Dimensions ..................... 2 Connections ......................3 Function Buttons ..................... 4 Camera Controller Operation ................. 7 Menu ....................... 7 System Setting ....................7 COM Setting ....................8 Ethernet Setting ....................9 Password Setting .................... 9...
  • Page 5 Specification ......................11...

  • Page 6: Product Introduction

    Product Introduction Overview UPGRADE RS422 RS232 DC12V T T R R RS485 Name Function To upgrading the firmware of device. Using micro USB cable to (1) Micro USB port connection with PC to upgrade. (2) RS422/RS485 port To connection with camera through the RS422 or RS485 port. Please refer the below table for connection.

  • Page 7: Dimensions

    Dimensions Unit: mm V A L U E AE AUT O MODE WB A UTO BR IG H T BACK POWER MENU MODE LIGHT A UTO TILT PUSH COLOR GAIN RESET F O C U S A U T O MANUAL OFF/- ON/+...

  • Page 8: Connections

    Connections All devices need to connect the power and power on.  [Note] For camera controller, please use the power plug corresponds to your country has supported. We provide 4 types of power plug in package – EU, US, UK, and AU. ...

  • Page 9: Function Buttons

    Function Buttons (12) VALUE AE AUTO M ODE (11) WB AUTO BRIGHT BACK POWER MENU MODE LIGHT AUT O TILT PUSH RESET COLOR GAIN FOCUS (10) A U T O MA NUAL COLOR HUE OFF/- ON/+ PU SH PRESET RE S ET NEAR (5) (6) Light sensor...
  • Page 10 Function Buttons (continued) WB AUTO WB Auto button M ODE It is to modify the camera’s white balance WB Mode R-Knobs B-Knobs mode. Each time press it, it will changed Function Function to different mode. Under the different White balance mode, the R-Knobs and Auto None None...
  • Page 11 Function Buttons (continued) Camera function buttons(continued) (12) LED Display Panel It displays current camera controller status, ONE PUSH AWB: To trigger one time relates information, and system’s menu. white balance adjustment. WDR OFF/- and Tracking OFF WDR OFF/-: To turn off WDR function (13) Multi-channel or reduce the WDR.

  • Page 12: Camera Controller Operation

    PTZ Camera Controller Operation Menu Press “MENU” button to enter the menu. Press menu button again to exit. The main menu is as below shown: System Setting COM setting Ethernet setting Password setting In menu, using joystick to select and setup the parameters. Enter the submenu, move to the selection,, or confirm the selected Right value...

  • Page 13: Com Setting

    System Setting (continue)  Joystick sensitive Setup the sensitive level of joystick – 1~7. The swinging amplitude of the joystick can control the speed of the pan/tilt rotation speed. When the joystick sensitivity is set to high, it can swing a small amplitude to control the rapid rotation. ...

  • Page 14: Ethernet Setting

    COM Setting (continue)  Baudrate Setup the baud rate for channel (CAM1 ~ CAM7) – 2400, 4800, 9600, 19200, 38400.  Protocol Setup the protocol for channel (CAM1 ~ CAM7) – Visca, SonyVisca, Pelco-P or Pelco-D. Ethernet Setting To set the camera’s channel, IP address, and port on the PTZ camera controller. The Ethernet setting menu is as below shown: Channel: CAM1 Cam IP: 192.168.001.100...
  • Page 15 password and re-enter the new password again to confirm. [Tip]Using the number button (0~9) to enter the password.
  • Page 16 Specification I/O port RS422/RS485 port 4Pin Terminal RS232 port DB 9Pin Male Interface LAN port RJ45 Female port (All of Communication Port can working at the same time) Power plug JEITA type4 Female Upgrade port Micro USB Female port Camera Control Max Support 255pcs PTZ Camera Control Protocol...
  • Page 17 P/N: 300AS330-EEL...
