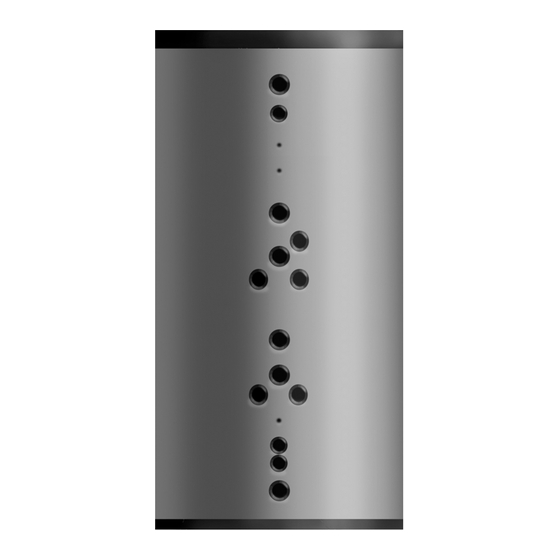

- Page 1 Accessories for heat pumps Operating Manual Multi-functional domestic hot water storage tank MFS 600 S, MFS 830 S, MFS 1000 S 83017400dUK...
-
Page 2: Please Read First
Adhere to the given sequence. ● Single-step instruction for action ● List Reference to further information elsewhere in the operating manual or in another docu- ment. Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 3: Table Of Contents
MFS 1000 S ............14 Installation plan for all storage tanks ....15 Hydraulic connections ........16 Variant 1 ............16 Variant 2 ............17 Legend hydraulic diagram ........ 18 Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 4: Intended Use
This applies in particular to the wearing of personal protective clothing. During the warranty and guarantee period, servicing and repair work may only be carried out by personnel authorised by the manufacturer. Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 5: Personal Protective Equipment
EHZ 90 ● : suitable combination, n.g. : not suitable For details of the quantity and positioning of the heating element sockets, refer to the dimensioned drawing of the respective tank. Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 6: Transport, Installation, Assembly
This can result in personal injuries and damage. ► Take suitable precautions, which pre- vent the tipping hazard. Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 7: Installation
Please note that all components must be re- assembled in the reverse order! WARNING Make sure you secure the tank against slipping during transport. Always secure the tank on the hand truck with a ratchet strap! Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 8: Circulation Kit Installation
(connection part facing down- wards). Replace the tank cover and push the grommets over the corresponding pipe connections. Seal the thread of the flexible corrugated pipe and screw into the tee. Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 9: Insulate The Circulation Connection
Integrate the multi-functional storage tank in the heating system and domestic hot water circuit as shown in the hydraulic diagram. IMPORTANT Tighten the union nut carefully to prevent Hydraulic connection damage to the seal! Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 10: Sensor Installation
Sensor connection as shown in the “terminal dia- gram of the respective heat pump type”. Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 11: Technical Data
• yes – no – | • – | • – | • *) for further details see dimensional drawing | Manufacturer: ait deutschland GmbH | Index: a 813605 813606 813607 Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 12: Dimensional Drawings
11/ 4 " IG | 11/ 4 " IG (both can be replaced) 15 Sensor pocket (Solar) Ø 13x75 16 Cold water inlet 1" AG 17 Sensor exchanger return 1" IG 18 Return of second heat generator (draining) 11/2" IG Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 13: Mfs 830 S
(both can be replaced) 15 Sensor pocket (Solar) Ø 13 x 100 16 Sensor exchanger return 1" IG 17 Cold water inlet 1" AG 18 Return of second heat generator (draining) 11/2" IG Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 14: Mfs 1000 S
(both can be replaced) 15 Sensor pocket (Solar) Ø 13 x 100 16 Sensor exchanger return 1" IG 17 Cold water inlet 1" AG 18 Return of second heat generator (draining) 11/2" IG Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 15: Installation Plan For All Storage Tanks
Keys: UK819397 Draufsicht All dimensions in mm. MF Mindestfläche um Betriebsfähigkeit und Service sicher zu stellen Storage tank Speicher Top view Minimum area to ensure ability to operate and service Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 16: Hydraulic Connections
Variant 1 Hydraulic connection MFS max. 20 m² max. 15 KW ZWE 2 ZWE 1 J 62 833308 / Code 218 Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 17: Variant 2
Hydraulic connection MFS Variant 2 max. 20 m² max. 15 KW ZWE 2 ZWE 1 J 62 833308U / Code 217 Subject to change without notice | 83017400dUK | ait-deutschland GmbH... -
Page 18: Legend Hydraulic Diagram
Subject to change without notice | 83017400dUK | ait-deutschland GmbH... - Page 19 Subject to change without notice | 83017400dUK | ait-deutschland GmbH...
- Page 20 GmbH Industriestraße 3 D-95359 Kasendorf www.ait-deutschland.eu...
