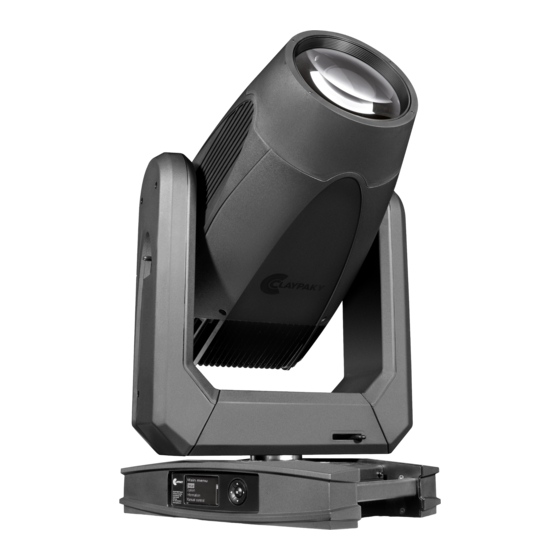

SINFONYA PROFILE 6
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
CL3018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Claypaky SINFONYA PROFILE 600
Summary of Contents for Claypaky SINFONYA PROFILE 600
-
Page 1: Table Of Contents
We thank you for your custom. Safety information Please note that this product, as all the others in the rich Claypaky range, has been designed and made with Unpacking and preparation total quality to ensure excellent performance and best Installation and start-up meet your expectations and requirements. - Page 2 1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also available in digital format at the following link: www.claypaky.com Ref: FIS02A - Safety Information Sinfonya Profile 600 INFORMAZIONI DI SICUREZZA...
- Page 3 2. UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release every 90°) - Fig. 2 TILT Mechanism Lock and Release every 45°) - Fig. 3 SINFONYA PROFILE 6...
- Page 4 3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the projector - Fig. 4 The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.
- Page 5 3.2 Connecting to manis supply Connecting and disconnecting power cable - Fig. 6 Mains Mains Out Max 1200VA Max 1 Unit Connecting to the mains supply - Fig. 7 3.3 Connecting the control signal line: DMX / Art-Net DMX 512 5 PIN SCREEN SIGNAL...
-
Page 6: Switching On The Fixture And Basic Setup
3.4 Switching on the fixture and basic SetUp Fixture ID Dmx Address Warning Message Switching on the projector - Fig. 9 Press the switch. The projector starts resetting the effects. At the same time, the following information scrolls on the display: Sinfonya Firmware xxx Fixture ID) - Page 7 Functions of the buttons - Using the menu Confirms the displayed value, or activates the displayed function, or enters the successive menu. Decreases the value displayed (with auto-repetitions) or passes to the next item in the menu. DOWN Increases the value displayed (with auto-repetitions) or passes to the previous item in a menu. Return to the top level LEFT Commute from units, tens, hundreds, in the Address , Fixture ID and Calibration menù.
-
Page 8: Maintenance
4. MAINTENANCE 4.1 Opening the covers 1/4 Turn 1/4 Turn 1/4 Turn CLICK!! Locking and releasing Pan and Tilt movements - Refer to the instructions in the UNPACKING AND PREPARATION section. Opening the head covers - Fig. 11. Closing the head covers - Fig. 12. SINFONYA PROFILE 6... -
Page 9: Periodical Cleaning
• General cleaning of internal parts. • Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. • General visual check of the internal components, cabling, mechanical parts, etc. -
Page 10: Effects Module Removal
4.3 Effects module removal Upper side Lower side Extraction of the effect modules: Preliminary operations - Fig. 14. NOTE: - Do not disconnect wiring harnesses when the fixtures is switched-on, to avoid to damage electronic boards. - Do not switch-on the fixtures with wiring harness disconnected. SINFONYA PROFILE 6... - Page 11 Upper side Extraction of the effect modules - Fig. 15. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16 and 17 in reverse order. Continue SINFONYA PROFILE 6...
- Page 12 Upper side Lower side Upper side Extraction of the effect modules - Fig. 16. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16 and 17 in reverse order. SINFONYA PROFILE 6...
- Page 13 Lower side Extraction of the effect modules - Fig. 17. IMPORTANT: Grasp the modules using the support structure and not the details which could get damaged. Insertion of the effect modules: Repeat the operations indicated in Fig. 15, 16 and 17 in reverse order. Continue SINFONYA PROFILE 6...
-
Page 14: Cleaning Of The Filters
4.4 Cleaning of the filters 1/4 Turn Cleaning of the grids - Fig. 18. SINFONYA PROFILE 6... -
Page 15: Rotating Gobos
Replacing rotating gobos max 23 mm image – thickness 1 mm) - Fig. 20 - The rotating gobo wheel only use dichroic glass gobos it is not possible to use metal gobos); - For more information contact Claypaky; Continue SINFONYA PROFILE 6... - Page 16 COATED GLASS GOBOS TYPE 1 COATED GLASS GOBOS TYPE 2 GOBO DI VETRO DICROICI TIPO 1 GOBO DI VETRO DICROICI TIPO 2 Coated side Coated side towards Grey/Black side light source away from light source Uncoated side Reflective side towards light source To determine which side of a godo is coated, hold an odject up to it.
-
Page 17: Battery Removal
4.6 Battery removal This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. SINFONYA PROFILE 6... -
Page 18: Dimensions
5. DIMENSIONS (31.34") (21.93") (30.67") (16.73") (25.04") (16.42") (11.54") 6. CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. Light source exhausted or defective. - Page 19 SINFONYA PROFILE 6...
- Page 20 CLAYPAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035 -654311 - www.claypaky.com S.p.A.
