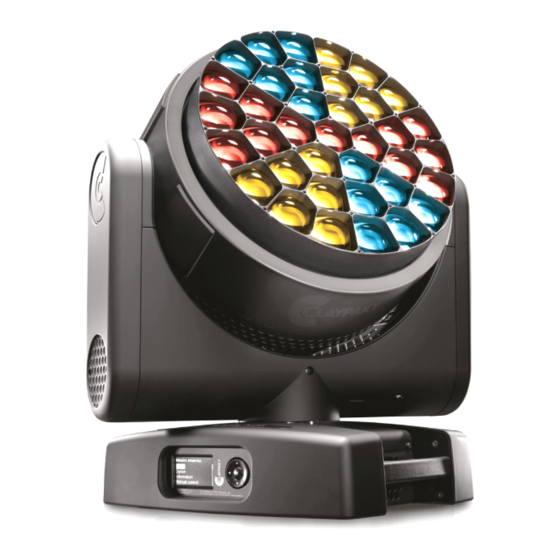

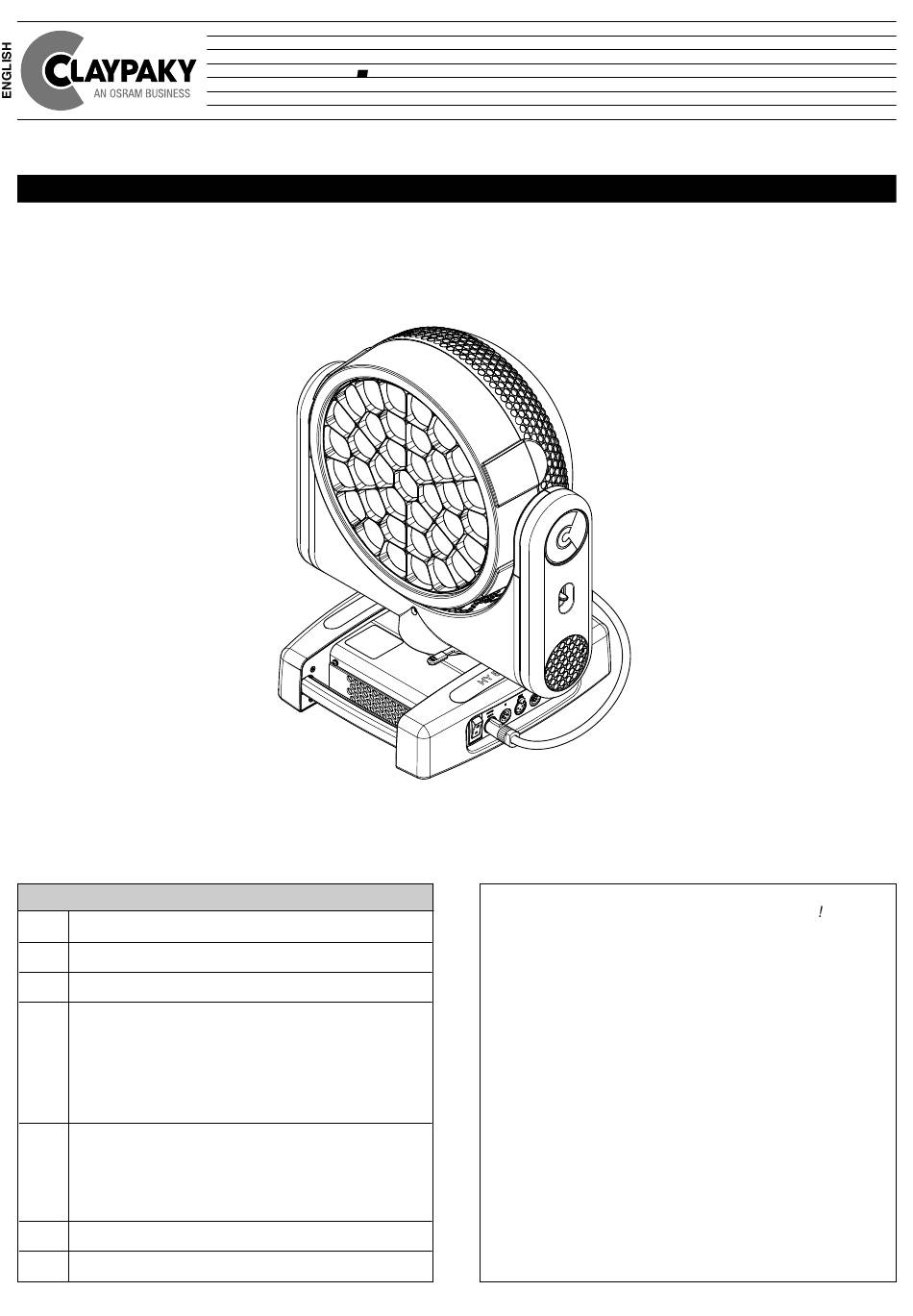

HY B EYE K25 TEATRO
INSTRUCTION MANUAL
INDEX
Congratulations on choosing a Claypaky product
We thank you for your custom.
Please note that this product, as all the others in the
rich Claypaky range, has been designed and made with
total quality to ensure excellent performance and best
meet your expectations and requirements.
1
CL3015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HY B-EYE K25 TEATRO and is the answer not in the manual?

Questions and answers

Related Manuals for Claypaky HY B-EYE K25 TEATRO

Summary of Contents for Claypaky HY B-EYE K25 TEATRO

  • Page 1: Table Of Contents

    We thank you for your custom. Please note that this product, as all the others in the Unpacking and preparation rich Claypaky range, has been designed and made with Installation and start-up total quality to ensure excellent performance and best meet your expectations and requirements.

  • Page 2: Safety Information

    1. SAFETY INFORMATION SAFETY INFORMATION IMPORTANT: Claypaky recommends you carefully read and keep the safety information on this product, also www.claypaky.com available in digital format at the following link: Ref: [FIS01I - Safety Information HY B-EYE series] INFORMAZIONI DI SICUREZZA IMPORTANTE: Claypaky raccomanda di leggere accuratamente e conservare le informazioni di sicurezza relative www.claypaky.com...

  • Page 3: Unpacking And Preparation

    2. UNPACKING AND PREPARATION 2 x 183102/805 Packing contents - Fig. 1 LOCKED UNLOCKED PAN Mechanism Lock and Release (every 90°) - Fig. 2 TILT Mechanism Lock and Release (every 45°) - Fig. 3 HY B EYE K25 TEATRO...

  • Page 4: Installation And Start-Up

    3. INSTALLATION AND START-UP 3.1 Installing the fixture Installing the projector - Fig. 4 WARNING: with the exception of when the projector is positioned on the floor, the safety cable must be fitted. Cod. 105041/003 available on request). The projector can be installed on the floor resting on special rubber feet, on a truss or on the ceiling or wall. This must be securely fixed to the support structure of the projector and then connected to the fixing point at the centre of the base.

  • Page 5: Connecting The Control Signal Line: Dmx / Art-Net

    Mains Connecting to the mains supply - Fig. 6 3.3 Connecting the control signal line: DMX / Art-Net DMX 512 5 PIN SCREEN SIGNAL SIGNAL DMX 512 3 PIN SIGNAL SCREEN SIGNAL Connecting to the control signal line (DMX) - Fig. 7 Use a cable conforming to specifications EIA RS-485: 2-pole twisted, shielded, 120Ohm characteristic impedance, 22-24 AWG, low capacity.
  • Page 6 Reversal of the display - Fig. 9 To activate this function, press UP and DOWN keys simultaneously while the display is in the rest mode. This status will be memorised and Setting the projector starting address maintained even for the next time it will be switched on. To return to the initial state, repeat the operation all over again. On each projector, the starting address must be set for the control signal (addresses from 1 to 512).

  • Page 7: Maintenance And Caution

    It is recommended that the projector undergoes an annual service by a qualified technician for special maintenance involving at least the following operations: - General cleaning of internal parts. - Restoring lubrication of all parts subject to friction, using lubricants specifically supplied by Claypaky. - General visual check of the internal components, cabling, mechanical parts, etc. Cleaning the lenses - Electrical, photometric and functional checks;...

  • Page 8: Battery Removal

    4.2 Battery removal Battery removal - Fig. 11 This product contains a rechargeable battery. To preserve the environment, please dispose the battery at the end of its life according to the regulation in force. HY B EYE K25 TEATRO...

  • Page 9: 4.3 Opening The Covers

    4.3 Opening the covers Opening the covers - Fig. 12 HY B EYE K25 TEATRO...

  • Page 10: Specifications

    5. SPECIFICATIONS HY B-EYE K25 (11.85") Zoom OUT (9.89") (13.27") Zoom IN (19.21") (18.98") (23.23") (12.95") (15.24") POWER SUPPLIES BODY WORKING POSITION 100-240V 50/60Hz • Aluminum structure with die-cast plastic cover • Working in any position. INPUT POWER • Two side handles for transportation •...

  • Page 11: Cause And Solution Of Problems

    6. CAUSE AND SOLUTION OF PROBLEMS THE PROJECTOR WILL NOT SWITCH ON ELECTRONICS NON-OPERATIONAL PROBLEMS DEFECTIVE PROJECTION REDUCED LUMINOSITY POSSIBLE CAUSES CHECKS AND REMEDIES No mains supply. Check the power supply voltage. LED exhausted or defective. Call an authorised technician. Signal transmission cable faulty or disconnected.
