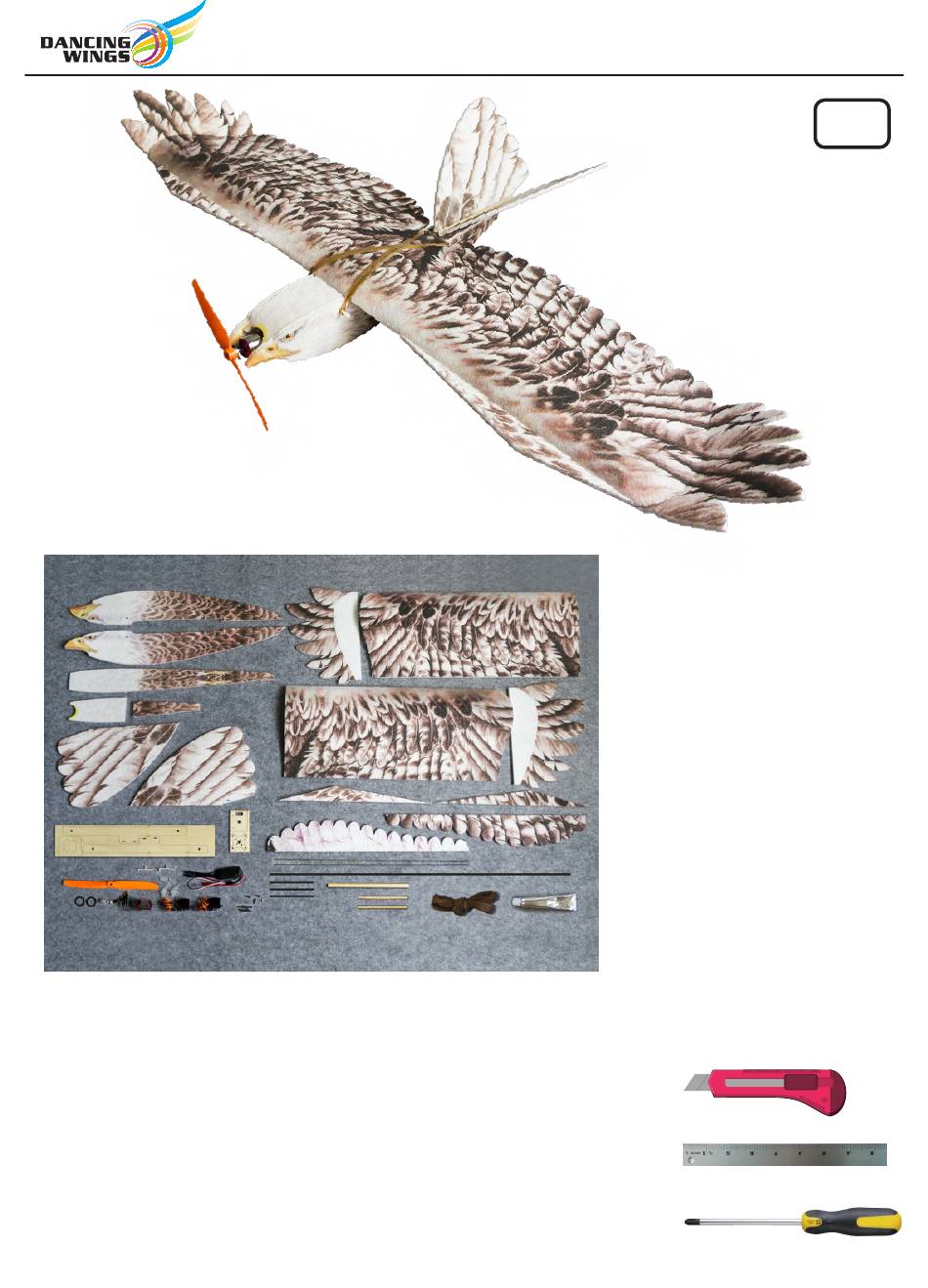

DW MINI EAGLE INSTRUCTION MANUAL
Dancing Wings
EAGLE
MINI
A
C1
C2
C3
D
E
F
I
H
G
K
L
J
Wingspan: 1200mm
Speci�ication
Length: 650mm
Flying Weight≈450g
B2
B1
B3
B4
M
N
O
K2
P
Battery: 3s 800-1500mAh
Suggested Equipment
Motor: 2212 1100kv
Propeller: 8040
ESC: 20A
Servos: 9g*2
Radio≥3CH
R
Q
1
STANDARD SETUP
A Fuselage parts
B1 B2 Wing parts
C1 C2 C3 Fuselage parts
D Tail parts
E inter structure board of the fuselage
F Motor mount
G propeller
H Plastic clips; Servo horns
I ESC
J prop saver
K1 K2 Motor; set screw
L Servo
M Steel wire pushrod
N Carbon sheet
O Triangle wood
P Wood bolt
Q Rubber band
R Foam glue
ps：Glue is not available for
some countries.
Preparation Tool
EPP
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Dancing Wings DW MINI EAGLE
Summary of Contents for Dancing Wings DW MINI EAGLE
- Page 1 DW MINI EAGLE INSTRUCTION MANUAL Dancing Wings EAGLE MINI STANDARD SETUP A Fuselage parts B1 B2 Wing parts C1 C2 C3 Fuselage parts D Tail parts E inter structure board of the fuselage F Motor mount G propeller H Plastic clips; Servo horns...
- Page 2 DW MINI EAGLE INSTRUCTION MANUAL How to Assemble 04 Assemble the fuselage structure reinforcement from E boards as picture below. 01 Apply the foam glue to the side of the wing,glue the wings together when the glue is damp-dry,and cut off the spare parts from the B1.
- Page 3 DW MINI EAGLE INSTRUCTION MANUAL 09 Assemble and glue the motor mount at the head of 12 Connect the other end of the pushrod with the servo the fuselage. arm. 13 Assemble the ESC inside the fuselage,connect with 10 Assemble and fix the motor mount at the bottom of the motor,finally assemble and adjust the electronics.
- Page 4 DW MINI EAGLE INSTRUCTION MANUAL 15 Adjust the C.G. of the plane and test flying. 70mm...
