EPP
DW PTERODACTYL
biomimetic aircrafts
Accessories include
A
C1
B
C2
E
K1
I
F
J
G
H
Wingspan: 1600mm
Speci ication
Length: 860mm
Flying Weight≈720g
Battery: 3s 2200mAh
Suggested Equipment
Motor: 1908 2050kv*2
Propeller: 7035+7035R
ESC: 20A*2
Servos: 9g*4
Radio≥4CH

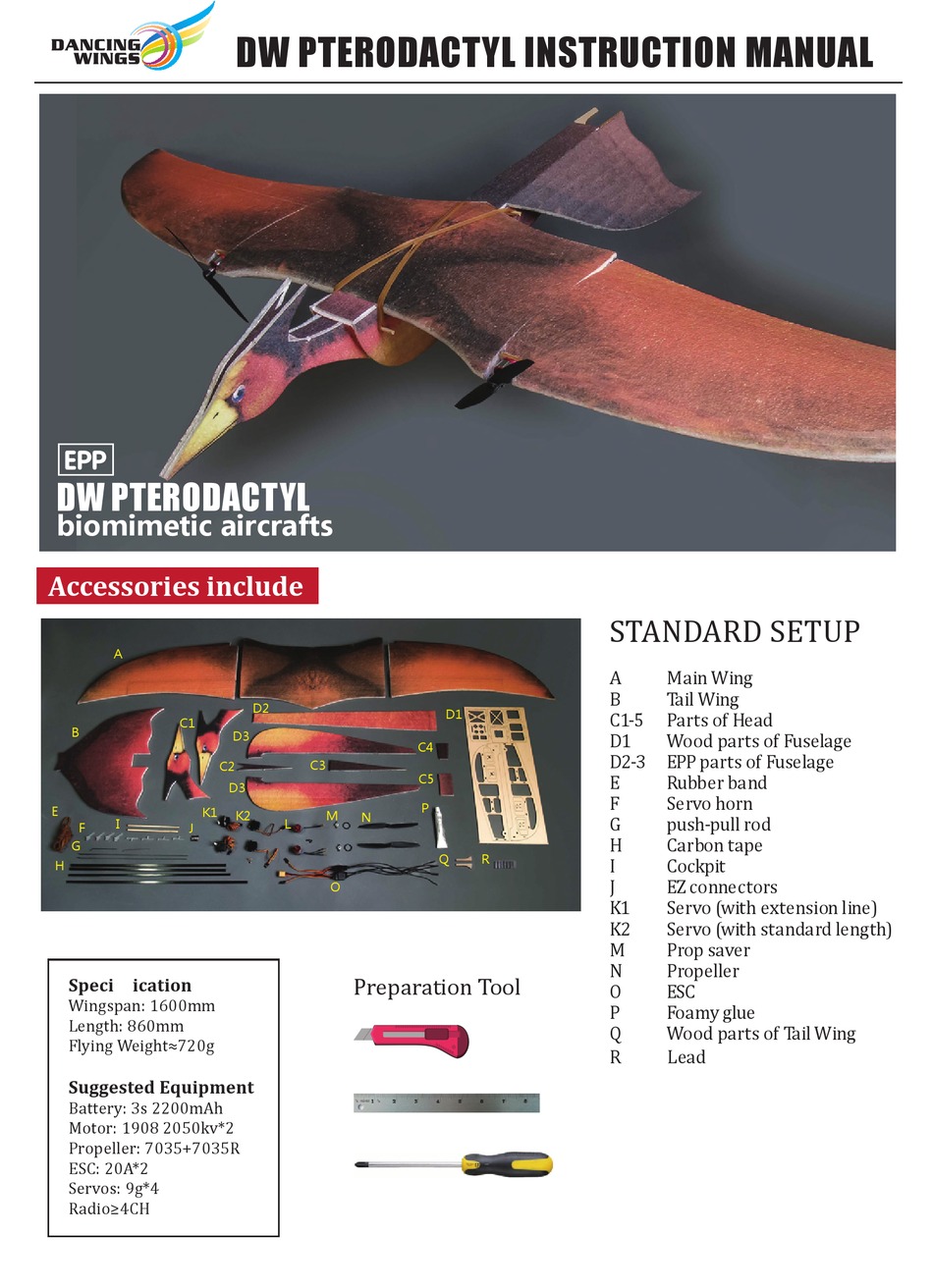

DW PTERODACTYL INSTRUCTION MANUAL
D2
D3
C3
D3
K2
M
N
L
O
Preparation Tool
D1
C4
C5
P
Q
R
STANDARD SETUP
A
Main Wing
B
Tail Wing
C1-5
Parts of Head
D1
Wood parts of Fuselage
D2-3
EPP parts of Fuselage
E
Rubber band
F
Servo horn
G
push-pull rod
H
Carbon tape
I
Cockpit
J
EZ connectors
K1
Servo (with extension line)
K2
Servo (with standard length)
M
Prop saver
N
Propeller
O
ESC
P
Foamy glue
Q
Wood parts of Tail Wing
R
Lead
Advertisement
Table of Contents
Related Manuals for Dancing Wings DW PTERODACTYL
Summary of Contents for Dancing Wings DW PTERODACTYL
- Page 1 DW PTERODACTYL INSTRUCTION MANUAL DW PTERODACTYL biomimetic aircrafts STANDARD SETUP Accessories include Main Wing Tail Wing C1-5 Parts of Head Wood parts of Fuselage D2-3 EPP parts of Fuselage Rubber band Servo horn push-pull rod Carbon tape Cockpit EZ connectors...
- Page 2 DW PTERODACTYL INSTRUCTION MANUAL Pic.5 How to Assemble 0.01Assemble and glue together the wood parts marked in number shown.(Pic. 1-3)wing. Pic.1 Motor mount 0.03 Assemble and paste the V-shape tail wing with foamy glue.(Pic. 6-7) Pic.6 Pic.2 Pic.7 Pic.3 0.04 Glue the small wood parts at the aileron of the 0.02 Paste the epp board on both sides of the...
- Page 3 DW PTERODACTYL INSTRUCTION MANUAL 0.05 Assemble and glue together the head part, Pic.13 which should glue onto the fuselage (Pic. 9-10) Pic.9 Pic.14 Pic.10 Pic.15 0.06 Assemble the two servos with standard length 0.08 Glue together the three pieces of main wings, inside the fuselage and secured by a screw.
- Page 4 DW PTERODACTYL INSTRUCTION MANUAL 0.09 Install the servo (with extension line) at Pic.23 reserved position; insert the servo wires into slot and through to the middle position of main wing, and secured by glue.(Pic. 19) Pic.19 0.13 Glue the motors into the slots on the leading edge and connect with ESC.(Pic.
