DW OLD FOGEY INSTALLATION INSTRUCTIONS
Accessories include
Preparation Tool
Specification
Suggested Equipment
Wingspan: 1150mm
Battery：3s 1500-2200mAh
Length: 720mm
Motor：2830 1150KV
Flying Weight≈780g
Propeller:9-10inch
ESC: 20A
Servos：9g*4
Radio≥4CH
OLD FOGEY
Trainer airplane for out-door ying
Fuselage
A
Horizontal Tail
B
C
Wing
D
Propeller
Bolt
E
Y-wire
F
G
Rubber band
H
Prop Adapter
ESC
I
Motor
J
J1
Screws
K
Foam glue
EPP
Servo
L
M
Back landing gear pieces
N
Back landing gear wheels
Servo horns
O
Servo connecting rod (short)
P
Q
Servo connecting rod (long)
R
Landing gear rod
Rubber tube for wheel fixation
S
Wing Fiberglass Reinforcement
T
U
Front landing gear wheels
W
Vertical Tail
Hinge
X
Advertisement
Related Manuals for Dancing Wings OLD FOGEY
Summary of Contents for Dancing Wings OLD FOGEY

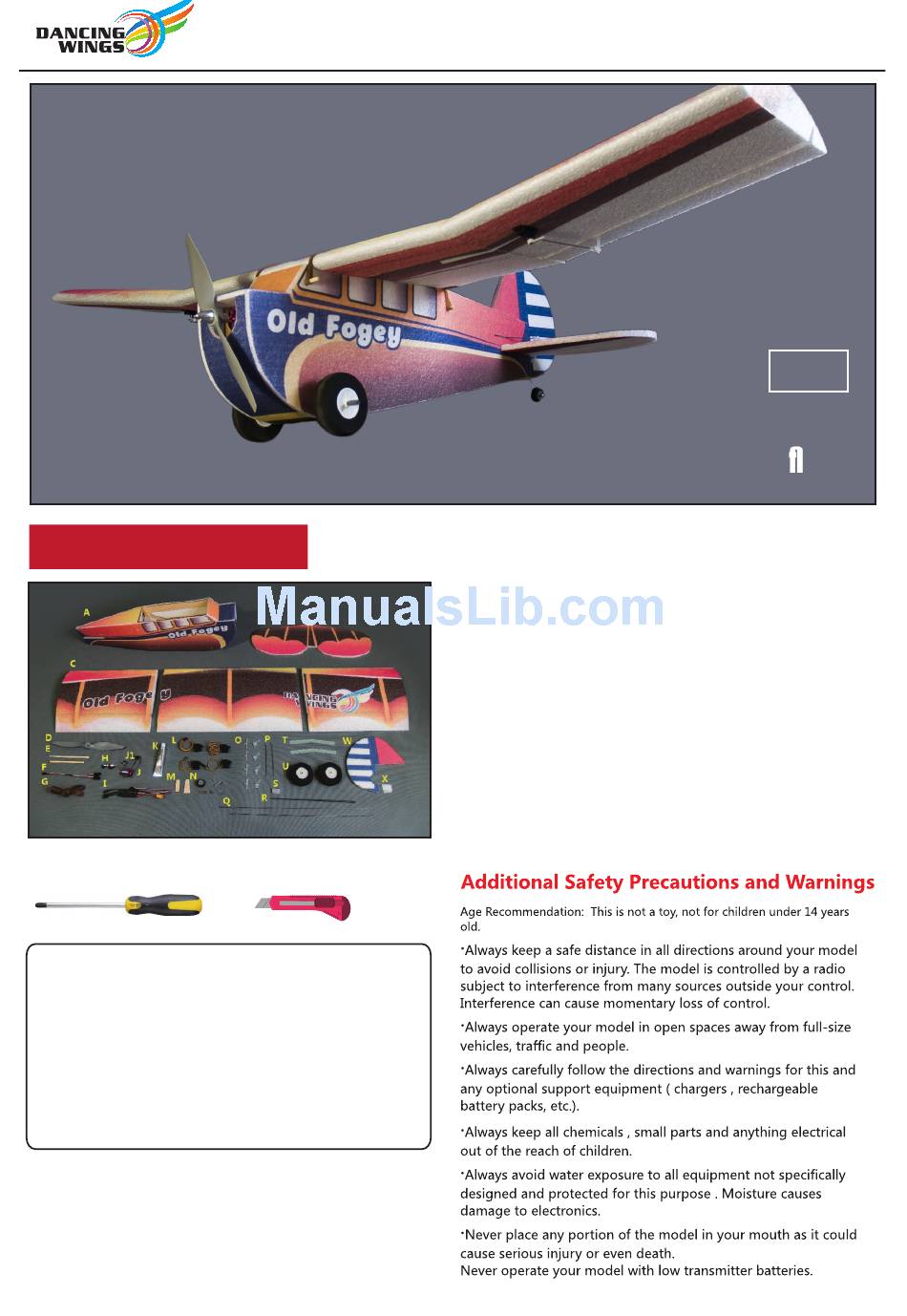

- Page 1 DW OLD FOGEY INSTALLATION INSTRUCTIONS OLD FOGEY Trainer airplane for out-door ying Accessories include Fuselage Servo Horizontal Tail Back landing gear pieces Wing Back landing gear wheels Propeller Servo horns Bolt Servo connecting rod (short) Y-wire Servo connecting rod (long)
- Page 2 DW OLD FOGEY INSTALLATION INSTRUCTIONS How to Assemble 0.01 Apply the glue on the side of the wing, and join together, and then insert the fiberglass rein- forcement into the slot on wing. 0.04 Make a cut by knife in an upright position with servo, insert the hinges and fix by glue.
- Page 3 DW OLD FOGEY INSTALLATION INSTRUCTIONS 0.09 Insert the servo steel wires into the slot on the fuselage, one at either side of the fuselage. Confirm the position of the steel wire comes out, make cuts on the horizontal and vertical wing by knife, insert the servo horns and fix by glue.
- Page 4 DW OLD FOGEY INSTALLATION INSTRUCTIONS 0.12 Insert the motor wires into the holes reserved for motors, and then fix with screws on the head 0.15 Put the battery and receiver into the fuselage, Screws adjust the plane CG, then start your first test flight.
