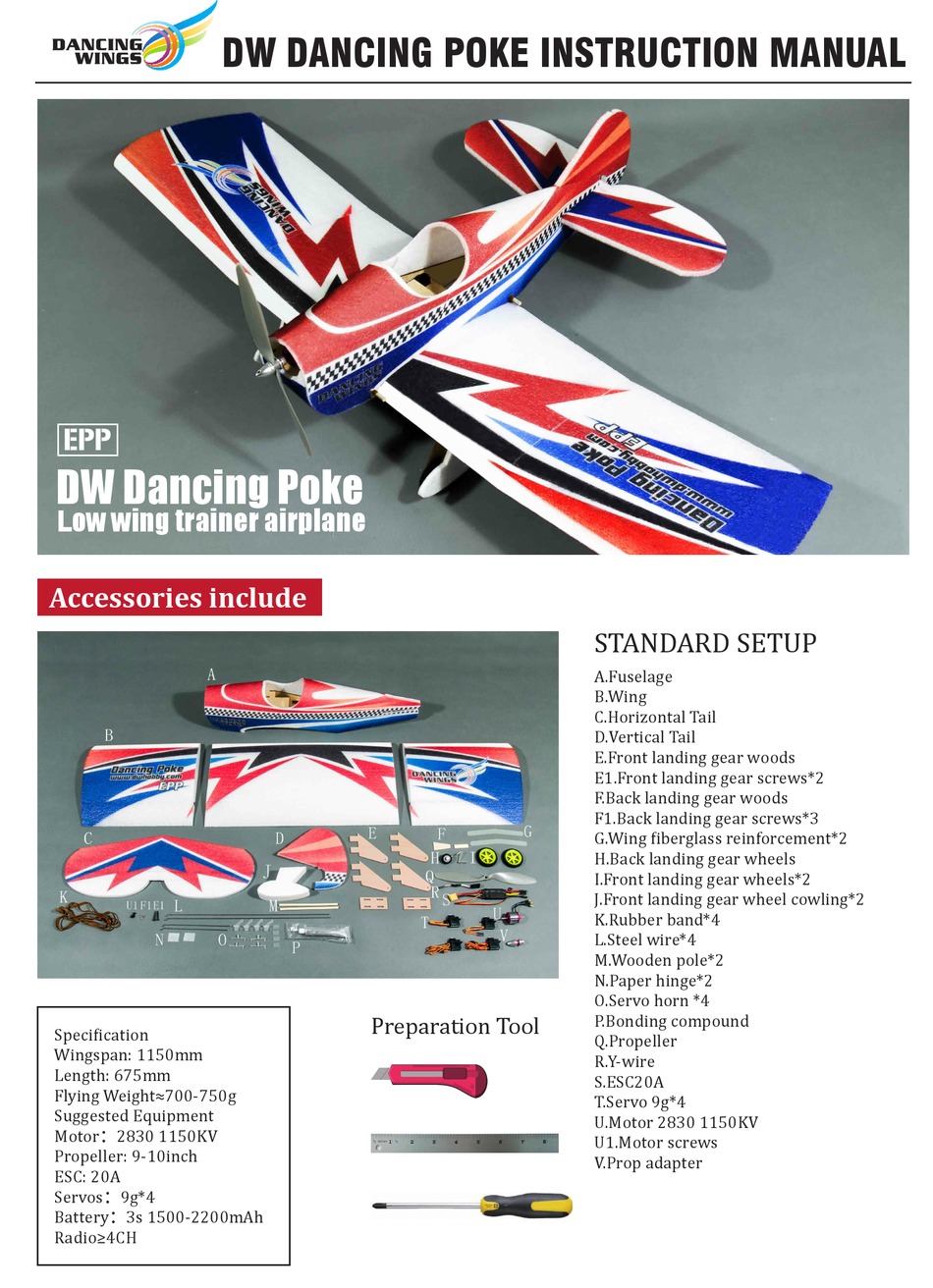

DW DANCING POKE INSTRUCTION MANUAL
EPP
DW Dancing Poke
Low wing trainer airplane
Accessories include
Speci�ication
Wingspan: 1150mm
Length: 675mm
Flying Weight≈700-750g
Suggested Equipment
Motor：2830 1150KV
Propeller: 9-10inch
ESC: 20A
Servos：9g*4
Battery：3s 1500-2200mAh
Radio≥4CH
Preparation Tool
STANDARD SETUP
A.Fuselage
B.Wing
C.Horizontal Tail
D.Vertical Tail
E.Front landing gear woods
E1.Front landing gear screws*2
F.Back landing gear woods
F1.Back landing gear screws*3
G.Wing �iberglass reinforcement*2
H.Back landing gear wheels
I.Front landing gear wheels*2
J.Front landing gear wheel cowling*2
K.Rubber band*4
L.Steel wire*4
M.Wooden pole*2
N.Paper hinge*2
O.Servo horn *4
P.Bonding compound
Q.Propeller
R.Y-wire
S.ESC20A
T.Servo 9g*4
U.Motor 2830 1150KV
U1.Motor screws
V.Prop adapter
