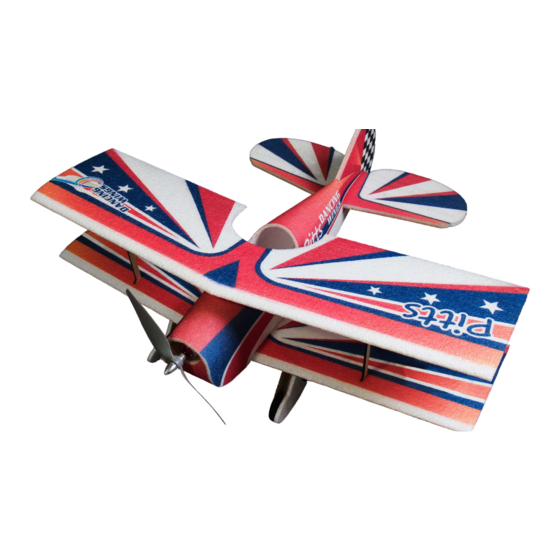

Dancing Wings DW DANCING PITTS Instruction Manual

Biplane trainer airplane
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual

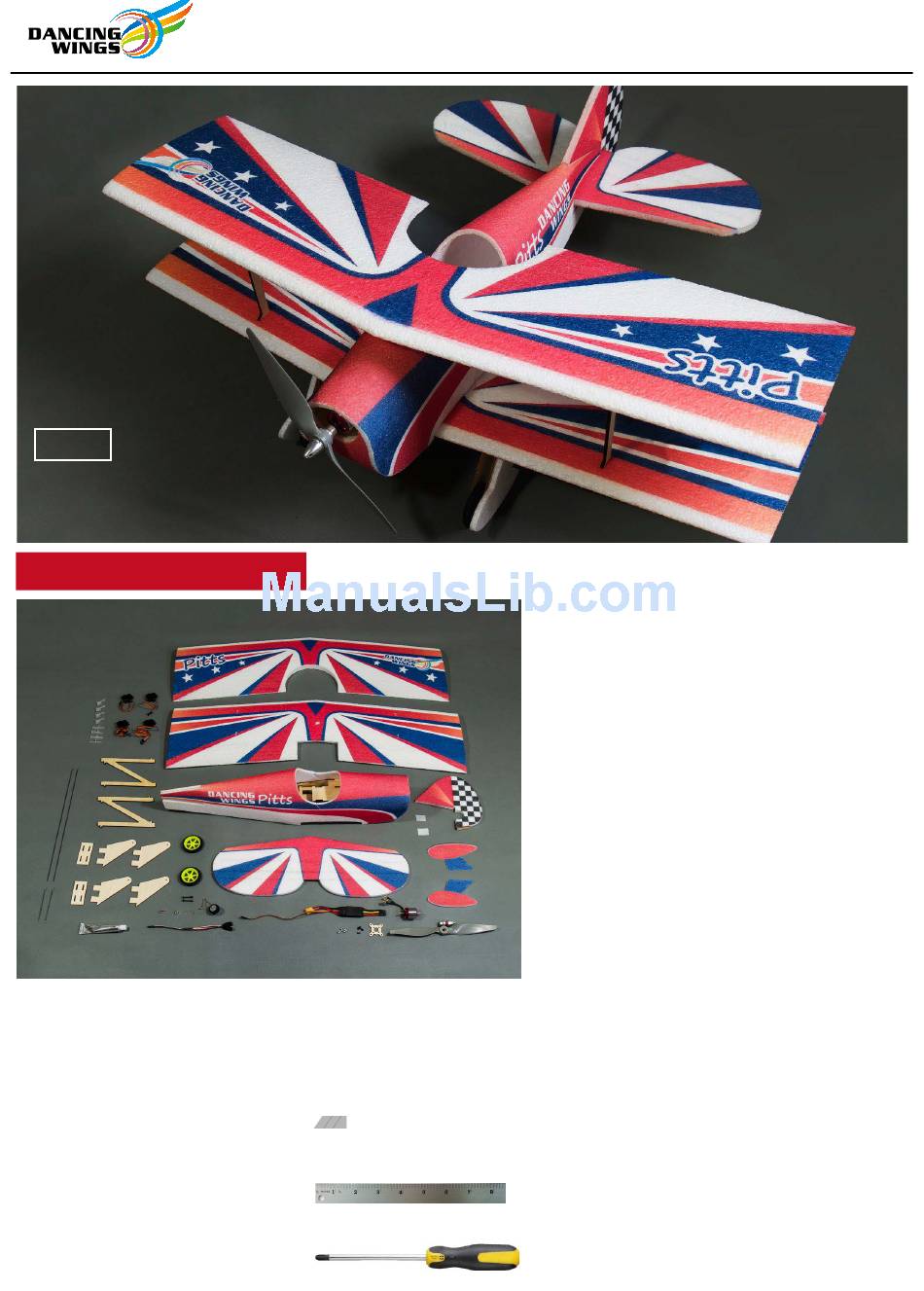

DW DANCING PITTS INSTRUCTION MANUAL
DW DANCING PITTS INSTRUCTION MANUAL
EPP
DW DANCING PITTS
Biplane trainer airplane
Accessories include
H
I
J
K
N
L
N1
P
M
Specification
Wingspan: 850mm
Length: 680mm
Flying Weight≈700g
Suggested Equipment
Battery:3s 1500-2200mAh
Motor:2830 1050KV
Propeller:9-10inch
ESC: 20A
Servo:9g*4
Radio≥4CH
A
B
C
E
O
Q
S
S1 S2
Preparation Tool
A.Up wing
B.Down wing
C.Fuselage
D.Fin
E.Rudder
F.Paper hinges
G.Cover for landing gear
H.ServPreparation Toolo
I.Servo horns
D
J.Wooden connecting pieces for wing top & bottom
K.Steel wire
F
L.Wooden pieces of landing gear
G
M.Glue
N.Wheel of nose landing gear
N1.Screw for nose landing gear
R
U
O.Wheel of back landing gear
T
P.Y wire
Q.20A speed controller
R.motor
S.Wooden pieces for motor mount
S1.Self-tapping screw for motor mount
S2.Fixed screw for motor
T.Propeller
U.Prop adapter
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DW DANCING PITTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dancing Wings DW DANCING PITTS

Summary of Contents for Dancing Wings DW DANCING PITTS

  • Page 1 DW DANCING PITTS INSTRUCTION MANUAL DW DANCING PITTS INSTRUCTION MANUAL DW DANCING PITTS Biplane trainer airplane Accessories include A.Up wing B.Down wing C.Fuselage D.Fin E.Rudder F.Paper hinges G.Cover for landing gear H.ServPreparation Toolo I.Servo horns J.Wooden connecting pieces for wing top & bottom K.Steel wire...
  • Page 2 DW DANCING PITTS INSTRUCTION MANUAL Body Installation Steps All parts Step 5 w1 w2 Step 6 Step 1 Step 2 Step 7 Step 3 Step 8 complete Step 4...

  • Page 3: How To Assemble

    DW DANCING PITTS INSTRUCTION MANUAL How to Assemble 0.01 Install the servo with short wire inside the 0.02 Install the rudder arm of servo, and let the long servo to connect steel wire which need to through out from the bilateral reserved hole.
  • Page 4 DW DANCING PITTS INSTRUCTION MANUAL 0.06 Contrast the position of the back landing 0.09 Put the speed controller part into the head of gear’s screw holes, make the holes of tail wooden pieces, install the back landing gear. it with S1 screw.
  • Page 5 DW DANCING PITTS INSTRUCTION MANUAL 0.15 Apply the glue evenly over the joint of the fuselage and wing, keep the down wing parallel with fuselage, then glue together. adjust it to keep level with the fuselage, and glue it with fuselage. Plug the rudder and fuselage into 0.16 Insert the wooden connecting pieces for wing...
