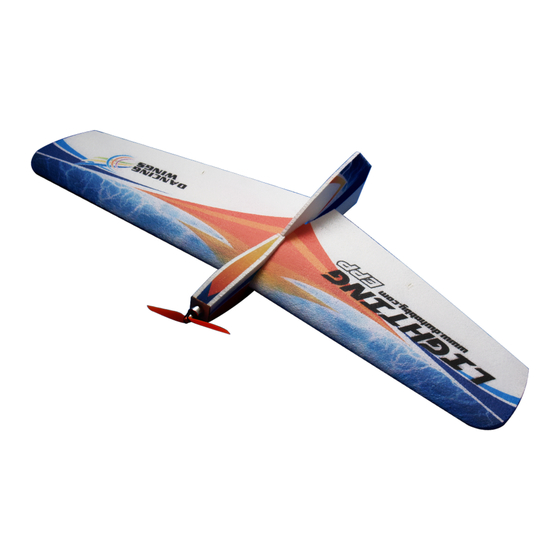

EPP
Accessories include
A
Speci�ication
Wingspan: 1060mm
Length: 550mm
Flying Weight≈260-280g
Battery: 2s 800mAh
Suggested Equipment
Motor: 1908 2050kv
Propeller: 7*3.5
ESC: 10A
Servos: 9g*2
Radio≥3CH
DW LIGHTING INSTRUCTION MANUAL
A
B1
B2
E
F
Preparation Tool
D
C
H
I
G
J
L
K
N
M
STANDARD SETUP
A. Wing
B1.B2. Wing Reinforcement carbon sheet
C. Fuselage
D. Tail
E. Push rod*2
F. Motor holder
G. Fuselage
H. Servo horn.Clip*2
I.Prop saver
J. Propeller
K. ESC
L. Motor
M. Foam glue
N. Servo*2
Advertisement
Table of Contents
Related Manuals for Dancing Wings LIGHTING EPP
Summary of Contents for Dancing Wings LIGHTING EPP
- Page 1 DW LIGHTING INSTRUCTION MANUAL Accessories include STANDARD SETUP A. Wing B1.B2. Wing Reinforcement carbon sheet C. Fuselage D. Tail E. Push rod*2 F. Motor holder G. Fuselage H. Servo horn.Clip*2 I.Prop saver J. Propeller K. ESC L. Motor M. Foam glue N.
- Page 2 DW LIGHTING INSTRUCTION MANUAL How to Assemble 0.04 Put the ESC (K) inside the cabin,connect it with motor. 0.01 Apply the foam glue on the edge of the G,and paste together the C & G into the fuselage as per the picture shown below.
- Page 3 DW LIGHTING INSTRUCTION MANUAL 0.10 Glue together the wing and fuselage togeth- er,and put the servo wire inside the cabin. 0.08 Compare the length of the servo pushrod wire,confirm the servo horn position, and insert the horn into the wing. 0.11 Paste and glue the vertical tail,keep on the same line with fuselage.
- Page 4 DW LIGHTING INSTRUCTION MANUAL Assemble the battery and receiver,adjust the C.G.,then you could test flying. 50mm...
