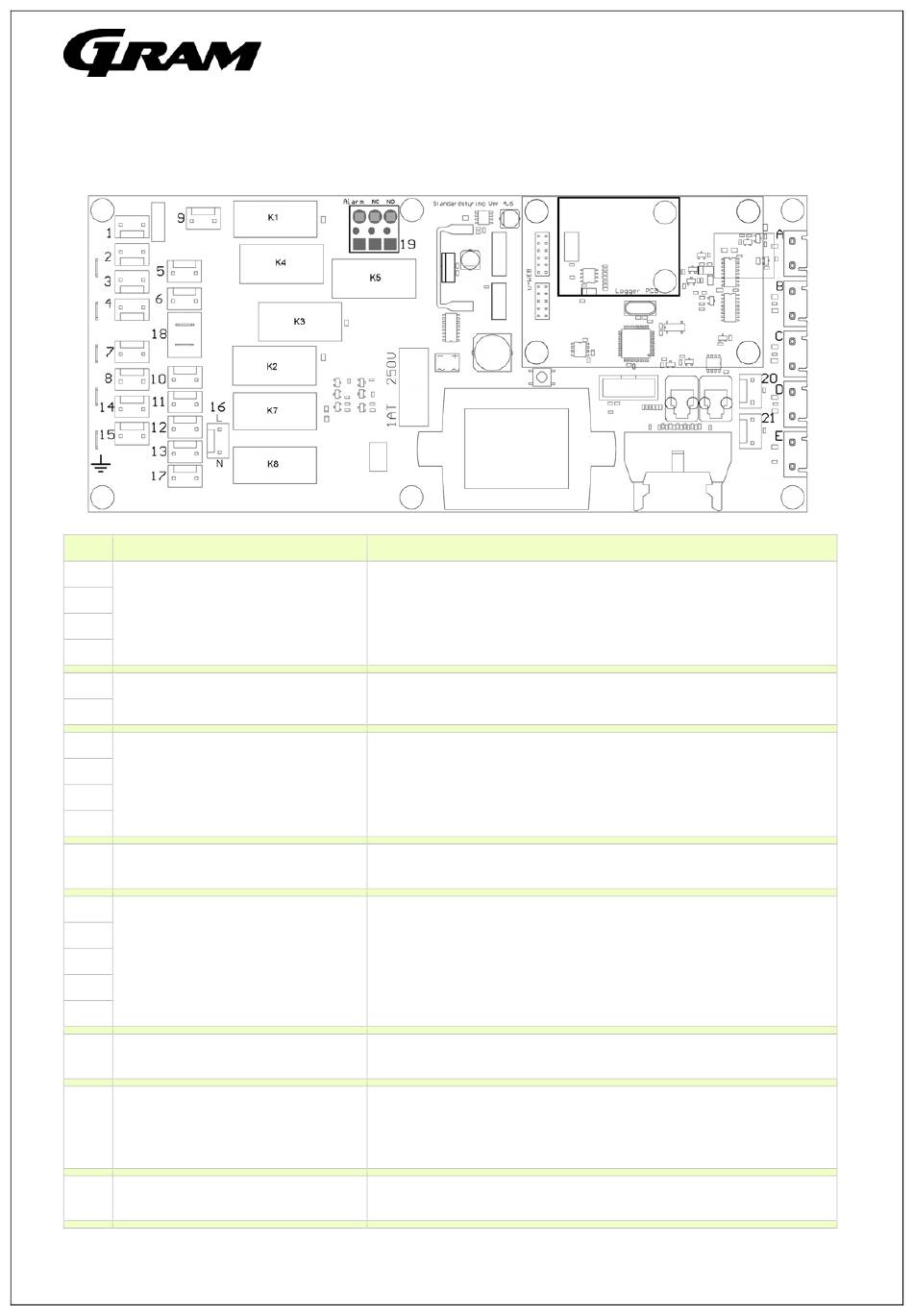

Plug connections onboard the controller

The description here below explains the plugs or terminals to each special function and relay.
Plug Electrical component
1
230 Volt relay – K1
2
3
4
5
230 Volt relay – K3
6
7
230 Volt relay – K2
8
14
15
9
230 Volt relay – K4
10
230 Volt relay – K7 and K8
11
12
13
17
18
Plug connection for the safety
thermostat
19
230 Volt relay – K5
16
230 Volt input
- 8 -
Description
The relay supplies the compressor and the condenser fan with
power.
The relay supplies the evaporator fan with power.
The relay supplies the defrosting heating element and the drip
water heating element with power
The relay supplies the halogen light transformer with power
(230V/12V).
The relay supplies the front frame heater, re-evaporating
heating element, and the condensing pump with power. When
the cabinet is switched on, the power is constantly viable.
The plug is connected in series with the defrosting heating
element.
The potential free alarm relay.
The relay changes position when the cabinet switches the
power on. By alarms and by power failure the relay switches
back to normal position.
These terminals are the power input connection with 230 V to
the controller.
