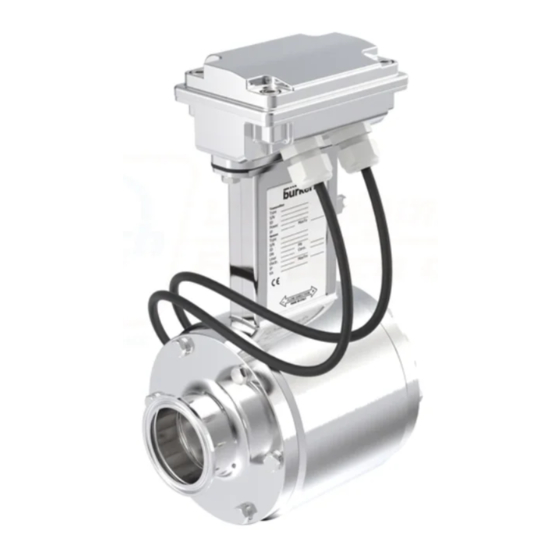

- Page 1 Typ FULLBORE S056 SENSORS Installation manual...
- Page 2 FULLBORE S056 Ausführliche Informationen finden Sie in der Bedienungsanleitung unter der Internetadresse: country.burkert.com > S056 oder scannen Sie folgenden QR-Code ein: Detailed information can be found in the operating instructions at the Internet address: country.burkert.com > S056 scan the following QR code: Vous trouverez des informations détaillées dans le mode d'emploi...
- Page 3 FULLBORE S056 INDEX INTRODUCTION START UP AND MAINTENANCE OF THE INSTRUMENTS SAFETY GENERAL INFORMATION ON THE SENSORS INSTALLATION ELECTRICAL CONNECTIONS OF SENSOR TO TRANSMITTER GROUNDING INSTRUCTIONS OVERALL DIMENSIONS FOR DN 3 ÷ 20 OVERALL DIMENSIONS FOR DN 25 ÷ 100 INSPECTION SCREW (VALID ONLY FOR DN 3-20) SENSOR SELF-DRAINING English...
- Page 4 FULLBORE S056 INTRODUCTION • This manual is integral part of the product. Read carefully the instructions contained since it contains important indications for the safety of use and of maintenance. • The technical information and the relative products of this manual could be modified without any previous notice.
- Page 5 FULLBORE S056 SAFETY Before using the instrument, always make a secure connection to the ground Avoid any attempt to repair the instrument. If the instrument is not functioning properly, please call the nearest assistance service Pay maximum attention during the operations ATTENTION !! DANGER !!! English...
-
Page 6: Flow Direction
FULLBORE S056 GENERAL INFORMATION ON THE SENSORS INSTALLATION The manufacturer recommends cleaning the instruments before use. Flow direction Before install the sensor locate the direction of the liquid in the piping The sign of the flow rate is positive, when the flow direction is from – to + as printed on the tag plate. If after the installation, for plant request becomes necessary reverse the sign of the flow, it is enough reverse the sign of the coefficient KA In vertical installations an ascending flow is preferable. -
Page 7: Grounding Instructions
FULLBORE S056 ELECTRICAL CONNECTIONS OF SENSOR TO TRANSMITTER (Connections to transmitter: see related manual) GROUNDING INSTRUCTIONS For correct operation of the meter, it is NECESSARY that the sensor and the liquid are equipotential, so ALWAYS connect the sensor and converter to ground: English... -
Page 8: Threaded Connections
FULLBORE S056 OVERALL DIMENSIONS FOR DN 3 ÷ 20 Threaded Connections FITTINGS / THREAD FITTINGS / THREAD DIN 11851 SMS 1146 DIMENSIONS DIMENSIONI (1/8”) (1/4) (3/8) (1/2”) (3/4”) (3/8) (1/2”) (3/4”) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (5.04) (5.04) (5.04) -
Page 9: Clamp Connections
FULLBORE S056 Clamp connections I ( Ø INTERNAL FITTING ) FITTINGS FITTINGS CLAMP ISO 2852 CLAMP BS 4825 Part 3 DIMENSIONS DIMENSIONS (1/8”) (1/4) (3/8) (1/2”) (3/4”) (1/8”) (1/4) (3/8) (1/2”) (3/4”) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) (3.03) - Page 10 FULLBORE S056 OVERALL DIMENSIONS FOR DN 25 ÷ 100 Threaded Connections 100.0 Fittings Fittings DIN 1851 DIMENSIONS mm (inches) (1”) (1” 1/4”) (1” 1/2”) (2”) (2” 1/2”) (3”) (4”) CONNECTIONS SMS 1146 DIMENSIONS mm (inches) (1”) (1” 1/2”) (2”) (2”...
- Page 11 FULLBORE S056 Clamp connections I (Ø internal fittings) 100.0 Fittings Fittings CLAMP ISO2852 DIMENSIONS mm (inches) (1”) (1” 1/2”) (2”) (2” 1/2”) (3”) (4”) 22.6 35.6 48.6 60.3 72.9 97.6 50.5 77.5 CLAMP BS4825 PART3 DIMENSIONS mm (inches) (1”) (1”...
- Page 12 FULLBORE S056 Welded connections E (Ø external fittings) I (Ø internal fittings) 100.0 Fittings Fittings DIN11850 RANGE 2 DIMENSIONS (1”) (1” 1/4”) (1” 1/2”) (2”) (2” 1/2”) (3”) (4”) mm (inches) 29.0 35.0 41.0 53.0 70.0 85.0 104.0 26.0 32.0 38.0 50.0...
- Page 13 FULLBORE S056 INSPECTION SCREW (VALID ONLY FOR DN 3-20) Verify periodically the sensor’s seals integrity: with piping full of liquid, unscrew the Inspection screws (see drawing aside) and verify the total absence of liquid from inspection hole! After the above operation, REMEMBER to close again the holes.
- Page 14 FULLBORE S056 At the end of its useful life, this product must be disposed of in full compliance with the environmental regulations of the country in which it is located. English...
- Page 15 FULLBORE S056 REVIEW DATE DESCRIPTION GRAPHIC UPDATE AND CONTENT MAN_S056_EN_BU_R02 23/03/2021 CORRECTIONS English...
- Page 16 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert SAS, 2020...
