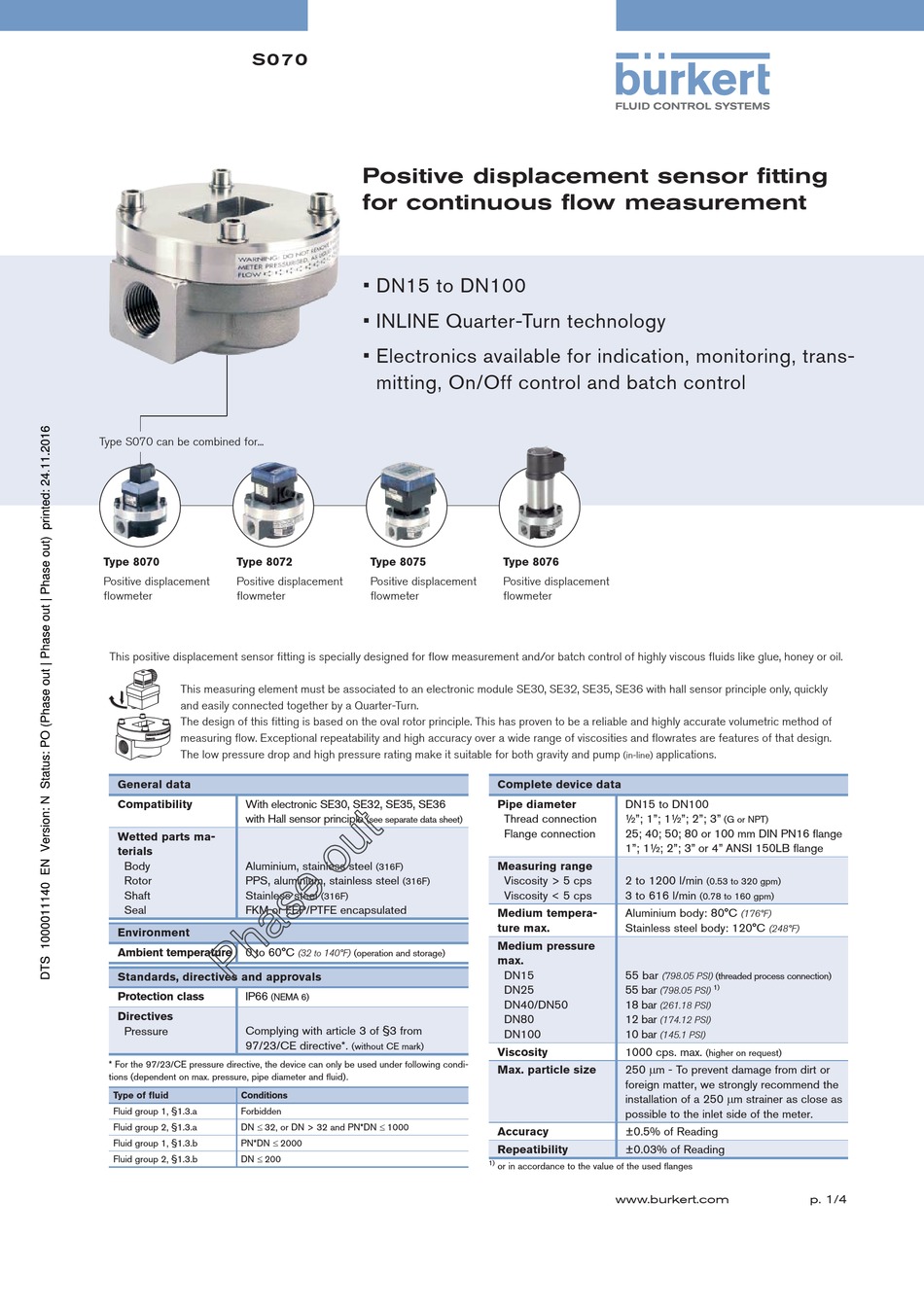

S070
Type S070 can be combined for...
Type 8070 Type 8072
Positive displacement Positive displacement
flowmeter flowmeter
This positive displacement sensor fitting is specially designed for flow measurement and/or batch control of highly viscous fluids like glue, honey or oil.
This measuring element must be associated to an electronic module SE30, SE32, SE35, SE36 with hall sensor principle only, quickly
and easily connected together by a Quarter-Turn.
The design of this fitting is based on the oval rotor principle. This has proven to be a reliable and highly accurate volumetric method of
measuring flow. Exceptional repeatability and high accuracy over a wide range of viscosities and flowrates are features of that design.
The low pressure drop and high pressure rating make it suitable for both gravity and pump

General data

Compatibility

With electronic SE30, SE32, SE35, SE36
with Hall sensor principle
Wetted parts ma-
terials
Body Aluminium, stainless steel
Rotor PPS, aluminium, stainless steel
Shaft Stainless steel
Seal FKM or FEP/PTFE encapsulated

Environment

Ambient temperature 0 to 60°C

Standards, directives and approvals

Protection class IP66
(NEMA 6)
Directives
Pressure Complying with article 3 of §3 from
97/23/CE directive*.
* For the 97/23/CE pressure directive, the device can only be used under following condi-
tions (dependent on max. pressure, pipe diameter and fluid).
Type of fluid Conditions
Fluid group 1, §1.3.a Forbidden
DN 32, or DN > 32 and PN*DN 1000
Fluid group 2, §1.3.a
PN*DN 2000
Fluid group 1, §1.3.b
DN 200
Fluid group 2, §1.3.b

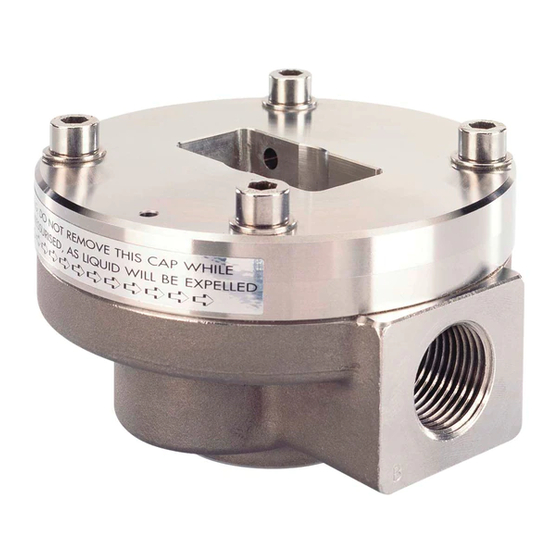

Positive displacement sensor fitting
for continuous flow measurement
• DN15 to DN100
• INLINE Quarter-Turn technology
• Electronics available for indication, monitoring, trans-
mitting, On/Off control and batch control
Type 8075
Positive displacement
flowmeter
(see separate data sheet)
(316F)
(316F)
(316F)
(32 to 140°F) (operation and storage)
(without CE mark)
Type 8076
Positive displacement
flowmeter
applications.
(in-line)
Complete device data
Pipe diameter DN15 to DN100
Thread connection ½"; 1"; 1½"; 2"; 3"
Flange connection 25; 40; 50; 80 or 100 mm DIN PN16 flange
1"; 1½; 2"; 3" or 4" ANSI 150LB flange
Measuring range
Viscosity > 5 cps 2 to 1200 l/min
Viscosity < 5 cps 3 to 616 l/min
Medium tempera- Aluminium body: 80°C
ture max. Stainless steel body: 120°C
Medium pressure
max.
DN15 55 bar
(798.05 PSI) (threaded process connection)
DN25 55 bar
(798.05 PSI)
DN40/DN50 18 bar
(261.18 PSI)
DN80 12 bar
(174.12 PSI)
DN100 10 bar
(145.1 PSI)
Viscosity 1000 cps. max.
250 m - To prevent damage from dirt or
Max. particle size
foreign matter, we strongly recommend the
installation of a 250 m strainer as close as
possible to the inlet side of the meter.
Accuracy ±0.5% of Reading
Repeatibility ±0.03% of Reading
1)
or in accordance to the value of the used flanges
www.burkert.com
(G or NPT)
(0.53 to 320 gpm)
(0.78 to 160 gpm)
(176°F)
(248°F)
1)
(higher on request)
p. 1/4
