Summary of Contents for Burkert FULLBORE S055

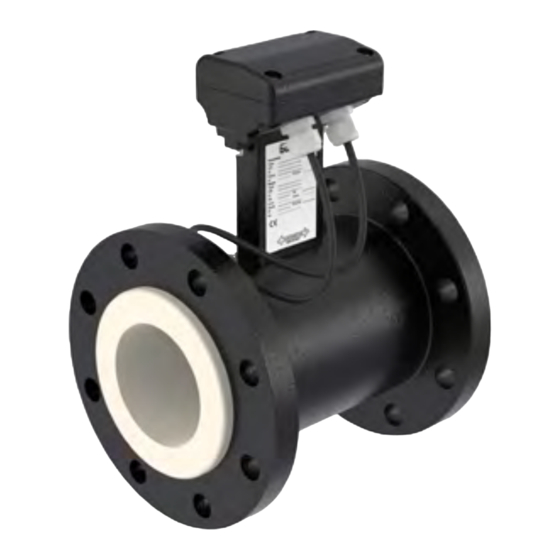

- Page 1 Typ FULLBORE S055/S051/S054 SENSORS Installation manual...
- Page 2 FULLBORE S055 / S051 / S054 Ausführliche Informationen finden Sie in der Bedienungsanleitung unter der Internetadresse: country.burkert.com > S055_S051_S054 oder scannen Sie folgenden QR-Code ein: Detailed information can be found in the operating instructions at the Internet address: country.burkert.com > S055_S051_S054 scan the following QR code: Vous trouverez des informations détaillées dans le mode d'emploi...
- Page 3 FULLBORE S055 / S051 / S054 INDEX INTRODUCTION START UP AND MAINTENANCE OF THE INSTRUMENTS SAFETY GENERAL INFORMATION ON THE SENSORS INSTALLATION ELECTRICAL CONNECTIONS OF SENSOR TO TRANSMITTER GROUNDING INSRUCTIONS TORQUES (NM) FOR SENSOR BOLTS (FLANGED & WAFER) English...
- Page 4 FULLBORE S055 / S051 / S054 INTRODUCTION • This manual is integral part of the product. Read carefully the instructions contained since it contains important indications for the safety of use and of maintenance. • The technical information and the relative products of this manual could be modified without any previous notice.
- Page 5 FULLBORE S055 / S051 / S054 SAFETY Before using the instrument, always make a secure connection to the ground Avoid any attempt to repair the instrument. If the instrument is not functioning properly, please call the nearest assistance service Pay maximum attention during the operations ATTENTION !! DANGER !!!
- Page 6 FULLBORE S055 / S051 / S054 Installation (Method recommended for ALL THE SENSOR WITH EYEBOLT) The eye-bolt are measured to sustain exclusively the weight of the meter Centring cylinders N.B.: For sensor S054 we recommed the use of centring cylinders English...
-
Page 7: Operating Temperatures
FULLBORE S055 / S051 / S054 Shrewdness and precautions For ver�cal installa�ons with For ver�cal installa�ons is descending flow direc�on preferable an ascending flow contact the manufacturer ANTI VIBRATION JOINTS For installa�ons on long Avoid the installa�on of the pipes, please use the sensor in a long pipe, an�... - Page 8 FULLBORE S055 / S051 / S054 ELECTRICAL CONNECTIONS OF SENSOR TO TRANSMITTER (Connections to transmitter: see related manual) SENSOR’S VERSION SUITABLE FOR CONNECTION COMPACT ALL SENSORS MODEL NO CONNECTIONS NO CONNECTIONS REQUIRED SEPARATE WITHOUT STAINLESS STEEL (CABLE ALREADY JUNCTIONS-BOX MODEL CONNECTED AND POTTED)
- Page 9 FULLBORE S055 / S051 / S054 GROUNDING INSRUCTIONS For correct operation of the meter, it is NECESSARY that the sensor and the liquid are equipotential, so ALWAYS connect the sensor and converter to ground: GROUNDING WITH METALLIC PIPE Sensors with ground socket on the connection box W afer sensors Flanged sensors...
- Page 10 FULLBORE S055 / S051 / S054 TORQUES (NM) FOR SENSOR BOLTS (FLANGED & WAFER) OPERATIVE PRESSURE 1000 1600 2500 4000 6400 1000 PTFE EBON. PTFE EBON. PTFE EBON. PTFE EBON. EBON. (21) [32] [32] (26) [40] [40] (32) [63] [63] (60) [35]...
- Page 11 FULLBORE S055 / S051 / S054 1388 1603 (563) (1642) [1373] [4006] 1515 1312 [1408] [4106] (618) (1803) 2105 1000 1699 [1598] [4662] (736) (2146) • Tighten uniformly in an alternating pattern • The torque listed in tab are applicable to flanges: EN1092-1, DIN 2501, BS 4504, ANSI B16.5 , JIS •...
- Page 12 FULLBORE S055 / S051 / S054 English...
- Page 13 FULLBORE S055 / S051 / S054 At the end of its lifetime, this product shall be disposed of in full compliance with the environmental regulations of the state in which it is located. English...
- Page 14 FULLBORE S055 / S051 / S054 English...
- Page 15 FULLBORE S055 / S051 / S054 REVIEW DATE DESCRIPTION GRAPHIC UPDATE AND CONTENT MAN_FULLBORE_S055_S020_S054_EN_BU_R06 23/03/2021 CORRECTIONS English...
- Page 16 We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. © Bürkert SAS, 2020...
