We reserve the right to make technical changes without notice.
Technische Änderungen vorbehalten.
Sous réserve de modifications techniques.
www.burkert.com
© Bürkert SAS, 2010-2016
Operating Instructions 1609/03_EU-ML 00563875 ORIGINAL_FR
1. ABOUT THE OPERATING INSTRUCTIONS . ................3
2. INTENDED USE . .........................................................................5
3. BASIC SAFETY INFORMATION .........................................6
4. GENERAL INFORMATION .....................................................9
5. OPERATING PRINCIPLE ........................................................9
6. TECHNICAL DATA .................................................................. 10
7. INSTALLATION . ........................................................................ 21
8. MAINTENANCE . ....................................................................... 31
9. SPARE PARTS AND ACCESSORIES ........................... 33
10. PACKAGING, TRANSPORT ............................................... 40
11. STORAGE ................................................................................... 41
12. DISPOSAL . ................................................................................. 42
English
2

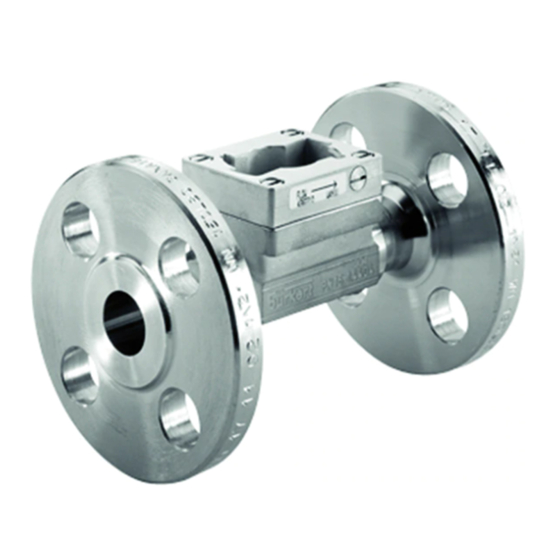

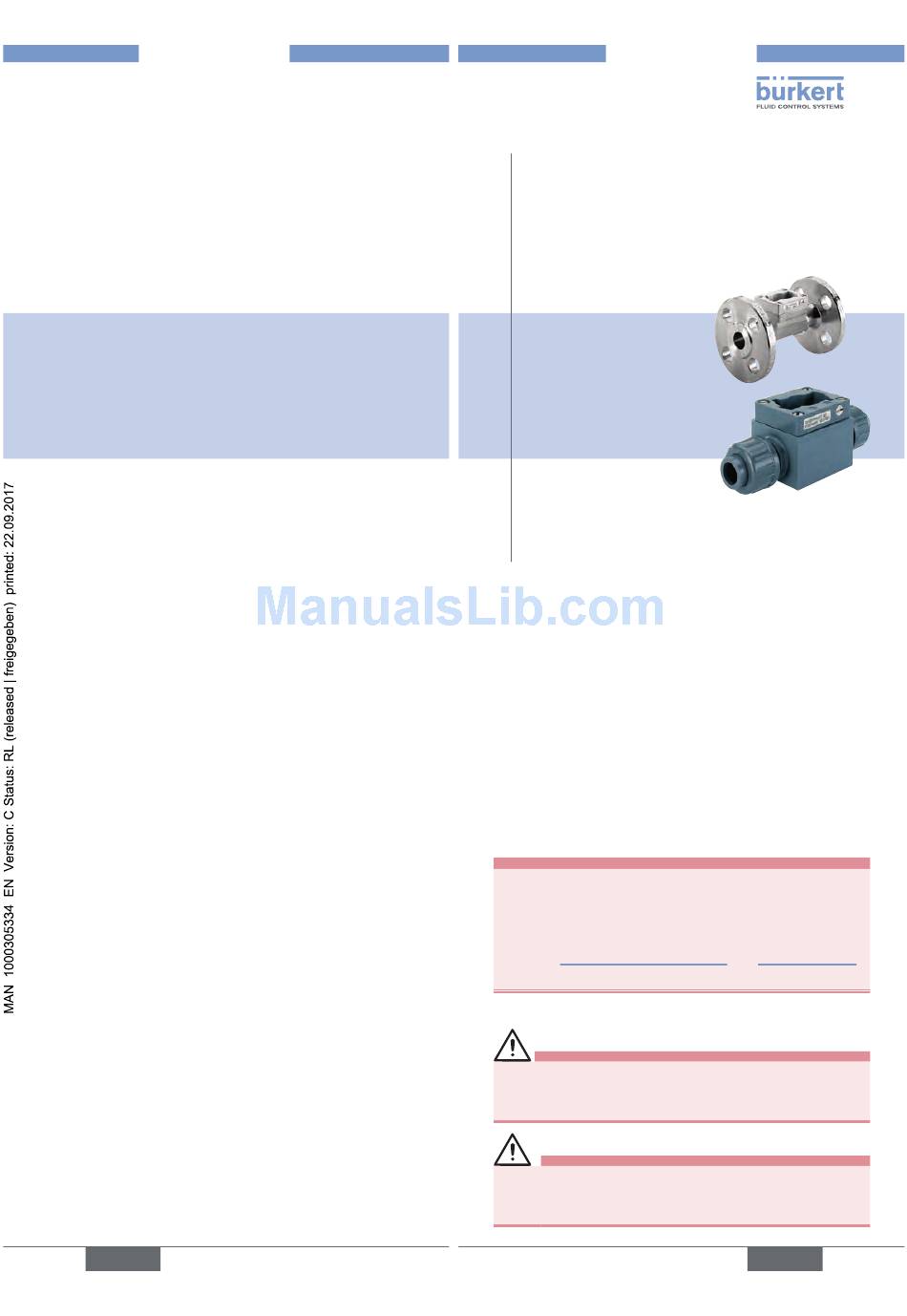

Type S030
INLINE fitting
Operating Instructions
Bedienungsanleitung
Manuel d'utilisation
1.
ABOUT THE OPERATING
INSTRUCTIONS
The Operating Instructions describe the entire life cycle of
the product. Please keep the Operating Instructions in a safe
place, accessible to all users and any new owners.
The Operating Instructions contain important safety
information.
Failure to comply with these instructions can lead to
hazardous situations. Pay attention in particular to the
chapters 3. Basic safety information and 2. Intended use.
▶ The Operating Instructions must be read and understood.
Symbols used
DANGER
Warns against an imminent danger.
▶ Failure to observe this warning can result in death or in
serious injury.
WARNING
Warns against a potentially dangerous situation.
▶ Failure to observe this warning can result in serious
injury or even death.
English
3
3
Advertisement
Table of Contents
Related Manuals for Burkert S030
Summary of Contents for Burkert S030
-
Page 1: Table Of Contents
Type S030 INLINE fitting We reserve the right to make technical changes without notice. Technische Änderungen vorbehalten. Sous réserve de modifications techniques. Operating Instructions www.burkert.com © Bürkert SAS, 2010-2016 Bedienungsanleitung Operating Instructions 1609/03_EU-ML 00563875 ORIGINAL_FR Manuel d'utilisation ABOUT THE OPERATING 1. ABOUT THE OPERATING INSTRUCTIONS . -
Page 2: Intended Use
The fitting type S030 is intended to measure the flow NOTE rate of clean fluids in pipes. The fitting type S030 can Warns against material damage. be combined with a flow transmitter or a flow indicator, fitted with a bajonett connection. -
Page 3: General Information
Operating Instructions. Information on the Internet You can find the Operating Instructions and technical data sheet regarding the type S030 at www.burkert.com OPERATING PRINCIPLE The fluid flowing in the piping makes the paddle-wheel turn. - Page 4 Seal peratures of 20°C, minimum upstream and downstream distances respected, appropriate pipe dimensions. If the S030 fitting is combined with a flow trans- mitter or a flow indicator that does not automati- cally convert the K factors, make the conversion...
- Page 5 Two versions of the S030 in DN15 and DN20 The names of the following norms have changed in exist, having different K factors. the Operating Instructions: Only version 2, identified by the "v2" marking, is • for the welding ends, norm BS 4825 is renamed available from March 2012.
-
Page 6: Installation
K factors (pulse/litre) K factors (pulse/litre) Type of connections and DN15 DN20 Material DN15 DN20 DN25 DN32 DN40 DN50 DN65 standard Flanges acc. to: EN 1092-1 / B1 / PN16 Stainless ANSI B16-5 steel 74,5 66,5 49,0 31,8 19,8 11,4 JIS 10K Brass 74,5... - Page 7 Selection example: l/min 1000 /h the dimen- - Specification: if the nominal flow is 10 m 3000 sioning of the optimal flow rate must be contained in 2 to DN65 2000 3m/s DN50 (DN65)* 1000 DN40 (DN50)* - Answer: on the chart, the intersection of flow rate and DN32 (DN40)* flow velocity gives the appropriate diameter, DN40 or DN25 (DN32)*...
-
Page 8: Maintenance
Installing a fitting with welding ends Follow the previously described general installation recommendations. Incorrect Correct NOTE The seal on the fitting with welding ends may be damaged during welding. → Before welding the weld-ends, unscrew the 4 tight- ening screws. → Remove the sensor holder. → Remove the seal. → Weld the weld-ends. Correct Incorrect →... -
Page 9: Spare Parts And Accessories
FDA approval 803724 → For any certificate, contact your Burkert sales subsidiary. English English Two versions of the S030 in DN15 and DN20 Spare parts Order code exist, having different K factors. Sensor holder in stainless steel Only version 2, identified by the "v2" marking, is 448 678 With PVDF paddle-wheel, FKM seal, screws available from March 2012. - Page 10 With PVDF paddle-wheel, EPDM seal, screws 432 299 and certificate, for DN15 to DN65. English English Two versions of the S030 in DN15 and DN20 Spare parts Order code exist, having different K factors. Set of O-rings (DN6 to DN65) for metal fittings Only version 2, identified by the "v2" marking, is 426 340 available from March 2012.
-
Page 11: Packaging, Transport
11. STORAGE CAUTION Poor storage can damage the product. ▶ Store the product in a dry place away from dust. ▶ Storage temperature of the S030 fitting: Paddle-wheel Body fitting material Storage material temperature • Stainless steel –15 °C...+80 °C Metal fitting • Brass Plastic fitting •...
