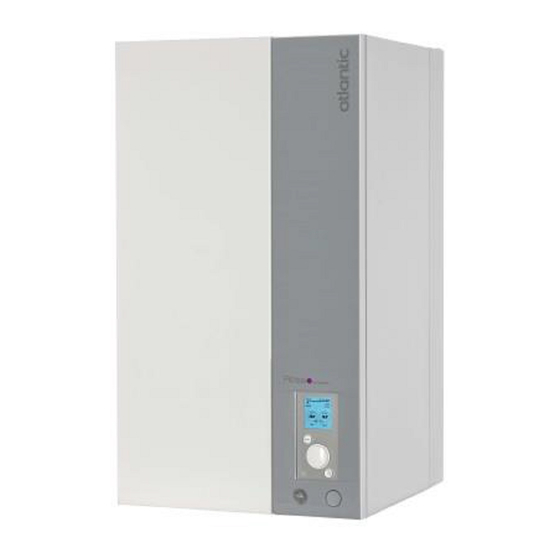

- Page 1 Alfea Hybrid Duo Oil A.I. Hybrid air/water Split Inverter heat pump High temperature with oil backup and integrated DHW U0644594_1927_EN_2 Intended for professionals. 07/03/2019 To be kept by the user for future reference...
-
Page 3: Table Of Contents
Table of Contents Safety instructions Overview of the installation Overview of the installation . . . . . . . . . . . . . . . . . . 6 Precautions and warnings about your installation . -
Page 4: Safety Instructions
Safety instructions Please comply with the following instructions in order to avoid any risk of injury or inappropriate use of the appliance . Commissioning Do not switch the appliance ON until every filling operation has been performed. Do not attempt to install this appliance yourself . This heat pump must be installed by qualified personnel holding a certificate of competence. - Page 5 Maintenance Do not try to repair the appliance yourself . This appliance does not contain any components which can be repaired by the user . Removing either of the covers can expose you to dangerous electrical voltages. In any case, switching off the current is not sufficient to protect you from any external electrical shocks (condensers).
-
Page 6: Overview Of The Installation
Overview of the installation ► Overview of the installation Your heat pump has been configured by your installation engineer . It is made up of the following main parts: - The outdoor unit, as its name suggests, is placed outside your dwelling, and extracts energy from the outside air . -
Page 7: About Your Installation
► Precautions and warnings about your installation ▼ Outdoor unit ▼ Radiators This unit was installed by your installer in a location If the radiators are equipped with thermostatic where it is able to operate most efficiently. valves, they must be fully open. Nothing should obstruct... -
Page 8: Carrying Out The Installation
Carrying out the installation ► User Interface 15:23 7 September 2017 15:23 7 September 2017 12° 12° 21,5 21.5 19.5 19,0° 19,0° 19,0° Area 1 Area 2 MENU MENU 1 heating circuit version 2 heating circuit version + domestic hot water (DHW) + domestic hot water (DHW) N°... -
Page 9: Display Description
► Display Description 15:23 7 September 2017 12° 21.5 19.5 19,0° 19,0° Area 1 Area 2 N° Symbols Definitions N° Symbols Definitions Mode 15:23 Time Comfort Date 7 September 2017 Manual (exemption) Temperature measured by the room 21.5 sensor* 19,0° Room temperature setpoint Absence Information (zone names, emergency mode, test... -
Page 10: Navigating The Menus
► Navigating the Menus To . . . Action: Press Access the menu MENU Turn the knob to highlight your choice . Choose a menu item Press the knob to accept . Press Return to the previous menu Press twice . -
Page 11: Menu Structure
► Menu Structure Area 1 Manual mode Area 2 page 12 Hot water Absence page 14 Active functions page 15 Area 1 Temperature setting Area 2 page 15 Programming Heating Area 1 page 16 Area 2 Cooling Heating Power consumption page 17 Daily cons . -
Page 12: Manual Mode
► Manual mode ▼ Exemption from timer program When a timer program is active (advanced menu), an exemption allows you to force the appliance into operation ("Heating" or "Cooling") at the desired temperature for a certain duration. ■ From the welcome screen 15:23 7 September 2017 12°... - Page 13 ▼ Cancelling an exemption from timer program ■ Cancelling an exemption with 1 heating zone 15:23 7 September 2017 12° --,- From the welcome screen, select: 24,0° "Stop the derogation". for a duration of: 9h:55m Stop the derogation ■ Cancelling an exemption with 2 heating zones Area 1 21,5°...
-
Page 14: Absence
► Absence In the event of a prolonged absence, you can set a period in which the heating operates at a reduced temperature (except for frost) and the production of domestic hot water (DHW) is stopped . ▼ Programming absence mode Absence Departure date: July... -
Page 15: Active Functions
► Active functions The "Active functions" page tells you which services are operating and allows you to change their status . Active functions Indoor comfort Heating - "Indoor comfort" : Heating / Cooling / Stop. - "Area 1" / "Area 2" / "Hot water" / "Emergency mode" * : ON / Stop. Area 1 If "Indoor comfort"... -
Page 16: Programming
► Programming A timer program allows you to define the appliance's automatic operation periods (Comfort ↔ ECO) Each day can be set independently . ▼ Creating a timer program - Choose "Heating" or "Cooling" as well as the appropriate zone by accessing the menu: "Programmation"... -
Page 17: Power Consumption
► Power consumption Electricity consumption can be displayed per usage: - Heating (Zones 1 and 2). Daily cons . Heating - Cooling . 20kW.h - Domestic Hot Water (DHW). - Total (Heating + Cooling + Hot Water). This information is available for: - the last 8 days: daily consumption (Ajd = Today, J-1 = yesterday, etc.). - Page 18 ▼ Advanced/simplified menu Two display modes for menus and appliance functions are available: - Advanced menu: - The appliance follows the timer programming defined in paragraph " Programming", page 16 . - Simplified menu*: - The appliance operates at a constant temperature set directly by the user . - Some functions are no longer accessible .
- Page 19 ▼ Connectivities - Pairing a room sensor: Settings To connect a room sensor, go to the menu: Connectivities "Settings" > "Connectivities" > "Connection". Connection The appliance waits for pairing for 10 minutes . See the room sensor's installation instructions. The "Connection" menu is no longer accessible if a thermostat has already paired.
-
Page 20: Regular Checks
Maintenance ► Outdoor unit and refrigeration Maintenance operations must be done regularly to ensure the appliance operates in total safety . circuit Depending on the operating conditions, boiler and burner must be cleaned and inspected once or twice ▼ Checking the outdoor unit a year . -
Page 21: Error Messages
► Error messages 15:23 7 September 2017 12° --,- 24,0° If a fault occurs, the error number appears on the welcome screen . Error XXX Erreur To obtain the error's designation, select it using the knob . In the event of an error, note down the number and consult your heating engineer. 138 : No control sensor HP Validate In case of error "370: Thermodynamic Generator", activate "Emergency Mode"... - Page 22 ...
- Page 23 This appliance is marked with this symbol . It means that all electrical and electronic products must be strictly separated from household waste . A specific recovery system for this type of product is in place in the countries of the European Union (*), Norway, Iceland and Liechtenstein. Do not attempt to dismantle this product yourself.
- Page 24 Commissioning date: Contact details of your heating engineer or After Sales service. www.atlantic-comfort.com Société Industrielle de Chauffage SATC - BP 64 - 59660 MERVILLE - FRANCE...
