Summary of Contents for Atlantic ALFEA Excellia mono Series

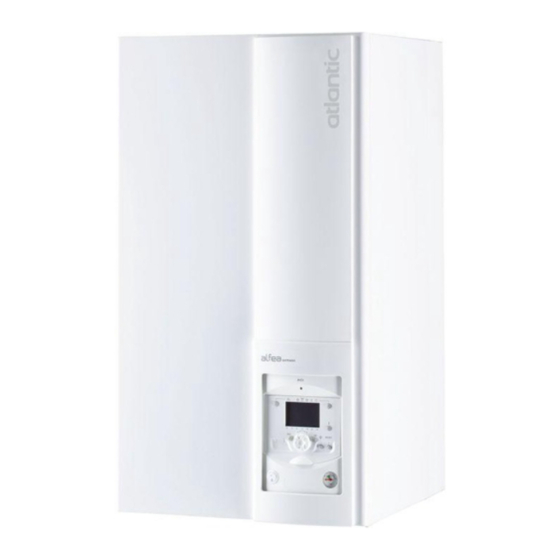

- Page 2 ALFEA Models Alféa Excellia mono 11 kW 14 kW On the wall Mono Alféa Excellia Tri 11 kW 14 kW 16kW On the wall...
- Page 3 ALFEA Combination • Application : flow 60°C thermodynamique Floor Heating Radiators low T°C or fan coil DHW preperation Devices in cascade Alféa Excellia mono Alféa Excellia tri Performances kW 16-20 20-26 26-32 32-39 39-48...
- Page 4 ALFEA Optional equipements REGULATOR ACCESSORIES Remote control Slave kit T75 or T78 (wireless) Cascade Kit Master: Room sensor Connectors T55 or T58 (wireless) Flow cascade Sensor Controller kit 2° circuit Swimming pool...
- Page 5 ALFEA Optional equipements HYDRAULIC ACCESSORIES Option Option Swimming pool Boiler kit Option management Option mixing valve...
-
Page 6: Installation
ALFEA Installation... - Page 7 ALFEA 2 Alféa Outside sensor Slave Master Flow cascade sensor Option...
- Page 8 ALFEA Controller...
- Page 9 ALFEA 3 Alféa Outside sensor Flow cascade sensor Option...
- Page 10 ALFEA Alféa + Boiler Outside sensor Slave Master Flow cascade sensor Option...
-
Page 11: Electric Box
ALFEA Electric box... - Page 12 ALFEA Alféa + DHW Outside sensors Alféa 1 Slave Master Alféa 2 Flow cascade sensor Option DHW Kit...
- Page 13 ALFEA Alféa + DHW Outside sensor Slave Master Flow cascade sensor Option DHW Kit...
- Page 14 ALFEA Alféa + DHW Outside sensor Alféa 2 Slave Alféa 1 Master Flow cascade sensor Option...
- Page 15 ALFEA Setting LEVEL END USER START UP SPECIALISTE FACTORY SETTING...
- Page 16 ALFEA Setting Paramètre 5700 : Start up level (installor) (I) • Configuration 7 : PAC Master. • Configuration 8 : PAC slave (Type A installation). • Configuration 9 : PAC slave (Type B or C installation) Paramètre 6600 : Specialist level (Engeneer) (S) •...
- Page 17 ALFEA Setting Type A installation Paramètre 5700 : Start up level (installor) (I) • Configuration 7 : PAC Master. • Configuration 8 : PAC slave (installation type A). Paramètre 6600 : Specialist level (Engeneer) (S) PAC Master. • • 2 : PAC Slave 2. •...
- Page 18 ALFEA Setting Type A installation Slave Parameters : For 1 heating circuit • 5710 : Heating Circuit 1 : off • 5715 : Heating Circuit 2 : off. Slave Parameters : For DHW • 5731 : Diverter Valve For 2 or 3 heating circuits : connect to the slave •...
- Page 19 ALFEA Setting Type B installation Paramètre 5700 : Start up level (installor) (I) • Configuration 7 : PAC Master. • Configuration 9 : PAC slave (installation type B). Paramètre 6600 : Specialist level (Engeneer) (S) PAC Master. • • 2 : PAC Slave 2. •...
- Page 20 ALFEA Setting Type B installation Slave Parameters : For 1 heating circuit • 5710 : Heating Circuit 1 : off • 5715 : Heating Circuit 2 : off. Slave Parameters : For DHW • 5731 : Diverter Valve For 2 heating circuits : connect to the Master •...
- Page 21 ALFEA Setting Type C installation Master and Slaves parameter : Same type B Slave Parameters : For DHW • 5731 : Load pump...
