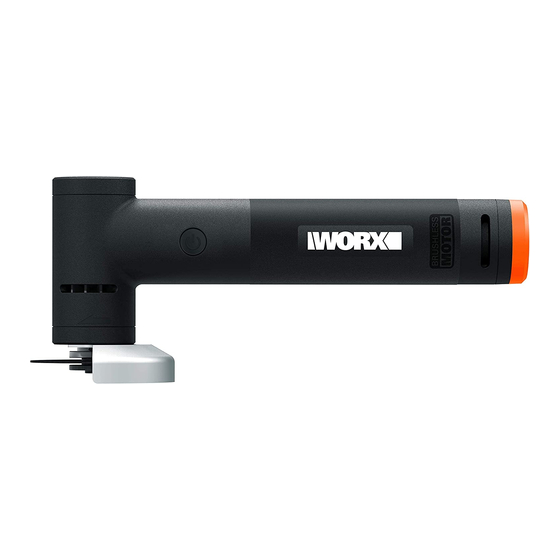

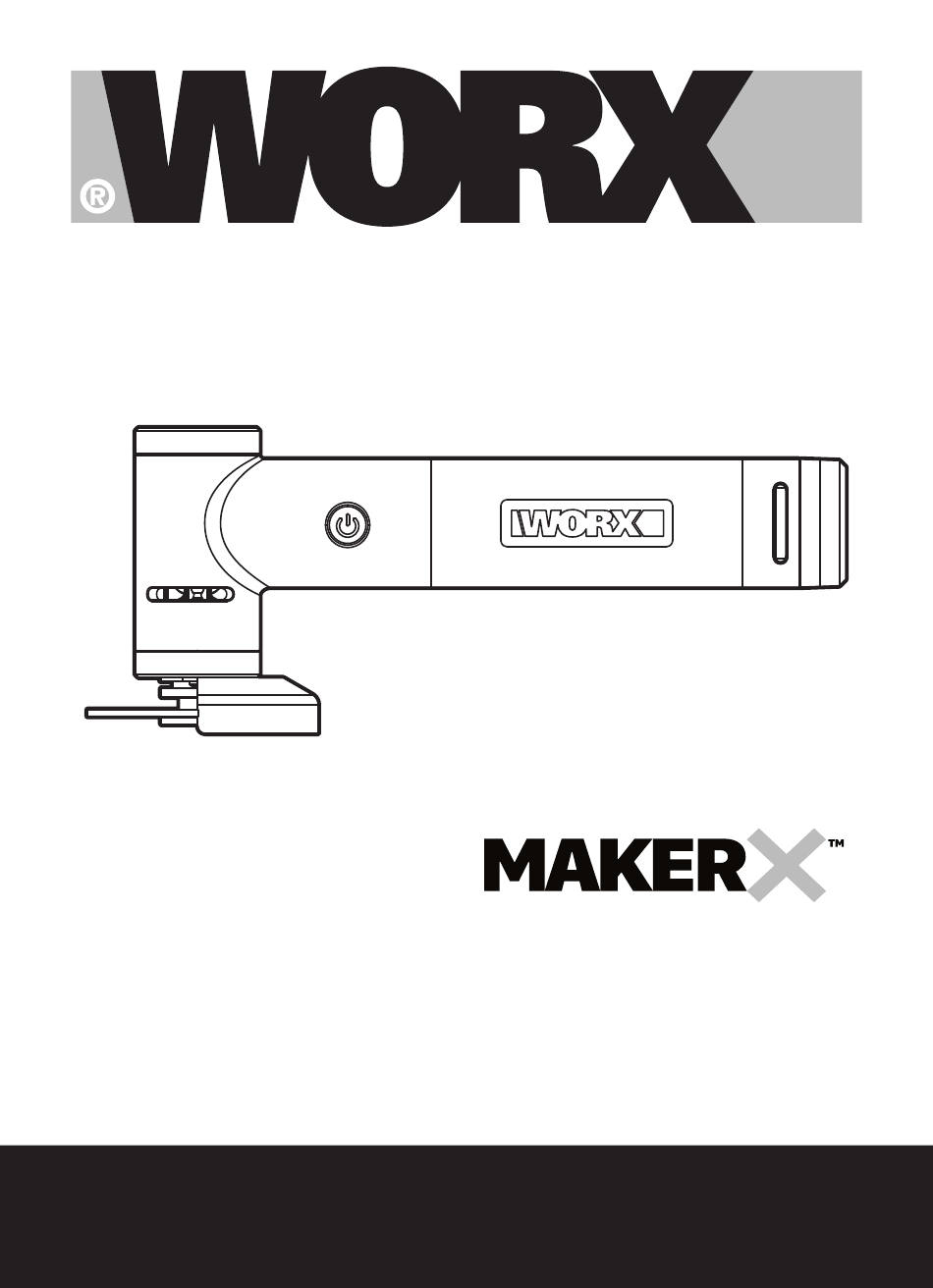

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS WX741 20V Cordless Angle Grinder WX741.X...
- Page 2 PRODUCT SAFETY GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 3 tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
-
Page 4: Safety Instructions For All Operations
paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery; avoid contact. -
Page 5: Further Safety Instructions For All Operations
shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. - Page 6 allow you to resist kickback forces. The operator can control kickback forces, if proper precautions are taken. Never place your hand near the rotating accessory. Accessory may kickback over your hand. Do not position your body in the area where power tool will move if kickback occurs.
- Page 7 Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you. When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop.
- Page 8 After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. Recharge only with the charger specified by Worx. Do not use any charger other than that specifically provided for use with the equipment.
- Page 9 Wear protective gloves Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’...
-
Page 11: Technical Data
COMPONENT LISTS ON/OFF SWITCH SPINDLE LOCK BUTTON WHEEL GUARD WHEEL FLANGE SCREW HEX KEY (M4) 6.4 MM BUTTERFLY-TYPE BLADE ARBOR ADAPTER Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Ty pe Designat ion W X741 W X741 . X (741-designation of machiner y, representative of sander and grinder) WX741 WX741.X* Rated Voltage... -
Page 12: Noise Information
NOISE INFORMATION A weighted sound pressure : 75.2 dB(A) A weighted sound power : 86.2 dB(A) &K 3dB(A) Wear ear protection. VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value a = 2.931 m/s Surface grinding or abrasive cutting off Uncertainty K = 1.5m/s²... - Page 13 Plan your work schedule to spread any high vibration tool use across a number of days. Category Model Capacity Input: 20 V 10 A Max. WA7160 Output: 20 V 10 A Max. 20V Hub/HubX Input: 20 V 10 A Max. WA7161 Output: 20 V 10 A Max.
-
Page 16: Intended Use
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. INTENDED USE: The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting (accessory) must be used. ASSEMBLY 1. -
Page 17: Environmental Protection
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany On behalf of Positec declare that the product Description Battery operated angle grinder Type WX741 WX741.X (741-designation of machinery, representative of sander and grinder) Function Peripheral and lateral grinding Sanding Complies with the following Directives: 2006/42/EC... - Page 19 DECLARATION OF CONFORMITY Positec Power Tools (Europe) Ltd, PO Box 6242, Newbury, RG14 9LT, UK On behalf of Positec declare that the product Description Battery operated angle grinder Type WX741 WX741.X (741-designation of machinery, representative of sander and grinder) Function Peripheral and lateral grinding Sanding Complies with the following Directives: Supply of Machinery (Safety) Regulations 2008...
- Page 20 After-sales Service and Application At www.worx.com you can order spare parts or arrange the collection of a product in need of servicing or repair. Tel. Service: 0345 202 9679 E-Mail: customerservices@worxtools.com www.worx.com Copyright © 2020, Positec. All Rights Reserved. AR01553000...
