- Page 1 ® Hydro Wizard ECM 42 Operating manual...
- Page 2 ® Operating manual Hydro Wizard ECM 42 Panta Rhei GmbH Managing Director: Matthias Kählig Pappelweg 4 D-30179 Hannover Telephone +49 (0) 5130-60 957 27 Fax +49 (0) 5130-60 957 26 Panta Rhei Galerie Langen Hop 5 30900 Wedemark - Brelingen MAIL: info@panta-rhei-aquatics.de...
-
Page 3: Table Of Contents
® Operating manual Hydro Wizard ECM 42 Contents 1) Scope of delivery ........1 2) 2) Safety guidelines ........1 a) General safety guidelines ......1 b) Protection against electric shock ....4 3) Safety guidelines for dealing with the magnet .............. - Page 4 ® Operating manual Hydro Wizard ECM 42 13) Technical data .......... 22 a) Pump characteristic curve ......22 b) Drive data ........... 23 c) Dimensions ..........24 d) Connecting dimensions ......25 14) Optional accessories ........ 26 15) Spare parts ..........27 Thank you very much for choosing this ®...
-
Page 6: Scope Of Delivery
® Operating manual Hydro Wizard ECM 42 Scope of delivery ® Hydro Wizard ECM 42 Controller unit Power supply Cable Magnet holder Operating manual 2) 2) Safety guidelines a) General safety guidelines Only connect the device in aquaria, garden ponds and in their protection zones to an electrical outlet with residual current device (earth leakage circuit breaker) with a rated current of not more... - Page 7 ® Operating manual Hydro Wizard ECM 42 • The controller unit and the power supply unit must not come into contact with water. • In case of visible damage to the cables, the drive must not be operated. Do not attempt to repair the cable yourself.
- Page 8 ® Operating manual Hydro Wizard ECM 42 • Do not work with a device that is damaged, incomplete or modified (without the permission of the manufacturer). Before commissioning, ensure by an expert that the required electrical protective measures are available. •...
-
Page 9: B) Protection Against Electric Shock
® Operating manual Hydro Wizard ECM 42 b) Protection against electric shock After setting up the pump, the mains plug must be freely accessible at any time during the operation. Before commissioning your new pump, have an expert checked whether the: - Grounding, protective multiple earthing and residual current- operated protective circuit work... -
Page 10: Safety Guidelines For Dealing With The Magnet
® Operating manual Hydro Wizard ECM 42 3) Safety guidelines for dealing with the magnet • The enclosed magnets are much stronger than for example pin board magnets. • Keep the magnets away from objects, which react sensitively to magnetism (e.g. credit cards and EC carts, computers). -
Page 11: Intended Use And Scope Of Application
® Operating manual Hydro Wizard ECM 42 4) Intended use and scope of application ® The Hydro Wizard is used to generate laminar flows in aquaria, ponds and similar waters. Energy- efficient circulating of water is a basic function in this connection. -
Page 12: General Description

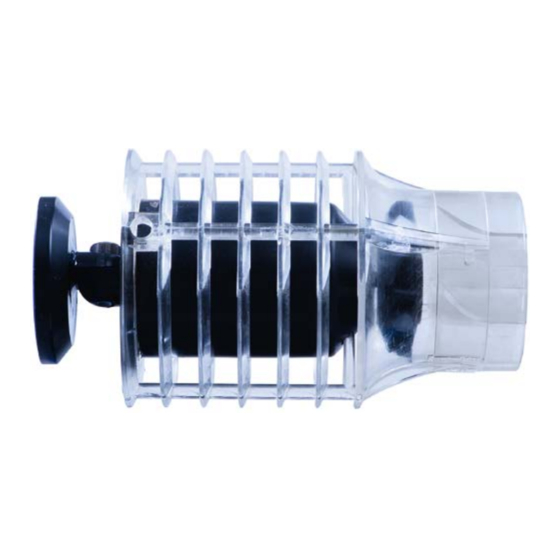

® Operating manual Hydro Wizard ECM 42 5) General description ® Hydro Wizard 1. Magnet support 2. Motor 3. Basket 4. Impeller 5. Flow conditioner 6. Multi-function button (MFB) Control box Power supply unit a) Functional description By rotation of the impeller, an area of low pressure is generated which sucks in the medium from behind through the fins of the basket and –... -
Page 13: Commissioning
® Operating manual Hydro Wizard ECM 42 6) Commissioning a) Checks before commissioning • Is there a ground fault circuit interrupter connected upstream of the device? • Are all cables free from damage? Cables must neither be bend nor rolled up! •... - Page 14 In addition, there are the inertia forces of the moving water masses in the tank. If you do not use Panta Rhei equipment for mounting, please pay attention that the support, ® on which the Hydro Wizard is assembled, can safely absorb a force of approx.
- Page 15 ® Operating manual Hydro Wizard ECM 42 • During operation, the pump must be completely immersed into water. The drive should be assembled in such a depth below the water surface that no air is sucked in from the surface during operation.
- Page 16 ® Operating manual Hydro Wizard ECM 42...
- Page 17 ® Operating manual Hydro Wizard ECM 42 3. Installation step: • Now connect the plug of the pump (5-pole) and the plug of the power supply unit (4-pole) with the control box on the On-side. Insertion requires some sensitivity. Power supply Motor (5 pole) (4 pole) •...
-
Page 18: C) Operation Of The Control
® Operating manual Hydro Wizard ECM 42 c) Operation of the control ® The control of the Hydro Wizard is operated by the multi-function button on the control box. It is used for both switching on the drive and speed regulation. The multi-function button is kept on the control box magnetically. - Page 19 ® Operating manual Hydro Wizard ECM 42 ® As standard, the Hydro Wizard is after connecting to the power supply in the stop! If the multi-function button is removed from the control box, the control box re- tains the last setting. ®...
-
Page 20: Cleaning Function
® Operating manual Hydro Wizard ECM 42 7) Cleaning function The cleaning function is an inherent part of the control. ® For this, the Hydro Wizard is operated every hour for two seconds in the opposite pumping direction. Attention: The cleaning function does not replace regular maintenance and cleaning! The cleaning function is used, e.g. -
Page 21: Assembly And Disassembly
® Operating manual Hydro Wizard ECM 42 8) Assembly and disassembly When carrying out assembly and disassembly, always disconnect the mains plug in advance! The conditioner is mounted to the basket by means of a bayonet lock. It can be pull out to the front after turning in clockwise direction. -
Page 22: Maintenance And Cleaning
® Operating manual Hydro Wizard ECM 42 9) Maintenance and cleaning The Hydro Wizard® is almost maintenance-free. If there is a higher current consumption over time, lime has probably deposited in the sliding bearings. Depending on the water composition, a more or less strong deposit is to be expected. -
Page 23: Troubleshooting
® Operating manual Hydro Wizard ECM 42 10) Troubleshooting Problem Possible reason Solution Pump does not start No electrical power - Plug in the mains plug - Check the fuses Speed regulation of the Read the operating manual control is set to “0” of the control The impeller is blocked - Disconnect the drive from... -
Page 24: Disposal And Environmental Protection
® Operating manual Hydro Wizard ECM 42 11) Disposal and environmental protection The device must not be added to the normal household waste, but must be disposed of professionally. For this purpose, please contact your local disposer. [DIRECTIVE 2002/96/EC]. -
Page 25: Warranty
Panta Rhei GmbH is not responsible. There is no warranty entitlement for products whose nameplate has been removed or modified. - Page 26 ® Operating manual Hydro Wizard ECM 42 obliged to replace products which are not covered by this limited warranty.
-
Page 27: Technical Data
® Operating manual Hydro Wizard ECM 42 13) Technical data a) Pump characteristic curve... -
Page 28: B) Drive Data
® Operating manual Hydro Wizard ECM 42 b) Drive data ® Type Hydro Wizard ECM 42 Rated input voltage 100-240 V~, 50/60Hz max. power consumption 33 W min. speed 400 rpm max. speed 2,350 rpm max. flow rate 11,280 l/h max. -
Page 29: C) Dimensions
® Operating manual Hydro Wizard ECM 42 c) Dimensions All dimensions are in mm:... -
Page 30: D) Connecting Dimensions
® Operating manual Hydro Wizard ECM 42 d) Connecting dimensions The bore holes in the rear side of the ® Hydro Wizard must not be covered! -
Page 31: Optional Accessories
® Operating manual Hydro Wizard ECM 42 14) Optional accessories • 3-point magnet support (Order no. 428229) • (Mounting-)Adapter (Order no. 11054006) • Single magnet (Order no. 428230) • Sponge-filter attachment (Order no. 11053026b) • USB adapter set (Order no. 11054197) For further information, please contact our field workers or get yourself informed at: http://shop.panta-rhei-aquatics.com... -
Page 32: Spare Parts
® Operating manual Hydro Wizard ECM 42 15) Spare parts ® You receive all spare parts for the Hydro Wizard directly at Panta Rhei. For further information, please contact our field workers or get yourself informed at: http://shop.panta-rhei-aquatics.com... - Page 33 ® Operating manual Hydro Wizard ECM 42...
- Page 34 ® Operating manual Hydro Wizard ECM 42...
- Page 35 ® Operating manual Hydro Wizard ECM 42...
- Page 36 ® Hydro Wizard ECM 42 A product of www.panta-rhei-aquatics.de...
