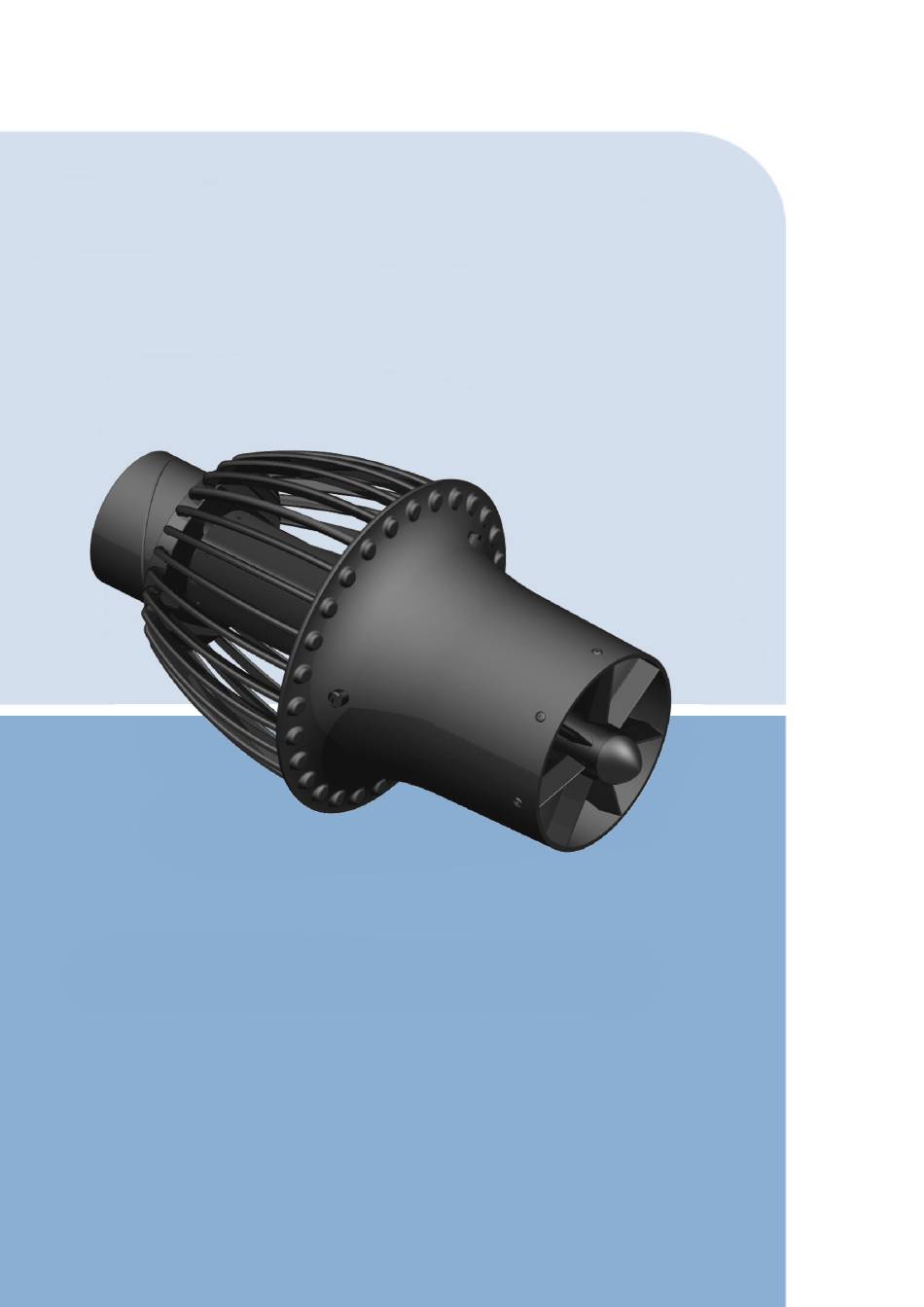

- Page 1 ® hydro wizard ECM75 User Manual...
- Page 2 Panta Rhei GmbH Geschäftsführer Matthias Kählig Pappelweg 4 30179 Hannover Telefon +49 (0) 5130-60 957 27 Fax +49 (0) 5130-60 957 26 MAIL: info@panta-rhei-aquatics.de WEB: http://www.panta-rhei-aquatics.de Version 430221b Stand 12.11.13...
-
Page 3: Table Of Contents
Menu structure ..................19 Operation ....................21 Flow mode .................... 21 Wave mode ................... 22 Connecting to the Panta Rhei BUS ............24 Cleaning function ................. 29 The Pause / Feed timer ................29 Unit Settings ..................29 Cleaning and Maintenance ................31 General Cleaning .................. - Page 4 For your safety, please read this document before using this product for the first time. Keep these operation instructions so you can have access to this information at all times.
-
Page 5: Safety
Safety General Safety Read before using this product! When used in any aquariums and ponds this device should be plugged into a GFI socket with no more than 30mA power. If persons are in the aquarium or pond the pump must be turned off. ... -
Page 6: Safety Hints For Handling Magnets
Prevention of electric shock: The plug should be freely accessible after the pump is operating Before starting a new pump please have an expert check that: grounding, fuses and interrupters are operational according to the requirements of local energy provider ... -
Page 7: Application
Application The hydro wizard is used to generate laminar flows in aquariums, ponds or other bodies of water. The energy efficient movement of water is a basic function. This eliminates dead zones in the water. With the controller it is possible to generate wave simulations, in which both wave height and length can be adjusted. -
Page 8: General Description
General Description hydro wizard© 1. Base 2. Motor 3. Nozzle + Basket 4. Impeller 5. Stator Powerbox 1. Touchpad Display 2. Power connector 3. Connector for the Panta Rhei BUS ® 4. Connector hydro wizard 5. Attachment points... -
Page 9: Function
Function The movement of the impeller generates an area of low pressure, which pulls the water from the back through the basket and pushes it out the front over the fins of the stator. -
Page 10: Start Up
Start Up Checklist before Start Up Is the pump plugged into a GFI socket? Are all cables intact, not kinked? Is the stator installed? (The stator also protects hands from getting injured by the impeller. Never use the pump without the stator) Are there any objects inside the pump that can block the impeller? - Page 11 The cable may not be wound in operating mode The hydro wizard generates very high axial forces. In addition to this, the inertia of the moving water will generate further forces acting on the mount. If you decide to build your own mount make sure that the attachment of the pump can handle forces of 150N.
- Page 12 Unrelated to the ambient temperature or the performance of the hydro wizard® pump, the power supply will get very warm. To allow the heat exchangers on the outside of the power supply to be most effective, the power supply should be mounted upright.
-
Page 13: Usage Instructions
Usage Instructions Hardware The foot of the pump can be rotated through 360° To rotate the pump into any position loosen the hex screw inside the foot with a 10mm Allan After the foot has been rotated to the desired position gently tighten the hex screw Do not tighten the screw, in order to avoid damaging it. -
Page 14: Installation And Removal
Installation and removal During installation and removal always pull the plug Loosen the screws on the tube (7 pcs) (Torx10 screwdriver) Locked torque max. 80Ncm Pull the stator forward Remove centre bolts (3 pcs) Make sure that the impeller sits in the centre of the casing by screwing the large bolts. -
Page 15: Controller Instructions (Firmware 3.0.X)
Controller Instructions (Firmware 3.0.x) Controlling the hydro wizard© The controller can be programmed with your finger, or a non abrasive touch screen pen. All touch surfaces can be easily reached with your finger. When activating a field it will be displayed with a black background. - Page 16 The Stop field on the screen will stop the Hydro Wizard. The display will ® blink when stopped. Pushing this field again will restart the hydro wizard When shipped the hydro wizard will arrive in Stop mode after it has been plugged in.
-
Page 17: The Menu Screen
The Menu Screen The menu screen is used to change and display the settings of the hydro wizard. Display: active menu go back to previous menu Selected menu item (in the middle) change to submenu ® stop hydro wizard go to upper menu item go to lower menu item go to info menu Figure 4: menu screen... -
Page 18: The „Make Changes" Screen
The „make changes“ screen This screen is used to make changes to most of the settings. number display increase number „settings wheel“ exit (ok) decrease number Figure 6: make changes screen The left center field displays the flow value. Above and below are buttons to increase or decrease the number by the smallest step possible. -
Page 19: Menu Structure
Menu structure Main menu Mode Depens on mode Settings Pause Start Duration Quick access Cleaning Automatic Duration Network Manuel Unit Time Date Language Tool Tip Dimming Password Active Password Turn Restart Reset Info Figure 7: menu structur Settings Flow Figure 8: settings in flow mode... - Page 20 Settings Current A Current B Time A Time B Time A-B Time B-A Find frequency Phase delay Picture 9: settings in wave mode, enter time Settings New interval Interval 1 View Interval 3 Change Interval ... Delete Figure 10: settings in profil mode...
-
Page 21: Operation
Operation Initial start up After the hydro wizard is plugged in for the first time you must set the language, time and date. These settings can be changed later in the info menu Selecting the mode Select the desired mode in the main menu, in the change mode screen. -
Page 22: Wave Mode
Wave mode The wave mode is used to generate waves in the aquarium. After changing into the wave mode you can change the parameters in the settings menu or the quick change menu from the info screen. If the pump is stopped (STOP button in the info or menu screen is blinking) your settings will take effect when the pump is restarted after you push the STOP button again. - Page 23 To find the ideal frequency in your aquarium select “find frequency” in the settings menu. Now select the maximum flow strength. The wave frequency will then be lowered slowly. When the waves have reached an optimal frequency it can be accepted by pushing “select” on the display.
-
Page 24: Connecting To The Panta Rhei Bus
Connecting to the Panta Rhei BUS Proceed as follows to connect several power supplies together: 1. Remove the protective caps fro the CAN sockets 2. Connect one power supply to the next as shown in the figure below. Each socket can be used for "in" or "out" so the order in which they are connected is not important 3. - Page 25 There are four options for the BUS connection: „Aus“, „Sync“, „Slave“ „Master“ When connecting several power supplies, one must act as the Master. gewählt werden. The controller of this unit will control the others (depending on their option setting). If a controller/power supply is configured as Master, a small crown will be in the time display.
- Page 26 Application example: The following examples are shown with just two pumps to simplify the diagrams, but the same programming applies for any number of connected pumps. The Panta Rhei BUS system makes adding additional units very easy. ® Current and wave mode with several hydro wizard In this example the parallel usage of two hydro wizard®...
- Page 27 Back and forth wave action: I this example two opposing hydro wizard® are used to generate a wave. hydro wizard® A should run in the first half of the time segment with 100% power, and hydro wizard® B in the second segment with the same power.
- Page 28 Tide Simulation: In this example hydro wizard® are used to simulate the natural flow of tides. hydro wizard® A will run with one set of parameters from midnight to noon, while hydro wizard® B will run from noon until midnight. To achieve this, the time must be synchronized in the SYNC mode.
-
Page 29: Cleaning Function
Cleaning function The cleaning function will help to clean off debris (like plants) that has stuck to the intake of the pump. To achieve this, the pump will spin in the opposite direction for a short time. The cleaning function is reached from the main menu. - Page 30 The menu selection “password” is used to protect the settings from unauthorized persons. By activating this mode a password must be entered to change from the info screen to the menu screen. The quick change menu to change the settings of the flow mode can no longer be accessed.
-
Page 31: Cleaning And Maintenance
Cleaning and Maintenance The hydro wizard operates largely maintenance-free. Should its energy consumption increase, this is usually caused by calcium deposits on the bearings. This effect can vary greatly, depending on the water chemistry. To clean the bearings they must be submerged in a vinegar solution. ... -
Page 32: Troubleshooting
For any other problems please get in contact with Panta Rhei Service. Repairs can be made only by Panta Rhei or authorized dealers. Disposal and Enviroment The pump should not be discarded with the... - Page 33 Power cord JAP ohne Foto 430163 Power cord USA ohne Foto 429915 Power cord GER ohne Foto Patch cord Panta Rhei Bus 11052277 11052278 terminating resistor Panta Rhei Bus 423431 Titanium srew M12x35 Titanium srew set M5x20 429430 (4 Stück)
-
Page 34: Installation Examples
Installation examples (Figure shows accessories) 428941 429430 428943 428944 428960 222651 223020 428782... -
Page 35: Technical Data
Technical Data Performance Graph Motor technical data: ® type hydro wizard ECM63 Operating voltage 100-240 V~, 50/60Hz Max. energy consumption 658 Watt Min. speed 500 R / min Max. speed 1.800 R / min Max. output 160.000 L / h Max. -
Page 36: Dimensions
Dimensions (All dimensions in mm) Mount dimensions... -
Page 37: Dimensions Powerbox
Dimensions Powerbox:... -
Page 38: Service
Service We offer the following services: Advice on flow design, performance and positioning Advice on aquaculture, show aquariums, ponds and zoo applications Bespoke programming for special applications Integration in third-party control systems Integration in PLC systems... -
Page 39: Warranty For Hydro Wizard© Products
Panta Rhei GmbH is not responsible. There is no warranty entitlement for products whose nameplate has been removed or modified. - Page 40 Enjoy your new hydro wizard...
