- Page 1 ® hydro wizard ECM63 User Manual...
- Page 2 Panta Rhei GmbH Pappelweg 4 30179 Hannover Telefon +49 (0) 5130-60 957 27 Fax +49 (0) 5130-60 957 26 MAIL: info@panta-rhei-aquatics.de WEB: http://www.panta-rhei-aquatics.de Version 429789b Stand 12.12.13...
-
Page 3: Table Of Contents
Menu structure ..................17 Operation ....................19 Flow mode .................... 19 Wave mode ................... 20 Connecting to the Panta Rhei BUS ............22 Cleaning function ................. 27 The Pause / Feed timer ................27 Unit Settings ..................27 Cleaning and Maintenance ................29 General Cleaning .................. - Page 4 For your safety, please read this document before using this product for the first time. Keep these operation instructions so you can have access to this information at all times.
-
Page 5: Safety
Safety General Safety Read before using this product! When used in any aquariums and ponds this device should be plugged into a GFI socket with no more than 30mA power. If persons are in the aquarium or pond the pump must be turned off. ... -
Page 6: Safety Hints For Handling Magnets
Prevention of electric shock: The plug should be freely accessible after the pump is operating Before starting a new pump please have an expert check that: grounding, fuses, and interruptors are operational according to the requirements of local energy provider ... -
Page 7: Application
Application The hydro wizard is used to generate laminar flows in aquariums, ponds or other bodies of water. The energy efficient movement of water is a basic function. This eliminates dead zones in the water. With the controller it is possible to generate wave simulations, in which both wave height and length can be adjusted. -
Page 8: General Description

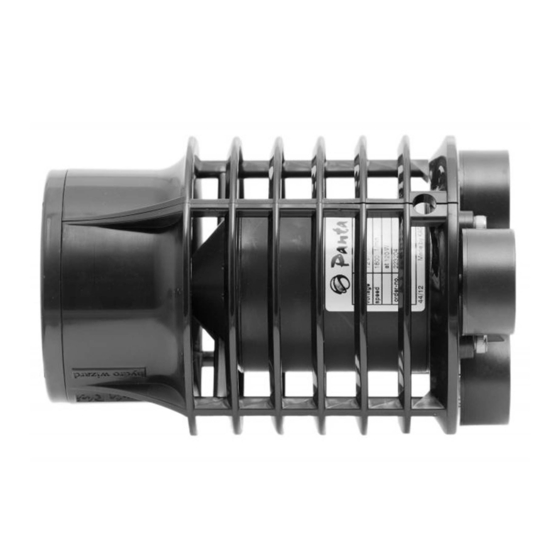

General Description © hydro wizard 1. Magnet-Base 2. Motor 3. Basket 4. Impeller 5. Stator Controller power supply Function The movement of the impeller generates an area of low pressure, which pulls the water from the back through the basket and pushes it out the front over the fins of the stator. -
Page 9: Start Up
Alternative hardware for attaching the pump can be ordered from Panta Rhei directly. The dimensions for attachment can be found on page 35 The hydro wizard generates very high axial forces. In addition to this the inertia of the moving water will generate further forces acting on the mount. - Page 10 Outer magnets For the installation of the magnets on the outside we suggest to place the magnet against the glass far away from the pump (1) and then slide it over to the final position (2). Directly placing the magnet in the final position can damage the glass, or injure your fingers! The exterior magnets are not designed for use in the aquarium.
- Page 11 Power Motor Begin with a very low flow, and carefully watch the effects of the laminar flow in your aquarium (are plants sucked in, decoration knocked over?). If needed reposition the pump or reduce the output power Choosing the wrong wave length (resonance) in any aquarium can cause severe damage and even break the tank.
-
Page 12: Installation And Removal
Installation and removal During installation and removal always pull the plug. The stator is attached to the front of the housing with a bayonet lock. To remove it spin it clockwise and pull it forward. To change the impeller use an Allan key (metric 4mm). -
Page 13: Controller Instructions (Firmware 3.0.X)
Controller Instructions (Firmware 3.0.x) Controlling the hydro wizard© The controller can be programmed with your finger, or a non abrasive touch screen pen. All touch surfaces can be easily reached with your finger. When activating a field it will be displayed with a black background. - Page 14 The Stop field on the screen will stop the Hydro Wizard. The display will ® blink when stopped. Pushing this field again will restart the hydro wizard When shipped the hydro wizard will arrive in Stop mode after it has been plugged in.
-
Page 15: The Menu Screen
The Menu Screen The menu screen is used to change and display the settings of the hydro wizard. Display: active menu go back to previous menu Selected menu item (in the middle) change to submenu ® stop hydro wizard go to upper menu item go to lower menu item go to info menu Figure 4: menu screen... -
Page 16: The „Make Changes" Screen
The „make changes“ screen This screen is used to make changes to most of the settings. increase number number display „settings wheel“ exit (ok) decrease number Figure 6: make changes screen The left center field displays the flow value. Above and below are buttons to increase or decrease the number by the smallest step possible. -
Page 17: Menu Structure
Menu structure Main menu Mode Depens on mode Settings Pause Start Duration Quick access Cleaning Automatic Duration Network Manuel Unit Time Date Language Tool Tip Dimming Password Active Password Turn Restart Reset Info Figure 7: menu structur... - Page 18 Settings Flow Figure 8: settings in flow mode Settings Current A Current B Time A Time B Time A-B Time B-A Find frequency Phase delay Picture 9: settings in wave mode, enter time Settings New interval Interval 1 View Interval 3 Change Interval ...
-
Page 19: Operation
Operation Initial start up After the hydro wizard is plugged in for the first time you must set the language, time and date. These settings can be changed later in the info menu Selecting the mode Select the desired mode in the main menu, in the change mode screen. -
Page 20: Wave Mode
Wave mode The wave mode is used to generate waves in the aquarium. After changing into the wave mode you can change the parameters in the settings menu or the quick change menu from the info screen. If the pump is stopped (STOP button in the info or menu screen is blinking) your settings will take effect when the pump is restarted after you push the STOP button again. - Page 21 To find the ideal frequency in your aquarium select “find frequency” in the settings menu. Now select the maximum flow strength. The wave frequency will then be lowered slowly. When the waves have reached an optimal frequency it can be accepted by pushing “select” on the display.
-
Page 22: Connecting To The Panta Rhei Bus
Connecting to the Panta Rhei BUS Proceed as follows to connect several power supplies together: 1. Remove the protective caps fro the sockets 2. Connect one power supply to the next as shown in the figure below. Each socket can be used for "in" or "out" so the order in which they are connected is not important 3. - Page 23 There are four options for the BUS connection: „Aus“, „Sync“, „Slave“ „Master“ When connecting several power supplies, one must act as the Master. gewählt werden. The controller of this unit will control the others (depending on their option setting). If a controller/power supply is configured as Master, a small crown will be in the time display.
- Page 24 Application example: The following examples are shown with just two pumps to simplify the diagrams, but the same programming applies for any number of connected pumps. The Panta Rhei BUS system makes adding additional units very easy. ® Current and wave mode with several hydro wizard In this example the parallel usage of two hydro wizard®...
- Page 25 Back and forth wave action: I this example two opposing hydro wizard® are used to generate a wave. hydro wizard® A should run in the first half of the time segment with 100% power, and hydro wizard® B in the second segment with the same power.
- Page 26 Tide Simulation: In this example hydro wizard® are used to simulate the natural flow of tides. hydro wizard® A will run with one set of parameters from midnight to noon, while hydro wizard® B will run from noon until midnight. To achieve this, the time must be synchronized in the SYNC mode.
-
Page 27: Cleaning Function
Cleaning function The cleaning function will help to clean off debris (like plants) that has stuck to the intake of the pump. To achieve this, the pump will spin in the opposite direction for a short time. The cleaning function is reached from the main menu. - Page 28 The menu selection “password” is used to protect the settings from unauthorized persons. By activating this mode a password must be entered to change from the info screen to the menu screen. The quick change menu to change the settings of the flow mode can no longer be accessed.
-
Page 29: Cleaning And Maintenance
Cleaning and Maintenance The hydro wizard operates largely maintenance free. Should it increase its energy consumption the cause is usually calcium deposits on the bearings. Depending on the water chemistry this effect can vary greatly. To clean the bearings they must be submerged in a vinegar solution. ... -
Page 30: Troubleshooting
For any other problems please get in contact with Panta Rhei Service. Repairs can be made only by Panta Rhei or authorized dealers. -
Page 31: Disposal And Enviroment
Disposal and Enviroment The pump should not be discarded with the regular trash, it should be disposed of according to local regulations, please check with your local authority. [RICHTLINIE 2002/96/EG]... -
Page 32: Warranty For Hydro Wizard© Products
Panta Rhei GmbH is not responsible. There is no warranty entitlement for products whose nameplate has been removed or modified. - Page 33 Spare parts and accessories (extract) Symbol description catalogue number Complete unit 221717 (motor + casing) Controller 429095 Plug 429642 no pic Plug 429643 no pic Plug 429751 no pic AUS / ARG Plug 429752 no pic Titanium screw (4x) M5x16 429822 Titanium screw M4x10 428201...
-
Page 34: Technical Data
Technical Data Performance Graph Motor technical data: ® type hydro wizard ECM63 operating voltage 100-240 V~, 50/60Hz max. energy consumption 120 Watt min. revolutions 500 R / min max. revolutions 1800 R / min max. output 51.000 L / h max. -
Page 35: Dimensions
Dimensions (all dimensions in mm) Mount dimensions Do not cover the holes in the back of the hydro wizard. Use adapter ring 429262 or the adjustable breaket 429786 from accessories (page 33) - Page 36 Enjoy your new hydro wizard...
