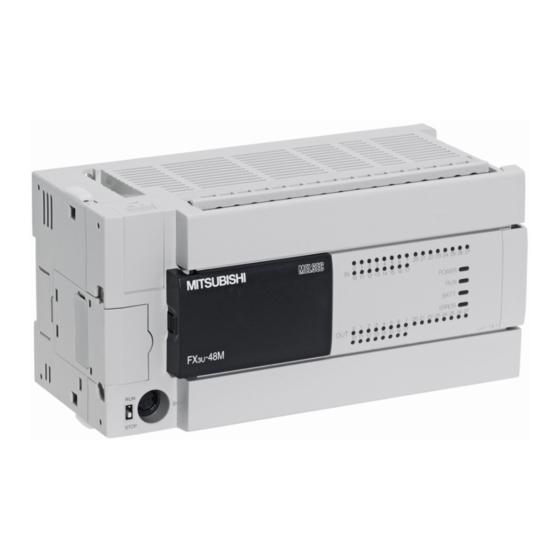

Mitsubishi MELSEC-F FX 3U Series Hardware Manual

JY997D18801B(ENGLISH)
FX SERIES PROGRAMMABLE
3U
CONTROLLERS
HARDWARE MANUAL
Manual Number JY997D18801
Revision B
Date June 2005
This manual describes the part names, dimensions, mounting,
cabling and specifications for the product. This manual is extracted
from FX 3U Series User's Manual - Hardware Edition. Refer to FX
Series User's Manual - Hardware Edition for more details. Before
use, read this manual and manuals of relevant products fully to
acquire proficiency in the handling and operating the product. Make
sure to learn all the product information, safety information, and
precautions.
And, store this manual in a safe place so that you can take it out and
read it whenever necessary. Always forward it to the end user.
Registration
The company name and the product name to be described in this
manual are the registered trademarks or trademarks of each
company.
Effective May 2005
Specifications are subject to change without notice.
 2005 Mitsubishi Electric Corporation
Safety Precaution
(Read these precautions before use.)
This manual classifies the safety precautions into two categories:
and .
Indicates that incorrect handling may cause
hazardous conditions, resulting in death or
severe injury.
Indicates that incorrect handling may cause
hazardous conditions, resulting in medium or
slight personal injury or physical damage.
Depending on circumstances, procedures indicated by
may also be linked to serious results.
In any case, it is important to follow the directions for usage
.
STARTUP AND
MAINTENANCE
PRECAUTIONS
• Do not touch any terminal while the PLC's power is on.
Doing so may cause electrical shock or malfunctions.
• Before cleaning or retightening terminals, externally cut off all
phases of the power supply.
Failure to do so may expose you to shock hazard.
• Correctly connect the battery for memory backup.
Do not charge, disassemble, heat or short-circuit the battery.
Do not throw it into the fire.
Doing so may rupture or ignite it.
• Before modifying the program under operation or performing
operation for forcible output, running or stopping, carefully read
the manual, and sufficiently ensure the safety.
An operation error may damage the machine or cause
accidents.
STARTUP AND
3U
MAINTENANCE
PRECAUTIONS
• Before attaching or detaching the memory cassette, turn off
power. If it is attached or detached while PLC's power is on,
the data in the memory may be destroyed, or the memory
cassette may be damaged.
• Do not disassemble or modify the PLC.
Doing so may cause failures, malfunctions or fire.
* For repair, contact your local Mitsubishi Electric distributor.
• Before connecting or disconnecting any extension cable, turn
off power.
Failure to do so may cause unit failure or malfunctions.
• Before attaching or detaching the following devices, turn off
power.
Failure to do so may cause device failure or malfunctions.
- Peripheral devices, display module and expansion boards
- Extension blocks, connector conversion adapter and special
adapters
- Battery and memory cassette
DISPOSAL
PRECAUTIONS
• Please contact a company certified in the disposal of electronic
waste for environmentally safe recycling and disposal of your
device.
TRANSPORT AND
STORAGE
PRECAUTIONS
• Before transporting the PLC, turn on power to the PLC to check
that the BATT LED lamp is off and check the battery life.
If the PLC is transported with the BATT LED lamp on or the
battery exhausted, the backed up data may be unstable during
transportation.
• During transportation, avoid impact larger than that is specified
in section 2.1 as the unit is a precision instrument.
After transportation, check the operations of the unit.
Certification of UL, cUL standards
FX main units and input/output extension units/blocks supporting
3U
UL, cUL standards are as follows:
UL, cUL registration number :E95239
Models : MELSEC FX 3U series manufactured
FX - MR/ES(-A)
3U
Where indicates:16,32,48,64,80
FX 3U -232ADP FX 3U -485ADP
FX -4AD-ADP FX -4DA-ADP
3U 3U
FX -4AD-PT-ADP FX -4AD-TC-ADP
3U 3U
FX 3U -4HSX-ADP FX 3U -2HSY-ADP
Models : MELSEC FX 2N series manufactured
FX - ER-ES/UL FX - ET-ESS/UL
2N 2N
Where indicates:32,48
FX -16EX-ES/UL FX -16EYR-ES/UL
2N 2N
FX 2N -16EYT-ESS/UL FX 2N -48ER-UA1/UL
Compliance with EC directive(CE Marking)
This note does not guarantee that an entire mechanical module
produced in accordance with the contents of this note will comply
with the following standards.
Compliance to EMC directive and LVD directive of the entire
mechanical module should be checked by the user / manufacturer.
For more details please contact the local Mitsubishi Electric sales
site.
Requirement for Compliance with EMC directive
The following products have shown compliance through direct
testing (of the identified standards below) and design analysis
(through the creation of a technical construction file) to the European
Directive for Electromagnetic Compatibility (89/336/EEC) when used
as directed by the appropriate documentation.
Type : Programmable Controller (Open Type Equipment)
Models : MELSEC FX 3U series manufactured
from May 1st, 2005 FX - MR/ES(-A)
3U
Where indicates:16,32,48,64,80
FX -4HSX-ADP FX -2HSY-ADP
3U 3U
FX 3U -FLROM-16 FX 3U -FLROM-64L
FX -7DM
3U
from June 1st, 2005 FX 3U -232ADP FX 3U -485ADP
FX -4AD-ADP FX -4DA-ADP
3U 3U
FX 3U -4AD-PT-ADP FX 3U -232-BD
FX -422-BD FX -485-BD
3U 3U
FX -USB-BD
3U
FX -FLROM-64
3U
Standard Remark
EN61131-2:2003 Compliance with all relevant aspects
Programmable controllers of the standard.
• Radiated Emissions
- Equipment
• Mains Terminal Voltage Emissions
requirements and tests
• RF immunity
• Fast Transients
• ESD
• Conducted
• Surge
• Power magnetic fields
Models : MELSEC FX series manufactured
2N
from July 1st, 1997 FX 2N - ER-ES/UL FX 2N - ET-ESS/UL
Where indicates:32,48
FX -16EX-ES/UL FX -16EYR-ES/UL
2N 2N
FX -16EYT-ESS/UL
2N
from August 1st, 1998 FX -48ER-UA1/UL
2N
to March 31st, 2002 [compliance with EN50081-2 (EN61000-6-4)
and EN50082-2]
from April 1st 2002: Above mentioned products [compliance with
EN50081-2 (EN61000-6-4) and EN61131-2]
Standard Remark
EN50081-2:1993 Compliance with all relevant aspects
Electromagnetic of the standard.
compatibility • Radiated Emissions
EN61000-6-4:2001 • Mains Terminal Voltage Emissions
- Generic emission
standard
Industrial environment
EN50082-2:1995 Compliance with all relevant aspects
Electromagnetic of the standard.
• RF immunity
compatibility
• Fast Transients
- Generic immunity
• ESD
standard
• Conducted
Industrial environment
• Power magnetic fields
EN61131-2:1994 Compliance with all relevant aspects
/A11:1996 of the standard.
• RF Immunity
/A12:2000
• Fast Transients
Programmable controllers
• ESD
- Equipment
• Damped oscillatory wave
requirements and tests
