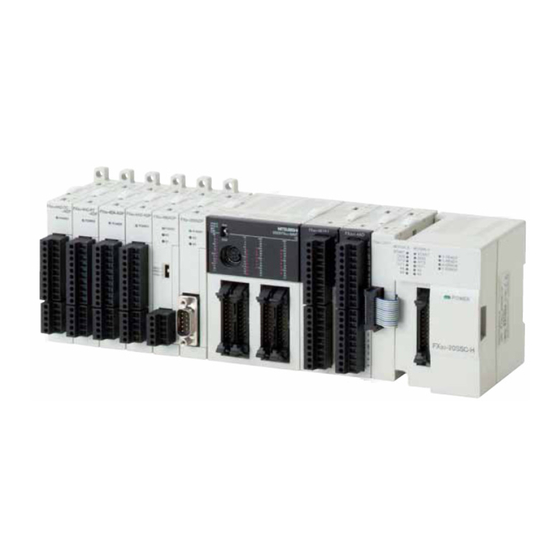

FX3UC
The Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FX3UC and is the answer not in the manual?

Questions and answers

Summary of Contents for Mitsubishi FX3UC

  • Page 1 /// Compact PLC /// Technical /// Compact PLC /// Technical /// Compact PLC /// /// Compact PLC /// Technical /// Compact PLC /// Technical /// Compact PLC /// FX3UC The Guide...
  • Page 2 COMMUNICATION EXPANSION FX3UC SPECIAL FUNCTION EXPANSION FX F AMILY SPECIAL FUNCTION EXPANSION IRING SYSTEM CONFIGURATIONS – I TYPE NPUTS – O TYPE UTPUTS – I TYPE NPUTS OR UTPUTS MAIN DIFFERENCES BETWEEN FX3UC AND FX3U AND FX3UC DOCUMENTATION FX3U FAQ'S...
  • Page 3: Inspiration

    FX Family portfolio. The FX3UC has an immense power to size ratio, the super micro has the same CPU as the successful FX3U. Due to its physical size it can be used in applications where traditional PLC’s cannot go.
  • Page 4: The Fx3Uc Range

    • Super compact less than 30% of the comparative FX3U size • Wiring options for transistor output modules • Convenient cabling to a range of Mitsubishi or 3 party terminal blocks • Cost saving in installations • Fast, secure wire connection to terminal rail I/O •...
  • Page 5: P Eripherals And W Iring Solutions

    24V DC / 3- phase 40A SAP Number Peripheral unit Description List 104508 FX2NC-CNV-IF To connect FX3U/FX2N/FX0N special £25 function blocks 210091 FX3UC-1PS-5V Power supply expansion for 5V bus £105 165286 FX3U-32BL Battery for memory backup £40 SAP Number Power supply cable Description List...
  • Page 6: P Rogramming Options

    FX3UC can be programmed with both GX Developer and GX Developer IEC (Full and FX Versions) HMI connection The FX3UC can be connected to all of our HMI modules via the RS-422 programming port in exactly the same way as the FX3U.
  • Page 7: Fx F Amily S Pecial F Unction M Odules

    /// Compact PLC /// Technical /// Compact PLC /// Technical /// Compact PLC /// FX Family Special Function Modules FX3UC is primarily designed to be a stand-alone series with its own CPU, extension I/O, communication and analogue options, but as with all FX there is the possibility of connecting many of the special function blocks from other series.
  • Page 8: System Configuration

    FX3UC communication expansion FX3U-232ADP-MB or FX3U-485ADP-MB connected to the left-hand side of the CPU FX3UC special function expansion Up to 4 analogue input or analogue output ADPs can be connected to the left-hand side of the CPU: FX3U-4AD-ADP, FX3U-4DA-ADP, FX3U-4AD-TC-ADP, FX3U-4AD-PNK-ADP,...
  • Page 9: W Iring System Configurations

    /// Compact PLC /// Technical /// Compact PLC /// Technical /// Compact PLC /// Wiring system configurations Wiring made easy: The connections for the FX3UC inputs and transistor outputs can be wired with ribbon cable connectors. Remote I/O interface modules with...
  • Page 10 Main differences between FX3UC and FX3U and FX2NC The majority of the points below highlight strengths in the FX3U series. • It must be noted that FX3U is the superior controller, but FX3UC will fit in where; • basic price overrules specification •...
  • Page 11: Documentation

    Revision Date 9/2007 FX3UC MT D SUPPLEMENTARY MANUAL.pdf Manual No. JY997D29701 Revision Date 9/2007 FX3U-FX3UC SERIES USER'S MANUAL - Analog Control Edition.pdf Manual No. JY997D28701 Revision Date 11/2007 FX3U-FX3UC SERIES USER'S MANUAL - Positioning Control Edition.pdf Manual No. JY997D16801 Revision...
  • Page 12 PLC Q) Will the FX3UC replace the FX3U? A) No, the FX3UC is not a replacement but an expansion to the FX family and has other advantages for different scenarios.
