Summary of Contents for Comedes BTR 50

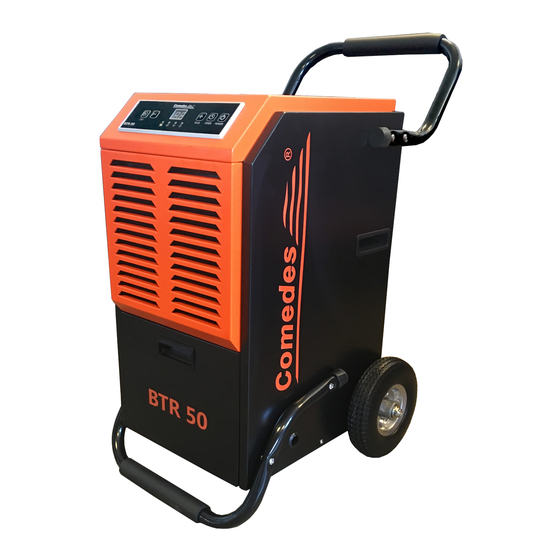

- Page 1 Air dehumidifier BTR 50...
-
Page 2: Table Of Contents
Frequently asked questions..................... Dear customer, Thank you for choosing the BTR 50 from Comedes GmbH. You have purchased a powerful and reliable dehumidifier. To ensure that the device will be a faithful servant for a long period of time, we ask you to study the operating instructions, especially the safety instructions, thoroughly. - Page 3 WARNING: Please read the instructions carefully before commissioning. Failure to comply with the safety instructions and instructions may result in electric shock, fire and/or serious injury. Keep all safety instructions and instructions for future reference. Heads up! Do not open the unit until the mains plug is removed from the mains socket. Danger to life through electric shock! Have repairs carried out only by an authorised specialist workshop.
-
Page 4: Safety Instructions
Safety Instructions partner or similarly qualified persons to avoid any risk of Do not use any agents other danger. than those recommended by Please contact a professional the manufacturer to speed up to have the product repaired. the defrosting process or to Improper repairs can lead to clean the dehumidifier. - Page 5 hazards involved. Do not Do not clean the dehumidifier allow children to play with the with water or chemicals. device. Cleaning and Prevent water from getting maintenance must not be on/on the appliance. carried out by children Do not spray the unit with without supervision.
- Page 6 and securely into the power the equipment. outlet. Do not operate the Transport, storage and dehumidifier via a multiple disposal socket, plug adapter or When transporting equipment extension cord. and parts that contain Do not operate the appliance flammable refrigerants, the if it has been dropped or transport regulations must be damaged, or if it shows signs...
-
Page 7: Appropriate Use
flammable and heavier than designed for propane gas and air. It first collects in low are therefore non-ignitable areas, but can be circulated and non-sparking. by fans. Components may only be If propane gas is present, or replaced by identical spare suspected to be present, do parts approved by the not allow untrained persons... -
Page 8: Technical Data
Leave the appliance in its final, upright position for at least 24 hours before starting it up for the first time. Always operate the appliance in an upright position and do not tilt it during operation. Technical data Product name: Comedes BTR 50 Voltage: AC220~240V/50 Hz Nominal power: 650W (30°C 80% humidity) Power consumption: 3.1 A (30°C 80% humidity) -
Page 9: Assembly
Control panel Figure 3: Display Display Plus power button Minus Tank Perman Timer Continuous operation "full" Defrostin operati Display: The display shows the prevailing room air humidity. While setting the timer and target humidity, the selected values are displayed. When the setting is completed, the current room air humidity is displayed again. -
Page 10: Installation Instructions
Soft underlay (blanket, sleeping mat, towel or similar) Assembly steps for the BTR 50: Please note that the device is heavy. To avoid injuries or damage to the device and objects in the vicinity, the installation should be carried out by 2 persons. - Page 11 min. 50cm min. 50cm min. 50cm min. 50cm...
-
Page 12: Before Commissioning
The device is equipped with a modern hygrostat (humidity controller) and switches off automatically when the desired humidity is reached. The compressor switches off first and then the fan 60 seconds later. If the humidity in the room rises again, the Comedes BTR 50 switches on again automatically. - Page 13 After approx. 10 seconds, the current room humidity is displayed again. Empty water tank: When the water tank is full, the Comedes BTR 50 will automatically shut down and the Tank Full indicator (Fig. 3) will light up. This is also signalled acoustically (15x beeps). To stop the alarm, press the power button and turn off the unit.
-
Page 14: Hose Drainage
To protect the compressor, it has a 3 minute switch-on delay. • Hose drainage The Comedes BTR 50 can also be operated with a drainage hose (Ø11.0mm). To do this, remove the water tank and attach a drainage hose. Proceed as follows: Drainage hose 1. - Page 15 The defrosting process is active until the temperature measured at the evaporator exceeds 5°C or a defrosting cycle of 15 minutes has been carried out. Recommendations for drying with the Comedes LTR 100 NEO In order to achieve the best possible dehumidification result with the LTR 100 NEO, the...
- Page 16 In the case of construction defects and water damage, the cause should first be eliminated. The rooms can then be dried with condensation dryers such as the BTR 50. The dehumidifier is operated in continuous operation. The ambient temperature should be at least 20°C (no more than 27°C).
-
Page 17: Maintenance
The diagram assumes that temperatures >=20°C are living rooms and temperatures <=20°C are basement rooms. Maintenance... - Page 18 Always switch off and unplug the appliance before starting cleaning, maintenance or repair work. A maintenance log must be kept for the operation of the device as follows Maintenance log for Comedes BTR 50: Serial number: …………………………………. Maintenance and service interval...
- Page 19 Check air inlet and outlet and remove im- purities. (Fig 1, Fig 2.) External cleaning Visual inspection of the water outlet (hose connection) for conta- mination Check air filter for dirt and foreign bodies, clean or replace if ne- cessary Check device for da- mage (power cable, housing, tank, fan...
-
Page 20: Frequently Asked Questions
6. is the timer function activated? 7. if the above points are ok, try again in 10 minutes 8. if the device is still not working, please contact service@comedes.com The dehumidification capacity is too low. 1. is the dust filter dirty? 2. - Page 21 This product must not be disposed of with household waste. This dehumidifier must be returned to a recycling point for electronic and electrical equipment. You can obtain further information about the relevant collection points from your local or city administration or from Comedes GmbH.
