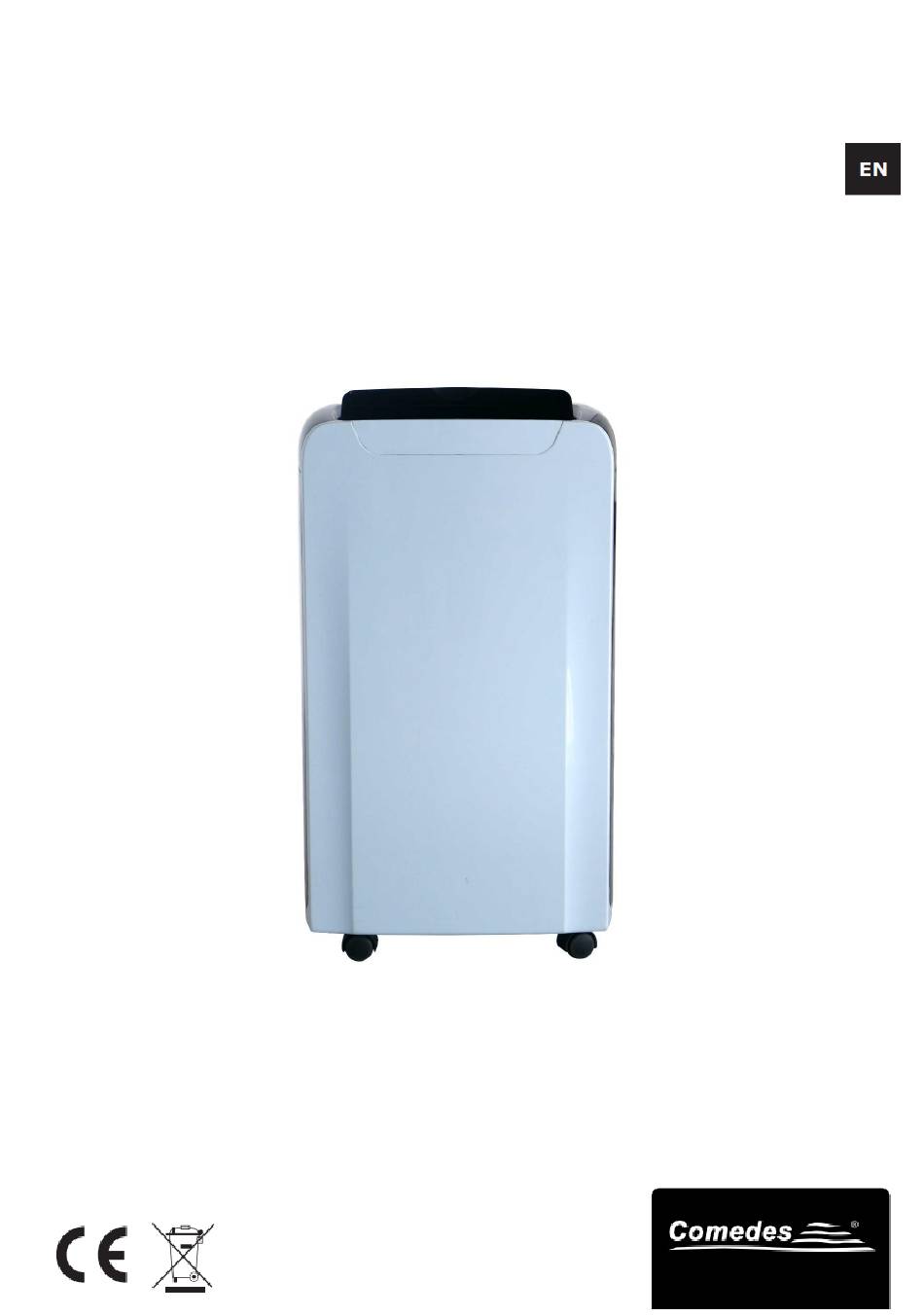

- Page 1 Dehumidifier LTR 100 NEO...
-
Page 2: Table Of Contents
Operating instructions ....................5 Technical data ......................5 Layout .......................6-7 Setting up instructions ....................8 Before starting up ....................8 Starting up ......................8-10 Hose drainage ......................11 Recommendations for drying with the Comedes LTR 100 NEO ........12-13 Maintenance ......................14-15 Frequently asked questions ..................16 ENG-1 www.comedes.com... -
Page 3: Foreword
Dear customer, Thank you for buying the LTR 100 NEO from Comedes GmbH. You have purchased a powerful dehumidifier, which has been developed in accordance with the latest technical standards. To ensure that your device offers you faithful service for a long time, please study these operating instructions in detail, especially the safety information. -
Page 4: Safety Information
To avoid accidents, do not leave the unit unattended during operation. • To avoid overloading, never connect several household appliances to the same socket • outlet with earthing contact at the same time. ENG-3 www.comedes.com... - Page 5 To avoid hazards, always disconnect the mains plug from the safety socket when not in • use. Please note that in addition to switching off the device, unplug the mains plug from the • safety socket in order to completely disconnect the device from the mains. ENG-4 www.comedes.com...
-
Page 6: Intended Use
When the humidity rises again, the unit switches itself on again automatically. When the water tank is full, the unit switches off automatically. Technical Data Product name: Comedes LTR 100 NEO Voltage: AC220-240V/50 Hz Rating power: 200W (30°C 80% Luftfeuchte) -
Page 7: Layout
Layout Figure 1: Control panel Air outlet Handle Caster Figure 2: Air inlet Opening for Hose drainage Water tank Power cord Side panel Rear panel ENG-6 www.comedes.com... - Page 8 The illuminated display shows the prevailing room humidity as soon as the unit is plugged in. During the setting of the timer and the target humidity, the selected values are displayed. When the setting is complete, the current room humidity is displayed again. ENG-7 www.comedes.com...
-
Page 9: Setting Up Instructions
The higher the humidity in a room and the higher the temperature in that room, the more effectively the Comedes LTR 100 NEO can dehumidify the air. The compressor therefore generates heat and warms up the air in the room. This is perfectly normal and is no cause for alarm. - Page 10 When the humidity in the room rises again, the Comedes LTR 100 NEO switches on itself again automatically. By pressing the Humidity Setting button repeatedly, the target humidity can be set as follows: 50% »...
- Page 11 After the water tank is full, the Comedes LTR 100 NEO switches off automatically and the tank "full" indicator (Fig. 3) lights up. You must empty the water tank to restart the LTR 100 NEO. Always switch off the unit first and disconnect the mains plug.
-
Page 12: Hose Drainage
Hose drainage The Comedes LTR 100 NEO can also be operated with a drainage hose (Ø9.5mm). To do this, remove the water tank and attach a drainage hose. To do this, proceed as follows: 1. Remove the water tank. 2. Carefully break the plastic seal of the drainage outlet from the water tank. -
Page 13: Recommendations For Drying With The Comedes Ltr 100 Neo
Drying to deal with building defects or water damage In the case of building defects or water damage, the cause needs to be eliminated first. Once this has been done the rooms can be dried using condensation driers such as the LTR 100 NEO. ENG-12... - Page 14 35% and 65% relative humidity, depending on the ambient temperature. The following diagram provides a point of reference for the optimum level of humidity at different ambient temperatures. The diagram is based on the assumption that temperatures >=20°C are for living quarters and temperatures <=20°C are for basement quarters. ENG-13 www.comedes.com...
-
Page 15: Maintenance
Do not spray the device with water. • The condensate container should be cleaned regularly for hygienic reasons. Use a mild • detergent for cleaning and then dry the container thoroughly. Removing and cleaning the dust filter ENG-14 www.comedes.com... - Page 16 Remove and clean the dust filters. Before reinstalling, make sure that the filters are completely dry. Store the dehumidifier in a cool dry place. Keep the unit away from direct sunlight, high/low temperatures and high dust levels. ENG-15 www.comedes.com...
-
Page 17: Frequently Asked Questions
5. Is the room temperature above 35°C or below 5°C? 6. If the above points are ok, try again in 10 minutes. 7. If the device still does not work, please contact service@comedes.com 8. Is the timer function activated? Inadequate dehumidifying results. - Page 18 Print No. 1806L1-01...
