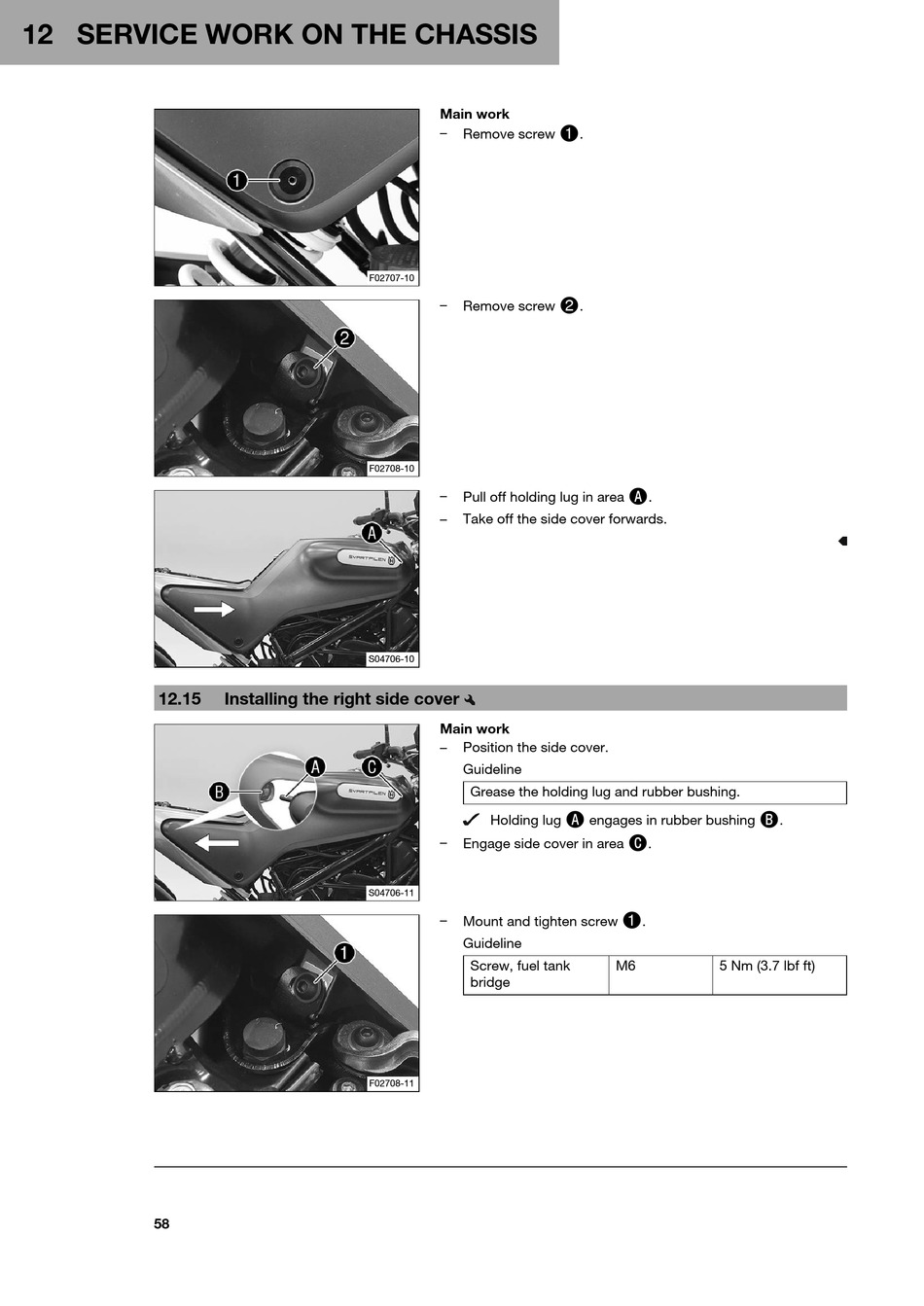

12 SERVICE WORK ON THE CHASSIS
12.15
58
F02707-10
F02708-10
S04706-10

Installing the right side cover

S04706-11
F02708-11
Main work
–
1
Remove screw .
–
2
Remove screw .
–
Pull off holding lug in area
–
Take off the side cover forwards.
Main work
–
Position the side cover.
Guideline
Grease the holding lug and rubber bushing.
A
Holding lug engages in rubber bushing
–
Engage side cover in area
–
Mount and tighten screw
Guideline
Screw, fuel tank
bridge
A
.
B
.
C
.
1
.
M6 5 Nm (3.7 lbf ft)
