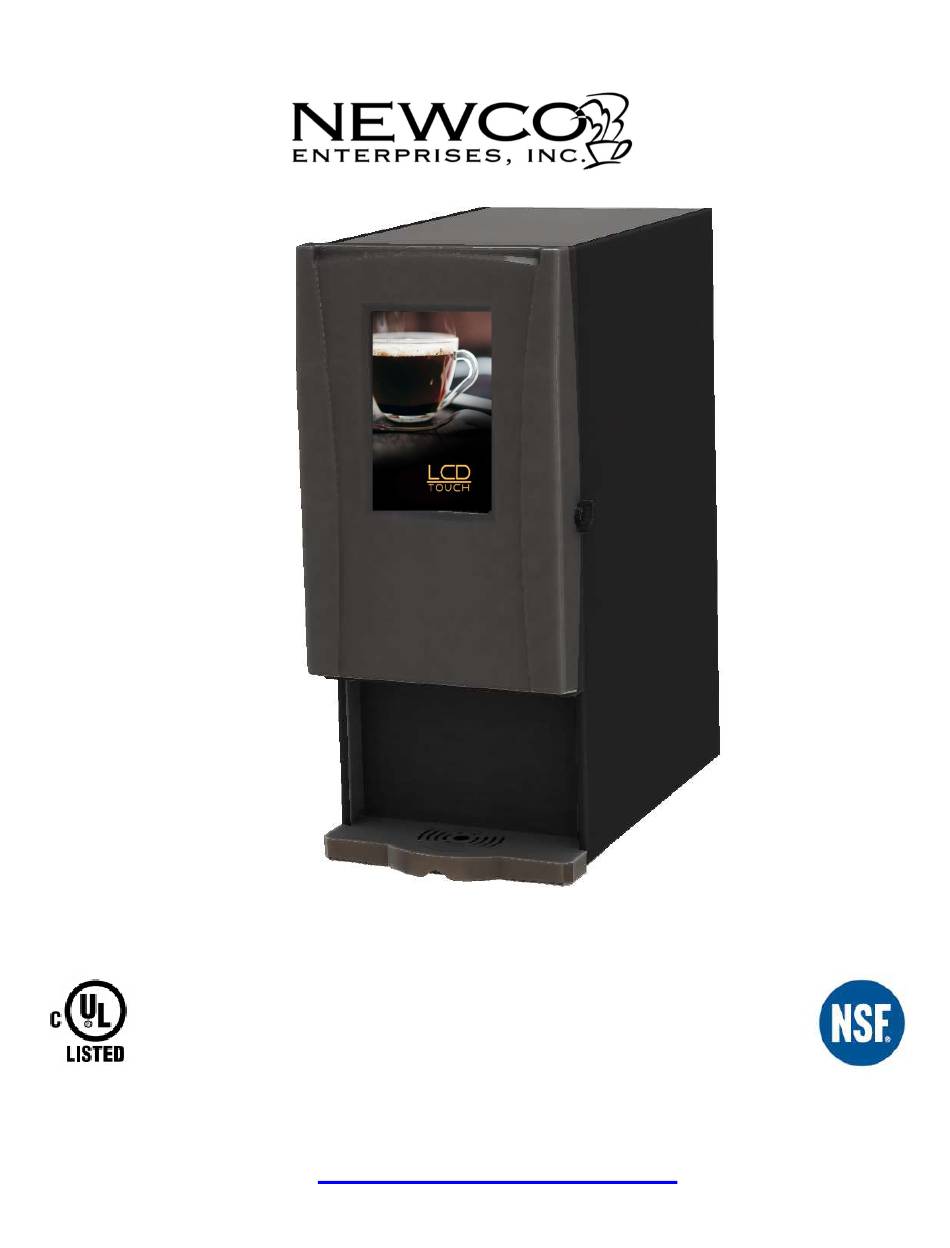

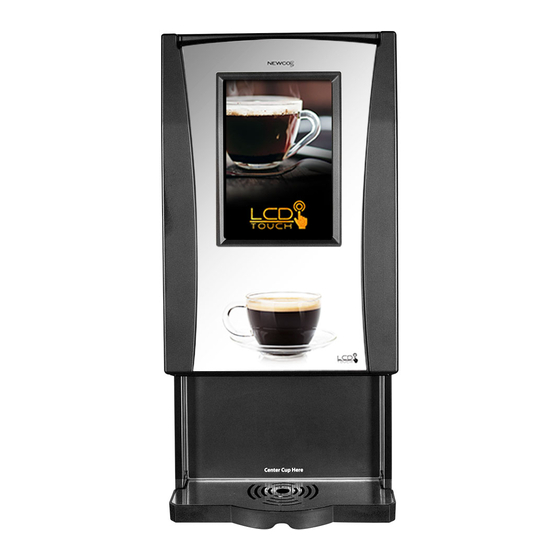

- Page 1 PN 122117 REV. 2-25-22 DB Lcd Touch Operating Instruction Manual Model LCD-TCH Including Touchless QR Code Capabilities 1-800-325-7867 3650 NEW TOWN BLVD ST. CHARLES MO 63301 WWW.NEWCOCOFFEE.COM...
-
Page 2: Table Of Contents
Table of Contents Newco Warranty ............. 4 Machine Dimensions & Specifications ....5 Machine Features ..........6 Plumbing Connections .......... 7 Electrical Hook-Up ..........7 Installation Instructions ........8 Product Installation Procedure ......9 Machine Startup Instructions ......10 Brewing Drinks ............. 11 Drink Submenu ............ - Page 3 Warning Labels NOTICE: Read and follow all notices posted on this machine. Do not damage or destroy these notices as they are for your protection WARNING DO NOT OVERLOAD CIRCUIT. ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. ...
-
Page 4: Newco Warranty
This warranty is conditioned on the Buyer 1) giving Newco prompt notice of any claim to be made under this warranty by telephone at (800) 556-3926 or by writing to 3650 New Town Blvd, Saint Charles, MO 63301;... -
Page 5: Machine Dimensions & Specifications
Machine Dimensions & Specifications 120 VAC-1600W HEATER-15A USA POWER SUPPLY 120 VAC-1400W HEATER-15A CANADIAN POWER SUPPLY 120/240VAC-3500W HEATER-15A POWER SUPPLY 6-20 OZ CUP SIZE TEMPERATURE RANGE 140-205F DRIP TRAY PRODUCT & SELECTION DRIP TRAY SWITCH GRATE & DISPLAY WATER SCANNER/ INLET READER &... -
Page 6: Machine Features
Machine Features TOUCH SCREEN OPERATION CUSTOMIZED LOGO SCREEN DECAF BUTTON SWITCHES TO DECAF BIB PRE-PROGRAMMED DRINK RECIPES 6-8-10-12-16-20 OUNCE DRINK CHOICES CUP SELECTION MENU CUSTOM CALL FOR SERVICE NUMBER POWER SAVE & POWER DOWN OPTION ... -
Page 7: Plumbing Connections
Plumbing Connections Plumber’s Installation Instructions CAUTION: Disconnect Power to machine before proceeding with plumbing installation. Attach water line to water filter, rear of machine. Flush water line before installing machine. Machine should be connected to COLD WATER LINE ONLY. Water pressure should be at least 40 lbs. For less than a 25 ft run, use 1/4" copper tubing and connect to 1/2"... -
Page 8: Installation Instructions
Installation Instructions WARNING: - Read and follow installation instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the nameplate serial tag. Machine must be on a flat and level surface. Plug or wire in machine to appropriate voltage as noted on the brewer serial tag. -
Page 9: Product Installation Procedure
Product Installation Procedure Open product box and remove the BIB outlet, Fig. 1. Remove cardboard circle and seat coffee outlet in box cutout as shown in Fig. 2. Remove the plastic insert from the BIB fitment as and attach product fitting shown in Fig 3. -
Page 10: Machine Startup Instructions
Machine Startup Instructions Ensure that there is a proper water supply connected to the machine and water is turned on. Ensure that the machine is plugged into a proper power outlet and there is power supplied to the machine. Turn machine power switch on, machine should start filling, will shut off when full. -
Page 11: Brewing Drinks
Brewing Drinks To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection , choose a cup size and press “Brew”... -
Page 12: Drink Submenu
Drink Submenu Cup Size Indicator* *(Shows Ounces if Coffee selected--See Strength Drink Selection Indicator Menu Page14 ) Cup Size Selections Cup Strength Small –Medium- Selections Large* Use to Change Mild –Regular- Bold Cup Size Use to Change Default 8-10-12 Coffee Strength Default Regular Brew Return... - Page 13 Total Water Usage OFF, Dispense Only, Always On Water filter Reset Total Gallons of water Default is Dispense Only Primary Newco Server Select this after changing dispensed* (Future Use) filters to reset water filter Global Ratio (Reg & Decaf)
- Page 14 Programming-Cont’d. Drink Selection Menu Drink Selection Menu Ability to turn Drink Selections and/or Cup Sizes On or Off Cup Size Choices are 6-8-10-12-16-20 Ounces or OFF Drink Strengths are Mild-Regular-Bold Iced & Espresso Drinks can be turned Off or Default Cup size Determines which cup size will Dispense by Default Ounces Displayed Cup size in Ounces or Small Medium Large...
- Page 15 Programming-Cont’d SECONDARY PROGRAMMING MODE (SERVICE MENU) RECIPES AND CALIBRATION TAP 3 TIMES ON CENTER OF “ ” THEN TAP 3 TIMES ON CENTER OF “ ” TO ENTER SECONDARY PROGRAMMING MODE IF A BREWING ICON IS ACCIDENTLY TOUCHED USE THE RETURN ARROW TO TRY AGAIN CALIBRATION Recipe Entry—See Page 16...
- Page 16 Programming-Cont’d NOTE Factory Reset Will NOT Change Recipes to Default Values SCROLL THROUGH RECIPES BY Note: Changing the SELECTING RECIPE values in these NUMBER AS SHOWN recipes can result THEN USE PLUS in changes in cup AND MINUS (+ -) volume and taste BUTTONS TO profile and should...
-
Page 17: Custom Logo-Wi-Fi Setup
Custom Logo-Wi-Fi Setup SELECT NETWORK TAP 3 TIMES ON CENTER OF “D” SELECT LOCAL SETTINGS TO ENTER PROGRAMMING MODE SETUP TO ENTER TABLET SETTINGS SCREEN 1. PRESS “Wi-Fi” ICON TO 2. TURN “WI-FI” ON ACCESS WIFI SETUP & CONNECT TO LOCAL WIFI 4. -
Page 18: Install Custom Logo (Sleep Screen)
Install Custom Logo (Sleep Screen) (ANDROID VERSION) THIS ADDRESS IS UNIQUE FOR EVERY MACHINE. NOTE THAT IT IS USED FOR THE HOST ADDRESS WHEN SETTING UP COMMUNICATION SITE Install Logo Instructions-Custom Sleep Screen (Android Version) 1. OPEN THE APP AND COPY SETTINGS INSTALL AN FTP FILE TRANSFER APP ONTO A LOCAL PHONE OR FROM BISTRO TOUCH-SAVE SETUP... - Page 19 Install Logo Instructions-Custom Sleep Screen (APPLE IOS VERSION) OPEN THE APP AND SLELCT FTP/FTPS/ SFTH, ADD SERVER, INSTALL THE “ITRANSFER” APP ONTO A LOCAL PHONE OR TABLET. CONNECT THE LOCAL PHONE OR TABLET TO THE SAME WIFI NETWORK AS THE BISTRO-TOUCH. APPLICATION EXAMPLE SHOWN IS “ITRANSFER”...
- Page 20 Install Logo Instructions-Custom Sleep Screen Cont’d 7. STATUS ON BISTRO- 9. SELECT THE 8. TO SELECT A FILE TO TOUCH MACHINE CHANGES DIRECTORY WHERE THE TRANSFER SELECT THE TO Connected-Waiting for IMAGE FILE TO BE UPLOAD BUTTON transfer TRANSFERRED RESIDES 12.
-
Page 21: Programming Qr Codes
Programming QR Codes FOR “TOUCH AND COMBINED” FOR “TOUCHLESS” ONLY OPERATIONS: OPERATION: TAP 3 TIMES ON CENTER OF THE TAP 3 TIMES IN TOP LEFT “L” CORNER. THEN TAP 3 TIMES ON CENTER OF THEN TAP 3 TIMES ON BOTTOM THE “D”... - Page 22 Programming QR Codes Cont’d QR Screen for “Touchless Combined”. Use smartphone to get code for recipes. Follow instructions on menu. QR Screen for “Touchless On”. Follow the instructions in above menu. The instructions will take you to the next page’s menus and further instructions. Screen for “Touchless Off”.
- Page 23 Programming QR Codes Cont’d NOTE-FRENCH AND ENGLISH LANGUAGES CAN BE TOGGLED FROM THIS SELECTION After choosing the recipe, the cup size, strength of the drink and in this case regular or decaf coffee from the above settings can be made. If the chosen recipe is incorrect, press the return arrow in the top left corner to return to the previous The following menus &...
- Page 24 Programming QR Codes Cont’d Hold the QR Code up to the scanner on the door. Recipe will begin to brew automatically and shut off once the scanner recognizes the Code. If for any reason the brewing process needs to be stopped press the CANCEL button in the lower right corner.
- Page 25 Programming QR Codes Cont’d This screen lets you know that When this screen appears, your coffee your selection is brewing and has finished brewing. You may now remove your finished drink. being delivered into your cup. You have the option to CANCEL the brewing process.
-
Page 26: Cleaning & Sanitizing Instructions
Cleaning & Sanitizing Instructions 1. Remove product from storage area and disconnect BIB connectors as shown in figures 1 & 2. Fig. 1 Fig. 2 2. Place an empty container in the dispense area of the machine as shown in figure 3. 3. -
Page 27: Cleaning Instructions
Cleaning Instructions 1. Remove the product BIBs from the machine and connect a BIB of cleaning solution to the PUMP 1 (COFFEE) BIB connector as shown in figs. 1-4 pages 26. 2. Enter Cleaning and Priming Menu (See Page 14) 3. -
Page 28: Weekly Sanitizing Instructions
They keep the check valve open during flushing. Adapters are available for purchase from Newco Enterprises, Inc. (1-800-325-7867) Newco also supplies BIB cleaning solutions that fit both Scholle and QCD connectors. P/N 320282 QCD FLUSH ADAPTER P/N 120508 SCHOLLE FLUSH ADAPTER... -
Page 29: Service Notes & Troubleshooting
Service Notes & Troubleshooting Call Newco Enterprises, Inc. for Software updates. (1-800-325-7867) These error screens will display a service phone number to call if entered in “Setup” Menu (Page 13) For QR Error Codes, see page 30. Display Reads Possible Cause(s) - Page 30 Service Notes & Troubleshooting “QR” Mode The following Error Codes may appear if the codes are not entered correctly or there is an issue with the scanner unable to read the code. If there are issues, please call Newco Tech Services (1-800-556-3926) for help.
-
Page 31: Wiring Diagram 120 Vac
Wiring Diagram 120 VAC... -
Page 32: Wiring Diagram 240 Vac
Wiring Diagram 240 VAC...
