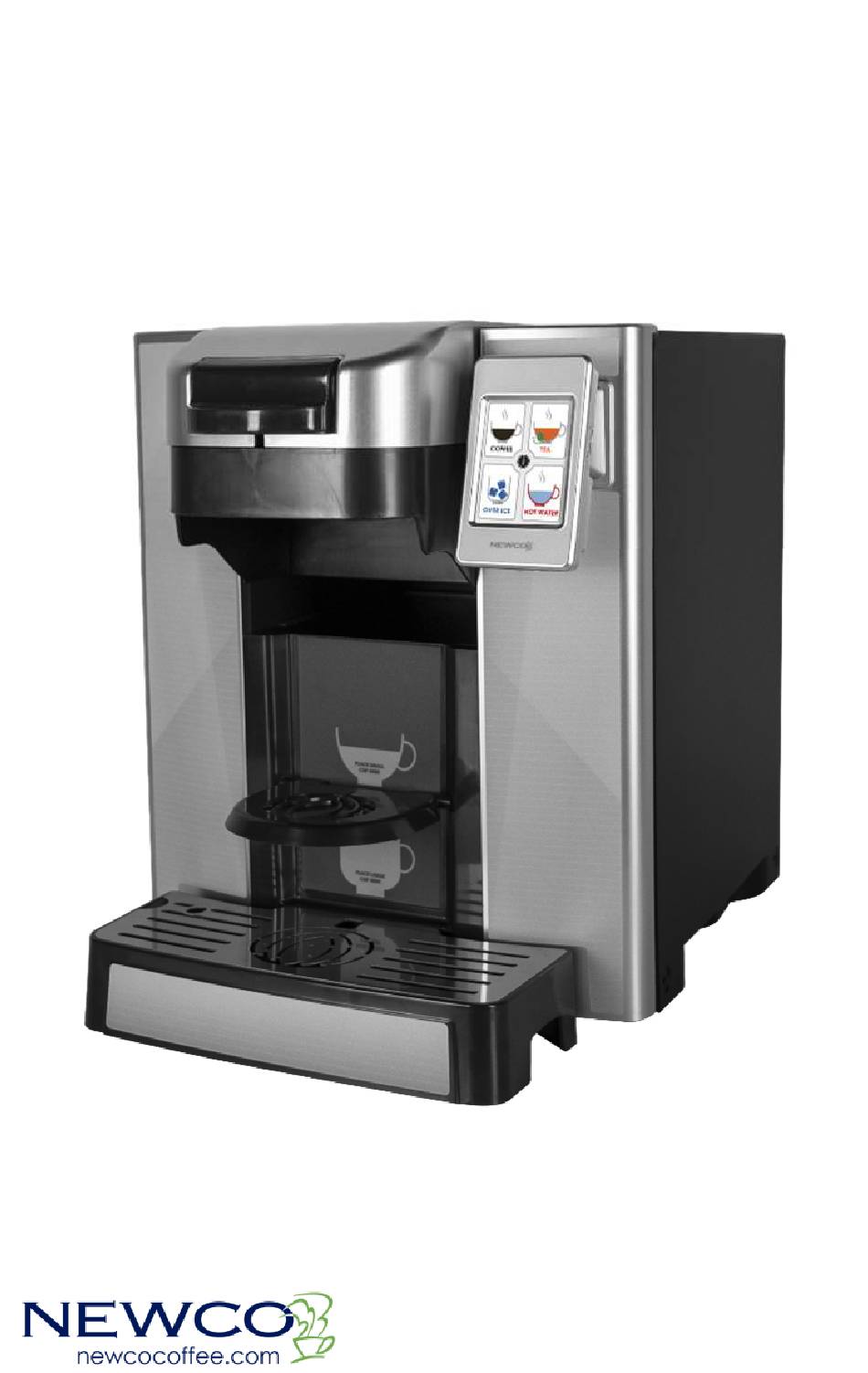

- Page 1 ACCESS INSTRUCTIONS PN 153264 20230519 MMF LITTLE JOE COMPONENT ACCESS All servicing and repairs are to be done by an authorized Service Technician. Technical Service: 1-800-556-3926...
-
Page 2: Table Of Contents
TABLE OF CONTENTS MAIN COMPONENT ACCESS DISASSEMBLY ------------------------------------ 3 REASSEMBLY ------------------------------------- 7 BREW MECH COMPONENT ACCESS DISASSEMBLY ----------------------------------- 12 REASSEMBLY ------------------------------------ 17 COMPLETE DISASSEMBLY AND REASSEMBLY INSTRUCTIONS DISASSEMBLY ----------------------------------- 20 REASSEMBLY ------------------------------------ 28 WARNING: Unplug machine power and read through all instructions carefully before servicing your machine. -
Page 3: Main Component Access
LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 MAIN COMPONENT ACCESS DISASSEMBLY Remove drip tray, then Remove 3 screws (circled) remove waste bin. then slide the back panel down about 1/4” to disengage the locking tabs, then pull away from the machine. - Page 4 Lift the right front panel up Press on the locking tab on about 1/4”, then pull away the harness connector and from the machine, pull to release it from the disengaging locking tabs. Be display board. careful with display wiring. Remove 3 screws (circled).
- Page 5 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Side view...
- Page 6 Back view Technical Service: 1-800-556-3926...
-
Page 7: Reassembly
LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 REASSEMBLY Detail of side panel hooks Right side panel hooks and machine slots. inserted into machine slots. Align upper and lower side Insert and tighten 3 screws. panel hooks. Slide right side panel forward about 1/4” to the front of the machine to lock in place. - Page 8 Open brew mechanism for Detail of slots on machine reassembly of front right and right side panel. panel. Front panel hook detail. Push wire connection into display board, ensure the locking tab is on the right and the connector is secure.
- Page 9 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Place front panel flush Slide front panel down into against the machine, with place, engaging panel the top of the front panel hooks with slots on the about 1/4” above the top machine and on the side of the machine cover.
- Page 10 Insert and tighten 3 screws. Replace Waste Bin and Drip Tray. Technical Service: 1-800-556-3926...
- Page 11 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519...
-
Page 12: Brew Mech Component Access
BREW MECH COMPONENT ACCESS This is a separate disassembly process from the Main Component Access process. Follow these instructions if you need to access any of the parts associated with the brew mechanism. For further details on these parts, see the Parts List on our website. - Page 13 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Insert a screwdriver under Loosen 4 screws (circled), the brew mech handle to then slide silver brew mech gently pry the trim plate cover upwards to clear the away from the brew mech. screws from the keyholes.
- Page 14 To be able to disengage the Then, while holding the handle and properly remove brew mech cover in the brew mech cover, close the place, close the brew brew mech halfway, then tilt mechanism to clear the the back of the brew mech handle.
- Page 15 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Tilt the brew mech cover If bushings come front up and slide it out of unattached from the brew the bushing guide. mech cover, press them back on once the brew mech cover is free from the machine.
- Page 16 Technical Service: 1-800-556-3926...
-
Page 17: Reassembly
LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 REASSEMBLY With the brew mechanism With the bushing guide closed, lift the panel panel lifted, align the containing the bushing bushings into the bushing guide. guide. Tilt the brew mech cover Note: you will need to align front up and slide it into the the screws on the brew bushing guide. - Page 18 Raise the brew mechanism Fully open the brew to meet the brew mech mechanism and brew mech cover, aligning the handle cover together to view the into the front slot in the brew screws and keyhole slots. mech cover. Align the screws into the Slide brew mech cover widest part of the keyhole down and back into the...
- Page 19 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Insert and tighten two Tighten 4 keyhole screws. circled screws. If screws do not tighten, ensure the brew mech cover screws are fully seated into the brew mechanism keyholes. Note: the trim plate will Reattach trim plate and need to set into trim plate handle cover by inserting...
-
Page 20: Complete Disassembly And Reassembly
COMPLETE DISASSEMBLY AND REASSEMBLY Before beginning the complete disassembly process, check the Parts List on our website to locate components. DISASSEMBLY Remove drip tray, then Remove 3 screws (circled) remove waste bin. then slide the back panel down about 1/4” to disengage the locking tabs, then pull away from the machine. - Page 21 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Lift the front panels up Press on the locking tab on about 1/4”, pull away from the harness connector and the machine, disengaging pull to release it from the the locking tabs. Be careful display board.
- Page 22 Insert a screwdriver under Loosen 4 screws (circled), the brew mech handle to then slide and lift silver hood gently pry the trim plate upwards to clear the screws away from the brew mech. from the keyholes. Keyhole detail Technical Service: 1-800-556-3926...
- Page 23 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 To be able to disengage the Then, while holding the handle and properly remove brew mech cover in the brew mech cover, close place, close the brew the brew mech halfway, then mechanism to clear the tilt the back of the brew mech handle.
- Page 24 Tilt the brew mech cover If bushings come front up and slide it out of unattached from the brew the bushing guide. mech cover, simply press them back on once the brew mech cover is free from the machine. Open reservoir lid, then lift Side reservoir handle up, using the handle, to location.
- Page 25 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Remove 1 screw (circled) Remove 1 screw (circled) from the left side panel near from the left side panel near the back of the machine. the front of the machine. Loosen 2 screws (circled). Loosen 1 screw (circled), Slide the reservoir detection then slide L bracket to the...
- Page 26 Gently pull up about 1/4” on Lift bushing guide panel the top cover to release then slide top cover about panel tabs. 2” towards the back of the machine. Lift top cover up to remove. Remove 3 screws (circled), Remove the vent tube from then slide left side panel the left side panel to about 1/4”...
- Page 27 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519...
- Page 28 Technical Service: 1-800-556-3926...
- Page 29 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519...
-
Page 30: Reassembly
REASSEMBLY Insert vent tube into the left Align tabs on left side panel side panel, making sure it is with slots on the machine, fully seated. with the panel tabs about 1/4” above and to the left of the machine slots. After aligning the left side Note: reservoir inlet must be panel tabs, slide down and... - Page 31 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 With bushing guide panel Lower and slide the top lifted, align the top cover cover forward to align cutout around the bushing locking tabs. guide panel. Ensure screw hole tabs are Gently press down to snap over the stainless steel plates top cover into place, on the front and back of the...
- Page 32 Set the reservoir detection Insert and tighten one screw switch fully to the right to set on the left side panel near it into the left side panel the front of the machine, opening. Then tighten the 2 gently pressing down on the screws on its bracket.
- Page 33 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Install reservoir into its With the brew mechanism location on the left side closed, lift the bushing guide panel. Ensure reservoir is fully panel. seated, then close the lid. With the bushing guide Tilt the brew mech cover panel lifted, align the front up and slide it into the...
- Page 34 Note: You may need to slide the silver hood back and forth to catch the keyholes with the screws. Note: you will need to align the screws on the brew mech cover with the keyholes on the brew mechanism. Raise the brew mechanism Fully open the brew to meet the brew mech mechanism and brew mech...
- Page 35 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 Align the screws into the Slide brew mech cover widest part of the keyhole down and back into the slots and press the brew machine to fully seat the mech cover onto the brew screws into the narrow part mechanism.
- Page 36 Note: the end of the trim Reattach trim plate and plate will need to slide into handle cover by inserting trim plate retaining notches, and tightening 4 screws. pointed to with arrows in the next image. Detail of side panel hooks Right side panel hooks and machine slots.
- Page 37 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 MAIN COMPONENT ACCESS DISASSEMBLY Remove drip tray, then Remove 3 screws (circled) remove waste bin. then slide the back panel down about 1/4” to disengage the locking tabs, then pull away from the machine.
- Page 38 Lift the right front panel up Press on the locking tab on about 1/4”, then pull away the harness connector and from the machine, pull to release it from the disengaging locking tabs. Be display board. careful with display wiring. Remove 3 screws (circled).
- Page 39 LITTLE JOE ACCESS INSTRUCTIONS PN 153264 20230519 If power cord was removed Align hooks on the sides and from back panel, thread it bottom of the back panel to back through the opening slots on the sides and shown above. bottom of the back of the machine.
