Mark Bric ISOFrame fabric IS-9591 Manual page 2

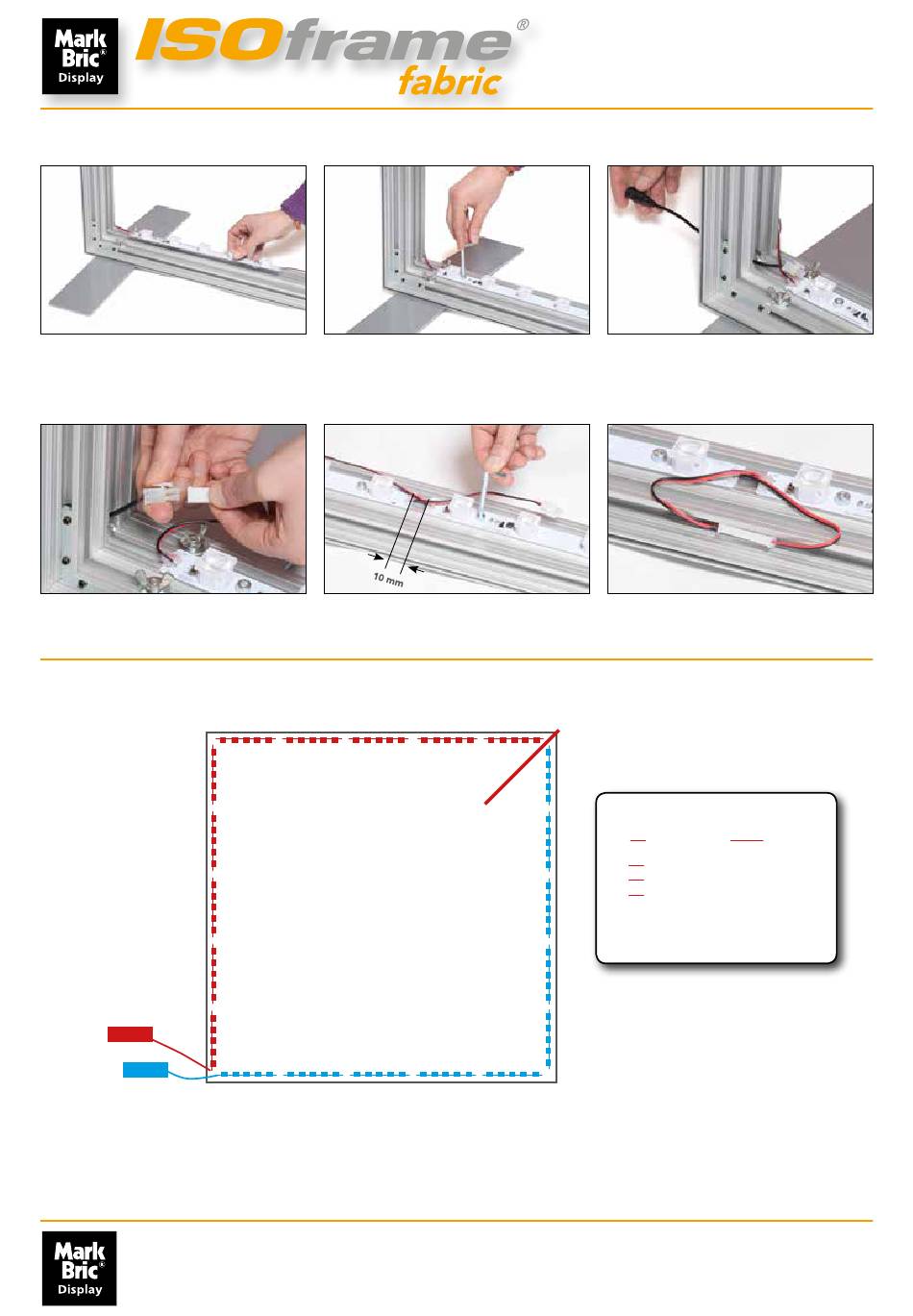

Mount the LED-bar
1
Attach the bar with twist nuts into the centre slot in the
profile.
4
Connect the contacts from the LED-bar to the adaptor
cable.
Connect the LED-bar and transformer
Connection 200 x 200 cm
Consists of :
2 pcs. Transformer
2 pcs. Adaptor cable
20 pcs. LED bars
Transformer 1
Transformer 2
Mark Bric Display Corp.
North America Tel. 800.742.6275 Fax 800.565.9506 E-mail: markbric@markbric.com
Mark Bric Display AB
Worldwide Headquarters Tel. +46 33 480 460 Fax +46 33 480 470 E-mail: display@markbric.se
2
Lock the two screws with the Allen-key.
5
Add more LED-bars and connect with that before,
approx 10 mm from the first one.
Don't connect
the red and blue
3
Insert the adaptor cable in the hole in the profile. Each
hole fits 2 cables.
6
Hide the cable in the side slot and secure it with a tape .
VERY IMPORTANT!
- Do connect more than of LED bars
not 10 pcs.
to each power supply (transformer), item IS-9381.
- Do not put transformers inside the lightbox.
- Do cover the transformers.
not
- Do not put transformers together.
Risk of overheating!
Mark Bric Display can not be held responsible for any misuse,
failure to follow the Mark Bric instructions and/or errors during the
electrical installation of the light boxes.
