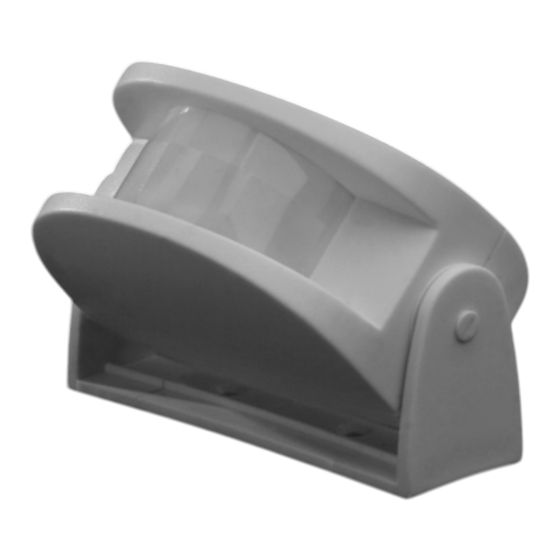

WIRE FREE PIR MOVEMENT
DETECTOR.
SURFACE MOUNTING.
reference: DM SEN R02
INSTRUCTION´S MANUAL
Technical
Power supply: 3 units 1,5 volts batteries type LR03
(not included) with an estimated life over
4 years. (50 detections per day at 25 ºC).
Detection range: 120 º.
Detection field: 6 meters.
Maximum distance to the receiver: 200 meters in open
Frequency: 868,4 Mhz. With PRA>8mWatts.
Working temperature: -0 ºC/+45ºC
Protection degree (housing): IP 20 according to
Luxes: Adjustable between 3 and 100 Lux.
Weight: 100 grams (without batteries).
Consumption (in stand by):
1

CARACTERISTICS

Surface mounting with two screws.
Adjustable detector.
Easy installation. No wired required.
It incorporates a led which switches ON when detecting
movement.
2

DETECTION FIELD

Qué amplitud tiene el área de cobertura del detector de
movimiento?
This type of detector is frequently installed in offices, conference
rooms, hotel corridors, toilets, stair cases, etc.
The recommended place to be installed is at 2 meters high
to cover a maximum distance of 6 meters and an angle of
120 º.
Composite
Page 1
3
field.
EN 60529.
C M Y CM MY CY CMY

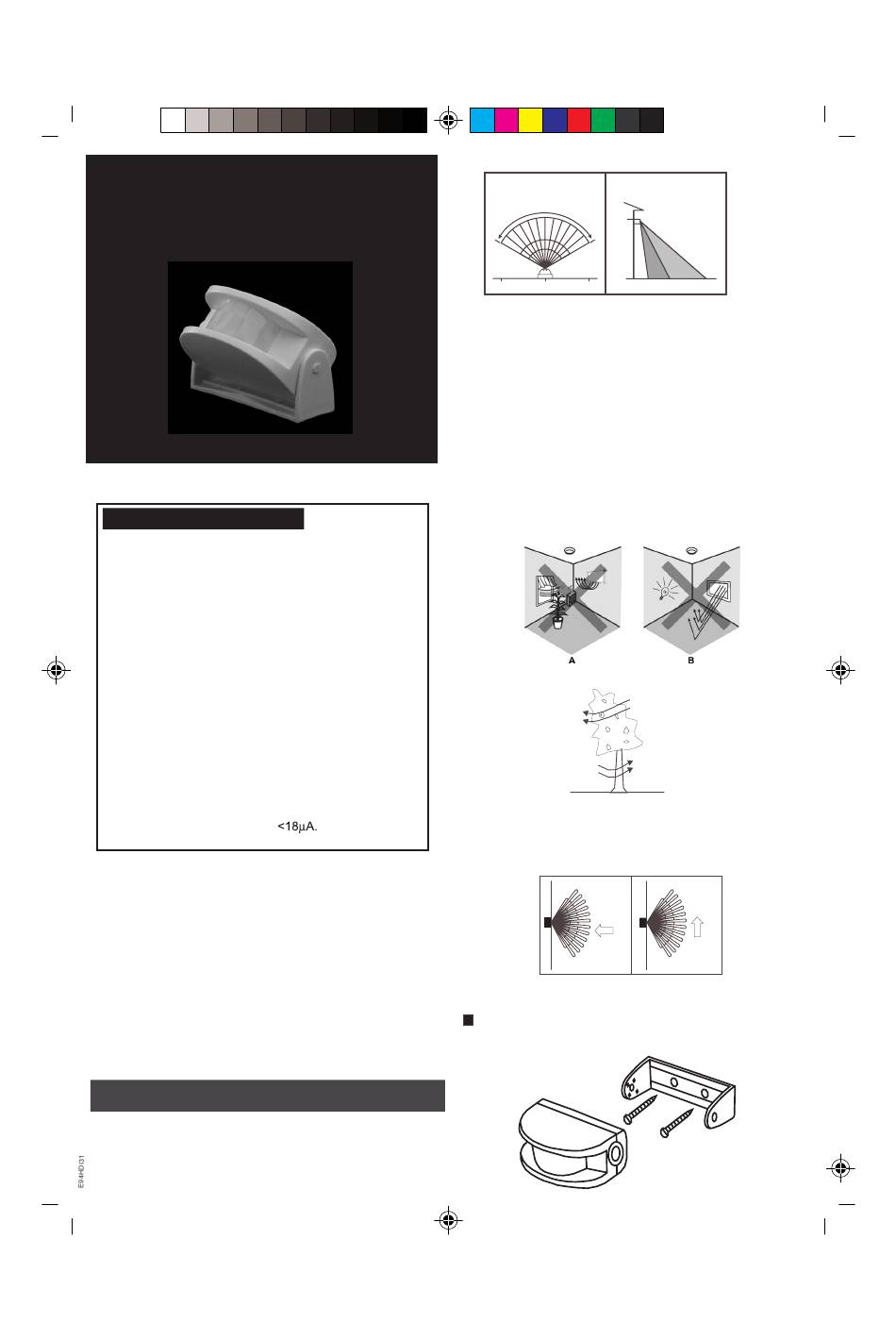

DETECTION AREA
SIDE VIEW TOP VIEW
120
o
2.0M
6M 6M
120º COBERTURA DE
TRES NIVELES DEL CAMPO
PROTECION
DE VISTA REGULABLE

INSTALLATION

A. Selecting the best place:
Due to the fact that the detector responds to temperature
changes, please avoid the following conditions:
Avoid aiming the detector toward object that moves in the wind,
such as bushes or law decorations.
Avoid mounting the detector nearing any heat source, such a
heating vent, air conditioner, dryer vent or the lighting device.
Avoid having the detector toward the area or the object whose
surface is highly reflective or is subject to rapid changing in
temperature..
Avoid the object moving directly toward the motion detector
that bings the less sensitivity of detection. Have the object
move across the pattern zone that brings more sensitivity of
detection. See next figure.
Less sensitivity by
directly moving
toward the motion
detector.
Less
sensitivity
B. Installation procedure:
Fix the base to the chosen surface, wall or ceiling.
Please do it with two screws.
K
0 1,8 3,6 6M
More sensitivity by
crossing the motion
detector.
More
sensitivity
