Summary of Contents for Alienware m17 R5 AMD

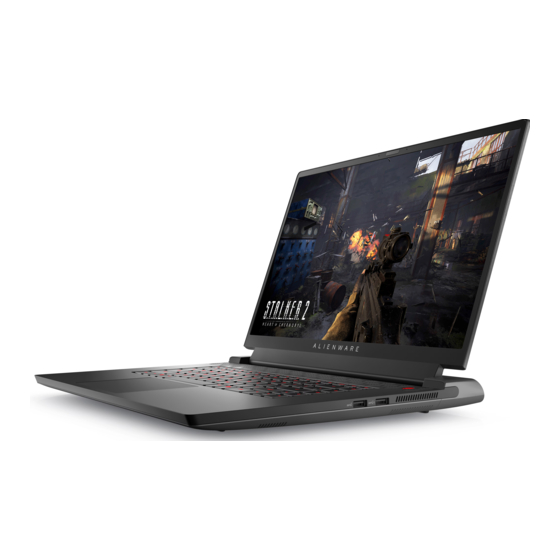

- Page 1 Alienware m17 R5 AMD Setup and Specifications Regulatory Model: P50E Regulatory Type: P50E001/P50E002/P50E003 May 2022 Rev. A01...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Alienware m17 R5 AMD..................4 Chapter 2: Views of Alienware m17 R5 AMD..................5 Front......................................5 Right......................................5 Left......................................6 Top......................................6 Back....................................... 7 Bottom....................................8 Chapter 3: Specifications of Alienware m17 R5 AMD................9 Dimensions and weight................................ 9 Processor.................................... -
Page 4: Chapter 1: Set Up Your Alienware M17 R5 Amd
Set up your Alienware m17 R5 AMD NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Connect the power adapter and press the power button. -
Page 5: Chapter 2: Views Of Alienware M17 R5 Amd
Views of Alienware m17 R5 AMD Front 1. Left microphone Provides digital sound input for audio recording and voice calls. 2. RGB-infrared camera This combined camera supports both infrared Windows Hello facial recognition and standard RGB imaging for photos and videos. -
Page 6: Left
2. USB 3.2 Gen 1 port with PowerShare Connect devices such as external storage devices and printers. Provides data transfer speeds up to 5 Gbps. PowerShare enables you to charge your USB devices even when your computer is turned off. NOTE: If your computer is turned off or in hibernate state, you must connect the power adapter to charge your devices using the PowerShare port. -
Page 7: Back
NOTE: This computer supports AlienFX, which lets you choose from an array of color and transition effects across multiple zones on the computer, including the keyboard and power button. For more information, see Alienware Command Center. Back 1. USB 3.2 Gen 2 (Type-C) port with DisplayPort Connect devices such as external storage devices, printers, and external displays. -
Page 8: Bottom
Bottom 1. Left speaker Provides audio output. 2. Service Tag label The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information. 3. Right speaker Provides audio output. -
Page 9: Chapter 3: Specifications Of Alienware M17 R5 Amd
Specifications of Alienware m17 R5 AMD Dimensions and weight The following table lists the height, width, depth, and weight of your Alienware m17 R5 AMD. Table 1. Dimensions and weight Description Values Height: Front height 14.62 mm (0.57 in.) Rear height 22.60 mm (0.89 in.) -
Page 10: Operating System
Your Alienware m17 R5 AMD supports the following operating systems: ● Windows 11 Home, 64-bit ● Windows 11 Pro, 64-bit Memory The following table lists the memory specifications of your Alienware m17 R5 AMD. Table 4. Memory specifications Description Values... -
Page 11: External Ports
NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support. Ethernet The following table lists the wired Ethernet Local Area Network (LAN) specifications of your Alienware m17 R5 AMD. Table 7. Ethernet specifications Description Values Model number ●... -
Page 12: Wireless Module
Values Transfer rate ● RTL8111H: 10/100/1000 Mbps ● RTL8125: 10/100/1000/2500 Mbps Wireless module The following table lists the Wireless Local Area Network (WLAN) module supported on your Alienware m17 R5 AMD. Table 8. Wireless module specifications Description Values Model number... -
Page 13: Storage
AMD Radeon RX 6700M and RX 6850M XT graphics card The primary drive of your Alienware m17 R5 AMD varies with the storage configuration. The primary drive of your computer is the M.2 drive where the operating system is installed. -
Page 14: Camera
(F1–F12) changing Function Key Behavior in BIOS setup program. For more information, see Keyboard shortcuts. Camera The following table lists the camera specifications of your Alienware m17 R5 AMD. Table 12. Camera specifications Description Values Number of cameras Camera type ●... -
Page 15: Power Adapter
For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com. Power adapter The following table lists the power adapter specifications of your Alienware m17 R5 AMD. Table 14. Power adapter specifications Description Option one... -
Page 16: Display
CAUTION: Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. Display The following table lists the display specifications of your Alienware m17 R5 AMD. Table 16. Display specifications Description... -
Page 17: Gpu-Integrated
AMD Radeon Graphics Shared system memory AMD Ryzen 7/AMD Ryzen 9 GPU—Discrete The following table lists the specifications of the discrete graphics processing unit (GPU) supported by your Alienware m17 R5 AMD. Table 18. GPU—Discrete Controller Memory size Memory type... -
Page 18: Operating And Storage Environment
GDDR6 AMD Radeon RX 6700M 10 GB GDDR6 Operating and storage environment This table lists the operating and storage specifications of your Alienware m17 R5 AMD. Airborne contaminant level: G1 as defined by ISA-S71.04-1985 Table 19. Computer environment Description Operating... -
Page 19: Chapter 4: Keyboard Shortcuts Of Alienware M17 R5 Amd
Keyboard shortcuts of Alienware m17 R5 AMD NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations. Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. - Page 20 Table 22. List of keys to control audio features Keys Description Mute microphone Mute speakers Increase volume Decrease volume...
-
Page 21: Chapter 5: Low Blue Light
Low blue light WARNING: Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes. Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes. -
Page 22: Chapter 6: Alienware Command Center
Alienware Command Center Alienware Command Center (AWCC) provides a single interface to customize and enhance the gaming experience. The AWCC dashboard displays most recently played or added games, and provides game-specific information, themes, profiles, and access to computer settings. You can quickly access settings such as game-specific profiles and themes, lighting, macros, and audio that are critical to the gaming experience. -
Page 23: Chapter 7: Getting Help And Contacting Alienware
Getting help and contacting Alienware Self-help resources You can get information and help on Alienware products and services using these online self-help resources: Table 23. Alienware products and online self-help resources Self-help resources Resource location Information about Alienware products and services www.alienware.com...
