Summary of Contents for Soleus Air KFHHP-09-OD

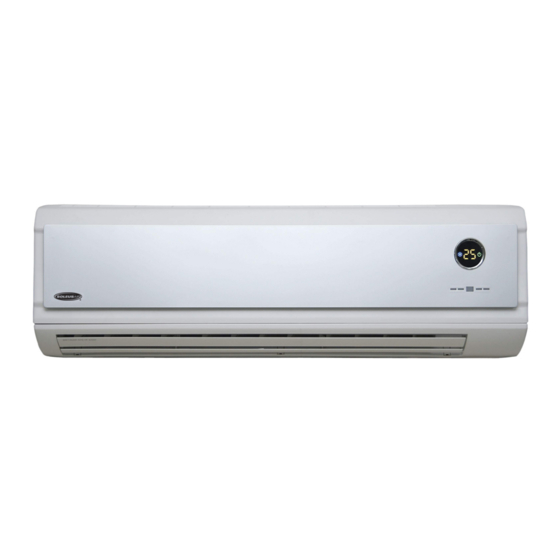

- Page 1 Wall Mounted Mini Split Heat Pump Air Conditioner OPERATING AND INSTALLATION MANUAL Model: KFIHP-09-ID / KFHHP-09-OD KFHHP-12-ID / KFHHP-12-OD Indoor Unit. Outdoor Unit. Thank you for selecting Soleus Air. To ensure proper operation, please read this manual and keep it for future reference.
-
Page 2: Table Of Contents
Electrical Schematic Diagram (Indoor Unit)…………………………...……………...………….22 Electrical Schematic Diagram (Outdoor Unit)………..……………………….……………………23 WARRANTY…………………………………………………………………………………………24 Danger Caution. Thank you for selecting Soleus Air. To ensure proper operation, please read this manual and keep it for future reference. TABLE OF CONTENTS This mark indicates a direction/procedure that... -
Page 3: Structure And Operation
Structure and Operation ◆Name of Each Part - 1 -... -
Page 4: The Instructions Before Use
★ Grounding: The unit must be properly grounded. ★ Don’t attempt to repair the air conditioner by yourself. There are no user replaceable parts. Please contact your authorized dealer. ★ Never block the air inlet or outlet of indoor and outdoor unit. - Page 5 ★ Adjust the air flow and direction properly. When the air conditioner is running, you can press the SWING key on the remote control to adjust the guide louver and change the direction of air flow.
-
Page 6: Specifications And Technical Data
1. All above are tested and certified to ETL specification. 2. All above could be changed without notice; the latest specifications are on the nameplate of your air conditioner. When the unit is restarted after it stopping, it can automatically resume the last running mode, and the outdoor unit starts later. -
Page 7: Remote Control Operation
◆Remote Control Operation Function-Remote control Note: • Don't drop the remote control. • Don't place the remote control in a location exposed to direct sunlight. • When the unit is restarted after stopped, it will automatically resume its last running mode, and the outdoor unit will start there after. -
Page 8: Remote Control Operation
◆Remote Control Operation (Continued) Liquid Crystal Display. It shows all set contents. ON/OFF Button Press ON. Press OFF. T-ON Button. When pressing this button once, enter into T-ON setting, the icon of T-ON flash, every press of TIME+, the time of T-ON will be increased 1min. -
Page 9: How To Insert Batteries
◆How to Insert Batteries 1. Remove the cover from the back of the remote control. 2. Insert the two batteries (Two AAA dry-cell batteries). 3. Re-attach the cover. NOTE: • Don’t mix different batteries. • Remove batteries when not in use for a longtime. •... -
Page 10: Operation
◆Operation The general procedure: 1. Power the unit and a buzzer will sound. Power/Run indication is red and the air conditioner is waiting to run. (Note: Once the air conditioner plugs to power supply or receives the signal of remote control, the buzzer will send out the desirable sound.) -
Page 11: Installation
◆Installation Location Indoor Unit 1. The inlet and outlet should not be covered so that the outflow air can reach all parts of the room. 2. Install in a location from which the condensation water can be drained out conveniently and that is permitting easy connection with the outdoor unit. -
Page 12: Electric Wiring
1. The air conditioner is class 1 appliance, so it must connect with ground reliably. 2. The yellow-green wires in the air conditioner are grounding wires and can’t be used for other purposes. 3. The grounding-resistance should conform to the requirement of IEC Standard. -
Page 13: Installation Dimension Diagram
◆Installation Dimension Diagram Important Notes The installation must be done by trained and qualified service personnel. 112.6 inch 212.6 inch - 11 -... -
Page 14: Installation
◆Installation • Install the rear panel 1. Always mount the rear panel horizontally. Because the mouth of drainage pipe is at the left side and the left side of the rear panel is better to adjust slightly lower. 2. Fix the rear panel on the selected location with screws supplied with the unit. -
Page 15: Installation
◆Installation 4. Connect the Neutral wire of the power connection cables to the “N (1)” terminal of the terminal board, connect the Signal wire to the “2” terminal, and connect the live wire to the“3”terminal and connect the grounding wire to the “ 5. -
Page 16: Install The Indoor Unit
◆ Install the Indoor Unit 1. When routing the piping and wiring from the left or right side of the indoor unit, cut off the tailings from the chassis in necessary (shown in Fig.4 (a), (b) and (c)). (1) Cut off the tailings 1 when routing the wiring only. (2) Cut off the tailings 1 and tailings 2 (or tailings 1, tailings 2 and tailings 3) when routing both the wiring and piping. -
Page 17: Install The Outdoor Unit
◆Install the Outdoor Unit • Install the connection pipe 1. Align the center of the piping flare with the valve. 2. Screw in the flare nut by hand and then tighten the nut with spanner and torque wrench refer to right figure. - Page 18 ◆Install the Outdoor Unit • Air Purging and Leakage Test 1. Remove the flare nuts of charging end from gas valve. 2. Connect the charging hose in the middle to the vacuum pump, then Low-pressure (Lo) end should be connected to charging end of gas valve.
-
Page 19: Test Operation And Check After Installation
◆Test Operation and Check after Installation 1. Before Test Operation (1) Do not switch on power before installation is finished completely. (2) Electric wiring must be connected correctly and securely (3) Cut-off valves of the connection pipes should be opened. (4) All the impurities such as scraps must be cleared from the unit. -
Page 20: Care And Maintenance
Never sprinkle water on the indoor unit and the outdoor unit for cleaning because it can cause an electric shock. Volatile Liquid (e.g. thinner or gasoline) will damage the air conditioner. (So wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleanser.) Clean the front panel (Don’t remove the front panel when cleaning) -
Page 21: Trouble Shooting
2. Turn main power off. 3. Clean dust from the outdoor unit. ◆Trouble Shooting Warning: Don’t attempt to repair the air conditioner by yourself; it can cause an electric shock or fire. Please check the following items before calling your service technician. Problem Won’t start immediately... - Page 22 Sound of water flow can be heard during operation. Mist is emitted during cooling operation. Creaking noise can be heard when start or stop the unit. Air conditioner does not operate at all. Cooling (Heating) efficiency is not good. Remote control is not operating...
- Page 23 ◆Trouble Shooting Immediately discontinue using the unit and disconnect the power if any of the following occurs: Unusual noise can be heard during operation. Air switch or leakage protection switch often shuts down. Water is leaking from the unit. Electrical lines and power plug are very hot or smoking.
-
Page 24: Electrical Schematic Diagram
Electrical Schematic Diagram ◆Electrical Schematic Diagram (Indoor Unit) Please Insert Diagram in here. - 22 -... -
Page 25: Electrical Schematic Diagram (Outdoor Unit)
◆Electrical Schematic Diagram (Outdoor Unit) Please Insert Diagram in here. - 23 -... -
Page 26: Warranty
Soleus International Inc. warrants the accompanying Soleus Air Wall Mounted Mini Split Heat Pump Air Conditioner (KFIHP-09-ID/KFIHP-09-OD; KFHHP-12-ID/KFHHP-12-OD) to be free of defects in material and workmanship for the applications specified in its operation instruction for the period of labor and parts specified below.
