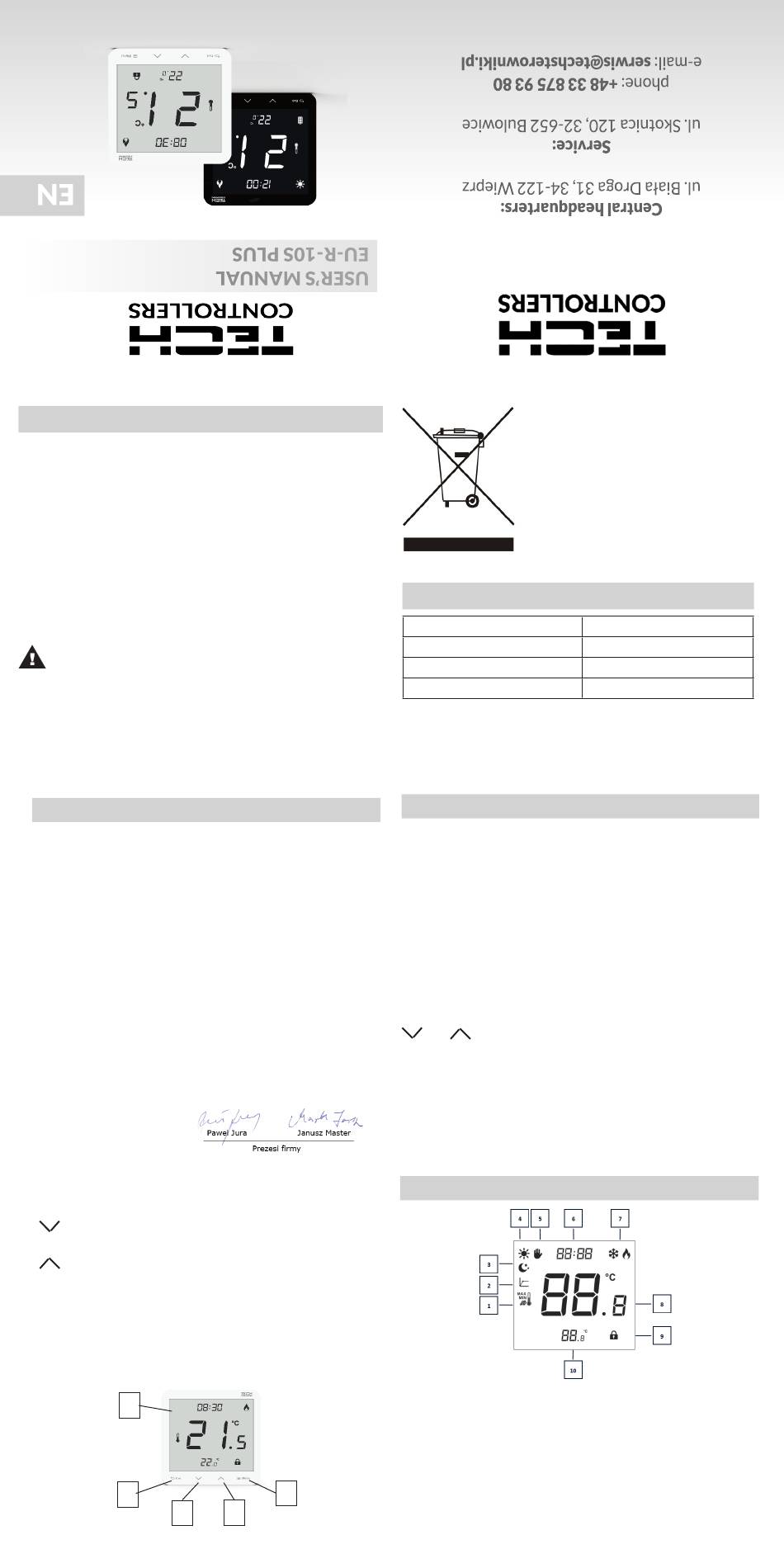

Tech Controllers EU-R-10S PLUS User Manual

Before using the device for the first time the user should read the following
regulations carefully. Not obeying the rules included in this manual may
lead to personal injuries or controller damage. The user's manual should
be stored in a safe place for further reference. In order to avoid accidents
and errors it should be ensured that every person using the device has
familiarized themselves with the principle of operation as well as security
functions of the controller. If the device is to be sold or put in a diff erent
place, make sure that the user's manual is there with the device so that
any potential user has access to essential information about the device.
The manufacturer does not accept responsibility for any injuries or
damage resulting from negligence; therefore, users are obliged to take
the necessary safety measures listed in this manual to protect their lives
and property.
WARNING
• The regulator should not be operated by children.
• Any use other than specifi ed by the manufacturer is forbidden.
EU DECLARATION OF CONFORMITY
Hereby, we declare under our sole responsibility that EU-R-10s Plus
manufactured by TECH, head-quartered in Wieprz Biała Droga 31, 34-
122 Wieprz, is compliant with Directive 2014/35/EU of the European
Parliament and of the Council of 26 February 2014 on the harmonisation
of the laws of Member States relating to the making available on the
market of electrical equipment designed for use within certain voltage
limits (EU OJ L 96, of 29.03.2014, p. 357), Directive 2014/30/EU of the
European Parliament and of the Council of 26 February 2014 on the
harmonisation of the laws of Member States relating to electromagnetic
compatibility (EU OJ L 96 of 29.03.2014, p.79), Directive 2009/125/
EC establishing a framework for the setting of ecodesign requirements
for energy-related products as well as the regulation by the MINISTRY
OF ENTREPRENEURSHIP AND TECHNOLOGY of 24 June 2019 amending
the regulation concerning the essential requirements as regards the
restriction of the use of certain hazardous substances in electrical
and electronic equipment, implementing provisions of Directive (EU)
2017/2102 of the European Parliament and of the Council of 15
November 2017 amending Directive 2011/65/EU on the restriction of
the use of certain hazardous substances in electrical and electronic
equipment (OJ L 305, 21.11.2017, p. 8).
For compliance assessment, harmonized standards were used:
PN-EN IEC 60730-2-9:2019-06, PN-EN 60730-1:2016-10.
Wieprz, 06.11.2020
1. Display
2. EXIT – in the menu, the button is used to return to the main screen
view. In the main screen view, press this button to display the room
temperature value and the floor temperature value
3. – in the main screen view, press this button to decrease the pre-
set room temperature. In the menu, use this button to adjust the button
lock function.
4. – in the main screen view, press this button to increase the pre-
set room temperature. In the menu, use this button to adjust the button
lock function.
5. MENU – press this button to start editing the button lock function.
Hold this button to enter the menu. Then, press the button to navigate
around functions.
1
2
Safety
5
3
4
We are committed to protecting the environment.
Manufacturing electronic devices imposes an
obligation of providing for environmentally safe
disposal of used electronic components and
devices. Hence, we have been entered into a
register kept by the Inspection For Environmental
Protection. The crossed-out bin symbol on a
product means that the product may not be
disposed of to household waste containers.
Recycling of wastes helps to protect the
environment. The user is obliged to transfer
their used equipment to a collection point where
all electric and electronic components.
Technical data
Power supply
Max. power consumption
Temperature adjustment range
Measurement error
DESCRIPTION
The EU-R-10s Plus regulator is intended for controlling the heating
device. Its main task is to maintain the pre-set room/floor temperature
by sending a signal to the heating device or the external controller
managing the actuators, when the room/floor temperature is too low.
Regulator functions:
• Maintaining pre-set floor/room temperature
• Manual mode
• Day/night mode
Controller equipment:
• Front panel made of glass
• Touch buttons
• Built-in temperature sensor
• Possibility of connecting a floor sensor

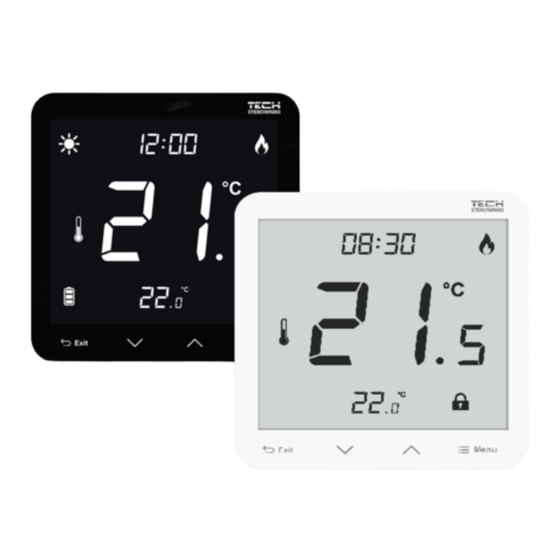

The device is controlled with the use of touch buttons: EXIT, MENU,
and .
MAIN SCREEN DESCRIPTION
1. Maximum/minimum floor temperature - the icon is displayed only
when the floor sensor has been enabled in the controller menu.
2. Hysteresis
3. Night mode
4. Day mode
5. Manual mode
6. Current time
7. Cooling/heating
8. Current temperature
9. Button lock
10. Pre-set temperature
5V DC
0,1W
50C÷350C
± 0,50C
