Summary of Contents for Furniture of America CM7582Q

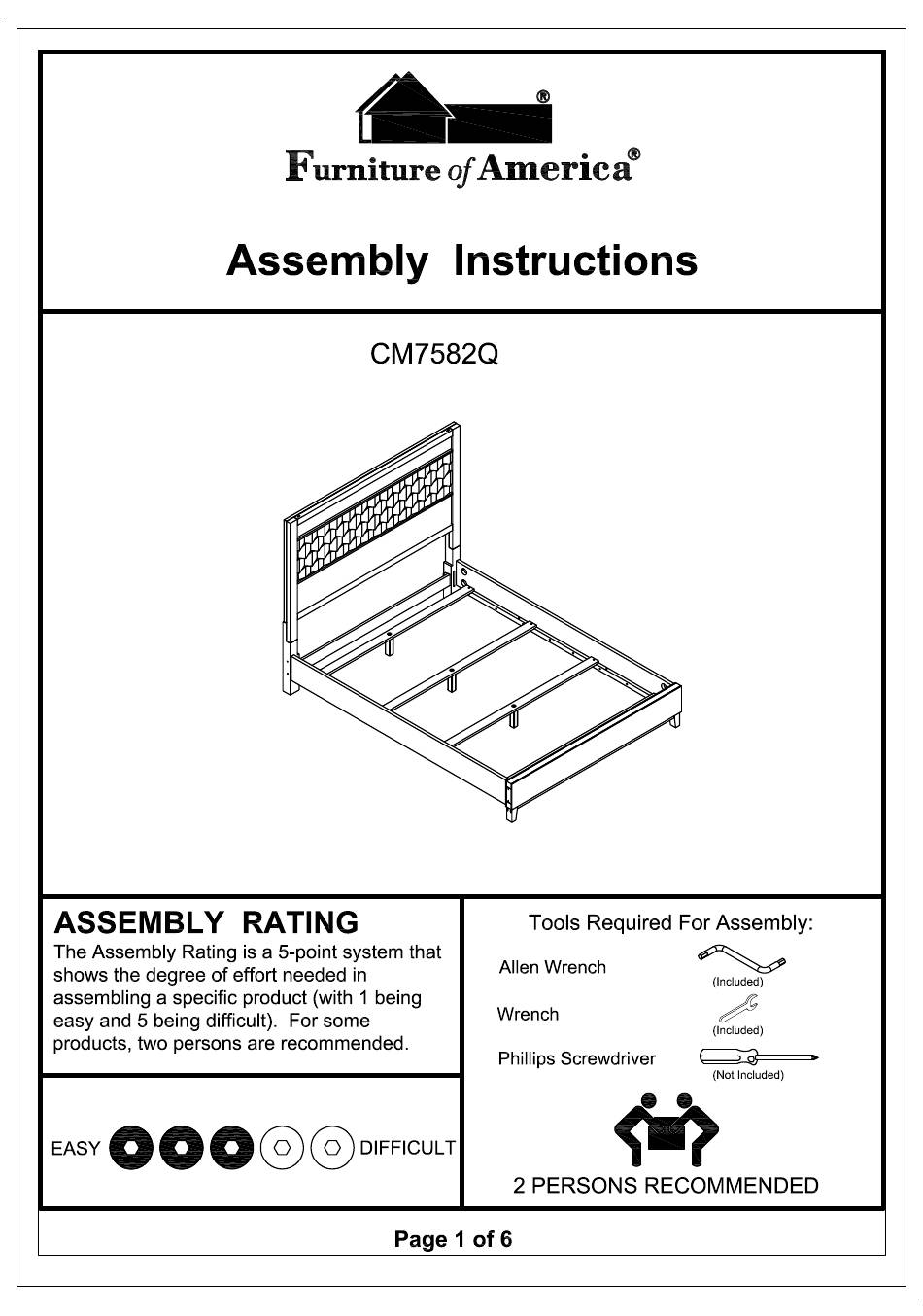

- Page 1 For more information contact our team: service.ec@foagroup.com...
- Page 4 Insert 2 dowels (#K) onto each side of the leg support (#3). Prepare 2 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#A). Align leg support (#3) to the holes of the headboard legs (#2R/L). Secure by using bolts (#A). Prepare 6 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#B).
- Page 5 Attach threaded bolts (#F) to the headboard legs (#2R/L) and footboard (#4). Align side rails (#5) to the threaded bolts, then secure by inserting crest washer (#H) and barrel nuts (#G) to the threaded bolts. Attach support legs (#7) to all slats (#6). Adjust leveler or support leg (#7) according to ground level.
- Page 6 Align slats (#6) to the side rails, then secure by using screws (#J).
- Page 7 For more information contact our team: service.ec@foagroup.com...
- Page 10 Insert 2 dowels (#K) onto each side of the leg support (#3). Prepare 2 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#A). Align leg support (#3) to the holes of the headboard legs (#2R/L). Secure by using bolts (#A). Prepare 6 bolts assembly by inserting lock washer (#C), then flat washer (#D) onto bolts (#B).
- Page 11 Attach threaded bolts (#F) to the headboard legs (#2R/L) and footboard (#4). Align side rails (#5) to the threaded bolts, then secure by inserting crest washer (#H) and barrel nuts (#G) to the threaded bolts. Attach support legs (#7) to all slats (#6). Adjust leveler or support leg (#7) according to ground level.
- Page 12 Align slats (#6) to the side rails, then secure by using screws (#J).
