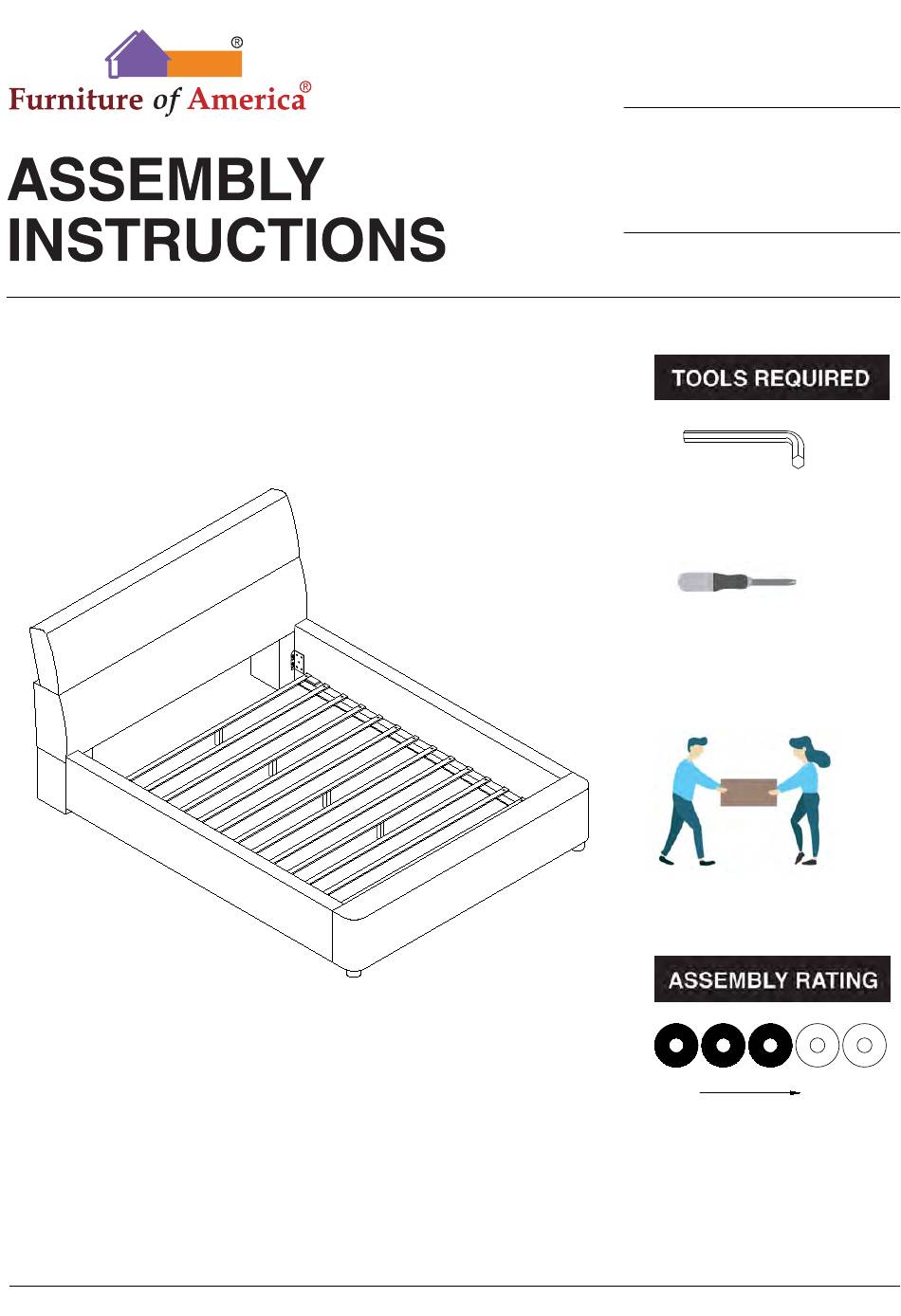

VERSION # 21-04-0 8
1 / 9
MODEL #
CM7513Q /F
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Vodice CM7513Q
Summary of Contents for Furniture of America Vodice CM7513Q
- Page 1 MODEL # CM7513Q /F Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X 9...
-
Page 5: Side Rail
CM7513Q /F #4 2pcs #1 1pc #2 1pc #3 1pc Side Rail Headboard HB Leg (L) HB Leg (R) #5 1pc #6 1set #7 4pcs Support Leg Footboard Slat (13pcs) 30x30x100mm #A 4pcs #B 4pcs #C 4pcs Lock Washer Ø5/16" Flat Washer Ø5/16"... -
Page 6: Exploded View
Exploded View 6 / 9... - Page 7 CM7513Q is packed in 2 cases Disignation Part Hardware Carton #A x4pcs Headboard #B x4pcs #C x4pcs CM7513Q-HB HB Leg (L) #D x1pc #E x26pcs HB Leg (R) Side Rail Footboard CM7513Q-FBR Slat (13pcs) Support Leg 7 / 9...
- Page 8 ASSEMBLY INSTRUCTIONS Find and remove the headboard legs (#2,3) from the back hidden compartment of the headboard (#1). Align headboard legs (#2,3) to the headboard (#1), then secure by Part #1 x1pc using bolts (#A) with washers Part #2 x1pc (#B,C).
- Page 9 ASSEMBLY INSTRUCTIONS Align slats (#6) to the side rails, then Part secure by using screws (#E). #6 x1pc Part #7 x4pcs Hardware #E x26pcs Align and attach support legs (#7) to the fully extended slats (#6). 9 / 9...
