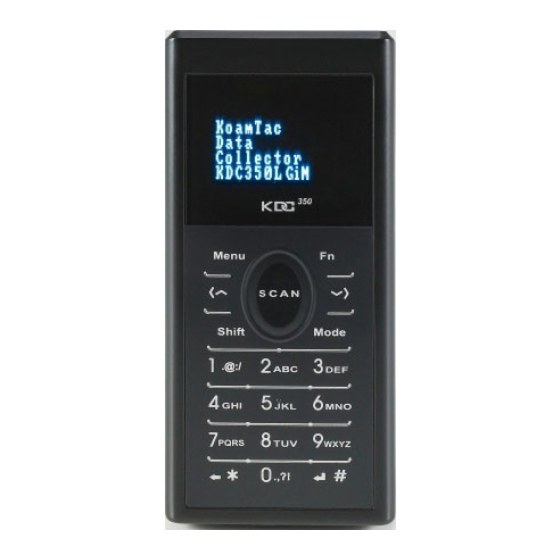

How to use KDC350 Wi-Fi
May 2015
1 |
P a g e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KDC350 Wi-Fi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KoamTac KDC350 Wi-Fi

Summary of Contents for KoamTac KDC350 Wi-Fi

  • Page 1 How to use KDC350 Wi-Fi May 2015 P a g e...

  • Page 2: Table Of Contents

    How to use KDC350 Wi-Fi Table of Contents 1. WI-FI CONFIG MENU ....................3 Power ..............................3 AP ................................4 Server ..............................5 Connect ..............................6 Auto Connect ............................7 Send Stored ............................8 2. HOW TO USE KTSYNC TO CONFIGURE WIFI ............9 3.

  • Page 3: Wi-Fi Config Menu

    How to use KDC350 Wi-Fi 1. Wi-Fi Config Menu Screen Comment Power Turn the Wi-Fi Module Power ON/OFF. Configure the AP Server Configure the server Connect Connect to the AP and server Auto Connect Enable/Disable auto reconnection Send Stored Enable/Disable sending stored data...
  • Page 4 How to use KDC350 Wi-Fi 1.2 AP Screen Screen Comment Power SSID AP SSID Passcode AP Passcode ▶ Server Exit Menu Exit Connect Auto Connect Send Stored Exit Menu • The maximum number of characters for SSID and Passcode is 32.

  • Page 5: Server

    How to use KDC350 Wi-Fi 1.3 Server Screen Screen Comment Power IP Address Server IP address URL Address Server DNS name ▶ Server Port Number Server port number UDP/TCP/HTTP Connect Protocol GET/HTTP POST Auto Connect SSL(Security) Enable/Disable Send Stored Server Page...

  • Page 6: Connect

    How to use KDC350 Wi-Fi 1.4 Connect Screen Screen Comment Power Server Connect “Connected…” ▶ Auto Connect Send Stored Exit Menu KDC will attempt to connect to the AP and Server configured in the “AP” and • “Server” Menu. P a g e...

  • Page 7: Auto Connect

    How to use KDC350 Wi-Fi 1.5 Auto Connect Screen Screen Comment Power Enabled Enables Auto Connect. Disabled Disables Auto Connect. Server Save & Exit Confirm Connect Cancel & Exit Cancel Auto Connect Send Stored ▶ Exit Menu • The KDC will attempt to connect to the AP and server ten times when auto connection is enabled and the KDC loses connection.

  • Page 8: Send Stored

    How to use KDC350 Wi-Fi 1.6 Send Stored Screen Screen Comment Enables to send stored Power Enabled data Disables to send stored Disabled data Server Save & Exit Confirm Connect Cancel & Exit Cancel Auto Connect Send Stored ▶ Exit Menu •...

  • Page 9: How To Use Ktsync To Configure Wifi

    How to use KDC350 Wi-Fi 2. How to use KTSync to configure WiFi It is possible to configure the following WiFi options by using KTSync.  WiFi Power  Auto connect  SSL  Server IP  Server URL  Server Port Number ...

  • Page 10: Wifi Configuration Special Barcodes

    How to use KDC350 Wi-Fi 3. WiFi configuration special barcodes WiFi Enable WiFi Disable HTTP GET HTTP POST Server IP Server URL Port Number Server Page SSL Enable SSL Disable Enable Auto Connect Disable Auto Connect AP SSID AP Passcode...
  • Page 11 How to use KDC350 Wi-Fi Enable Send Stored Disable Send Stored Connect 11 | P a g e...

  • Page 12: How To Test Data Transmission

    How to use KDC350 Wi-Fi 4. How to test data transmission 4.1 TCP Step 1. Wi-Fi Module Power ON • Turn on the Wi-Fi module’s power with “WIFI Config” → “Power” → “Enable”. Step 2. Configure server information • “WIFI Config”...
  • Page 13 How to use KDC350 Wi-Fi Step 3. Connect to server • Run the test application “CommOp.exe” with TCP server listening mode. Be sure the status is in “Listening” as shown below. • Connect the KDC to the server in “WIFI Config”...
  • Page 14 How to use KDC350 Wi-Fi Step 4. Send Barcode Data to server • Scan a barcode. • The barcode sent from the KDC is displayed on the test application as shown above. 14 | P a g e...

  • Page 15: Udp

    How to use KDC350 Wi-Fi 4.2 UDP Step 1. Wi-Fi Module Power ON • Turn on the Wi-Fi power module with “WIFI Config” → “Power” → “Enable”. Step 2. Configure server information • “WIFI Config” → “Server” → “IP Address” → “XXX.XXX.X.XX”.
  • Page 16 How to use KDC350 Wi-Fi Step 3. Connect to server • Run the tester application “CommOp.exe” with UDP mode chosen. • Connect the KDC to the server in “WIFI Config” → “Connect”. Step 4. Send barcode data to server •...

  • Page 17: Http Get&Post

    How to use KDC350 Wi-Fi 4.3 HTTP GET&POST Step 1. Install Apache Server (XAMPP) • Download the installer from http:www.apachefriends.org/en/xampp-windows.html Step 2. Run XAMPP Control Panel • Run the XAMPP Control Panel and make sure both Apache and MySQL can be started as shown on the following screen.
  • Page 18 How to use KDC350 Wi-Fi Step 3. Copy web server program into XAMPP • Unzip the two files below and copy them into c:/xampp/htdocs 1. Gswebserver.zip 2. Datacollector.zip • Be sure the directory list looks like the following • Make sure that the Apache server has been installed correctly by accessing http://localhost/gswebserver/index.html.
  • Page 19 How to use KDC350 Wi-Fi Step 4. Setup SSL • Unzip the certificates.zip and 1. Copy ‘server.crt’ into /xampp/apache/conf/ssl.crt 2. Copy ‘server.key’ into /xampp/apache/conf/ssl.key 3. Make sure the following 3 lines are in /xampp/apache/conf/extra/httpd-ssl.conf. # SSL Engine Switch: # Enable/Disable SSL for this virtual host.
  • Page 20 How to use KDC350 Wi-Fi Step 5. Setup SQL DB • Enter the MqSQL configuration by pressing “Admin” in XAMPP as shown • Select “test” and press ‘Go” button after entering “datacollector” in Name, and “2” in the Number of columns in the following screen.
  • Page 21 How to use KDC350 Wi-Fi • Once Save is completed, the following screen will display. • If everything is installed properly, the following screen will display while opening: http://localhost/datacollector/CheckUpdateData.php. Step 6. Send data from KDC to server • Configure the KDC350 settings as follows: IP Address: Server IP address Port: 80(HTTP) if SSL is disabled, 443(HTTPS) if SSL is enabled.

  • Page 22: Data Format

    How to use KDC350 Wi-Fi 5. Data Format 5.1 Storage Format KDC350 WiFi model can store scanned barcode and RFID data into internal flash memory. The KDC350 WiFi model stores the read barcodes and RFID data in the internal flash...

  • Page 23: Sending Format

    How to use KDC350 Wi-Fi 5.2 Sending Format The KDC350 WiFi model sends barcode and RFID data to host with the following format: 1. Barcode only • Real time data Data • Stored data Data Data Data Length Data Length ………………...
  • Page 24 How to use KDC350 Wi-Fi Where, • TAG(1 byte) →This TAG is attached when “Send Stored” is enabled. ‘0’: Real time data ‘1’: Stored data • UID(10 bytes) It is a unique identifier of KDC350. It contains 10 digits of KDC350 serial number.
