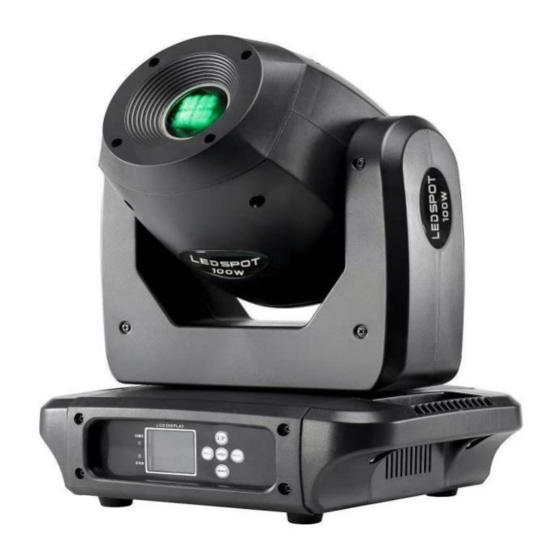

Mac Mah MACSPOT100 User Manual
  1. Manuals
  2. Brands
  3. Mac Mah Manuals
  4. DJ Equipment
  5. MACSPOT100
  6. User manual

Mac Mah MACSPOT100 User Manual

Hide thumbs Also See for MACSPOT100:
Table of Contents

Advertisement

Quick Links

Download this manual
MACSPOT100
MODE D'EMPLOI – USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Mac Mah MACSPOT100

Summary of Contents for Mac Mah MACSPOT100

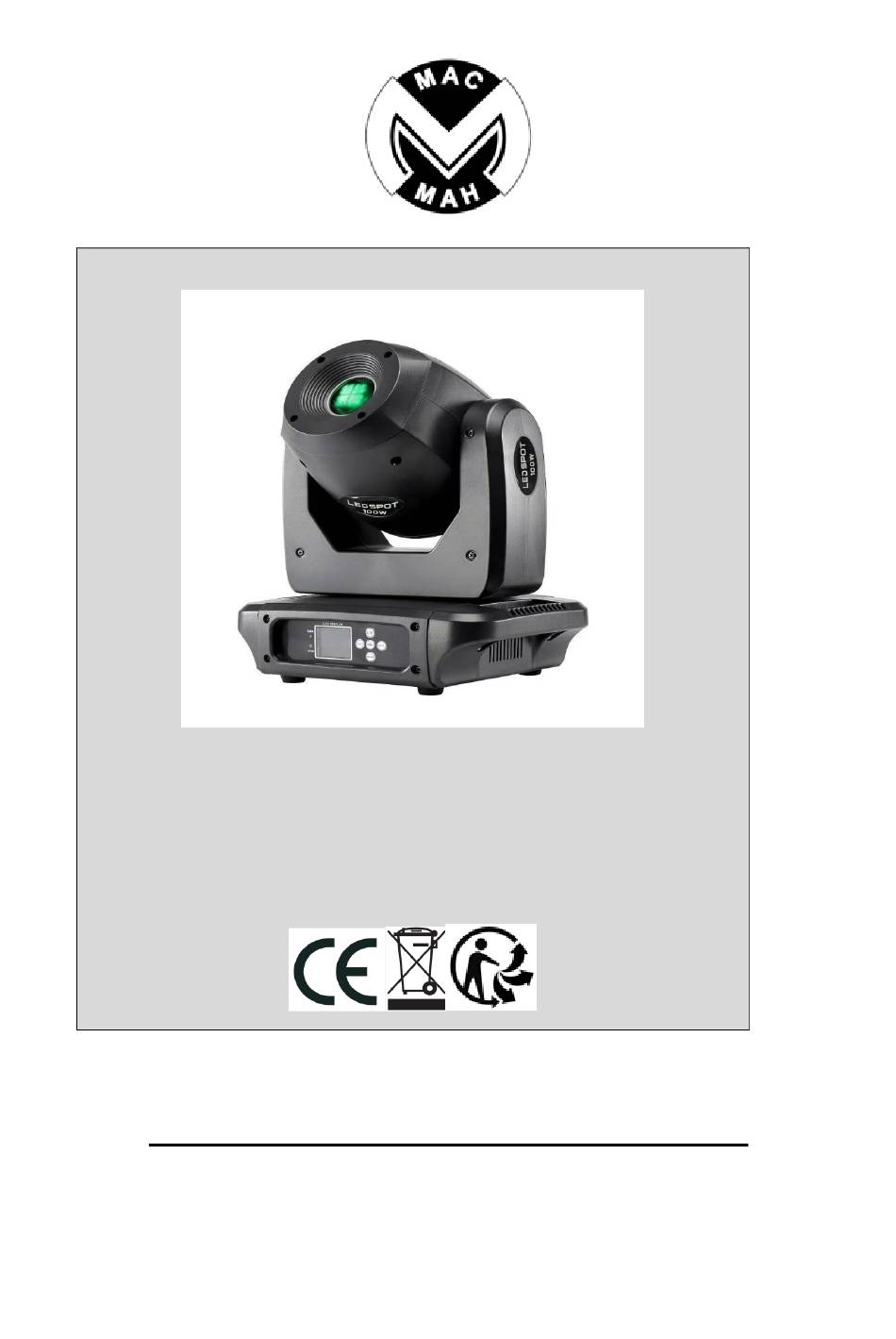

  • Page 1 MACSPOT100 MODE D’EMPLOI – USER MANUAL...

  • Page 2: General Information

    ENGLISH 1. General Information: Thank you very much for choosing our product. For safety purpose, please read this manual carefully before your operation. This manual included installation and using information. Please install and operate it according to this manual. Unpacking:Once receive it,please handle it carefully and check if there is some shatter because of transportation and the following fittings are OK.
  • Page 3  The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked.  Disconnect main power before replacement or servicing.  Make sure there are no flammable materials close to the unit while operating as it is fire hazard.

  • Page 4: Technical Specifications

    Installation: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.

  • Page 5: Interface Description

    4. Interface Description Main Interface Reverse 180 displayed Chinese/English Surface 5. Subinterface Setting Description Option Slave status: Receive DMX signals Run Mode from the console or Master Sound Auto run ;...

  • Page 6: Manual Control

    Master status: Auto run and send DMX Random signal to slave Auto Press “OK” key enter into edit status, then press “UP” “DOWN” to change DMX Address 001-512 DMX address. press “OK” key save and exit edit status. Channel Mode Std.14CH Standard 14 Channel Mode Top Lamp Temp...
  • Page 7 This interface is used to control the current fixture and automatically enters the master state (does not receive the DMX signal and sends a DMX signal to the slave). Option Description 1. Pan 0-255 2. Pan Fine 0-255 3. Tilt 0-255 4.
  • Page 8 If the red ERR indicator is lit, the Fixture is running. (See common An error can be made by going to System Errors mistakes the sub-interface for details. Rear) After viewing, you can press the "Clear" button to clear the error record.

  • Page 9: Dmx Channel Table

    Option Description Hall 1-6 State Hall XY State Sensor Monitor Pan Tilt Codewheel State Pan Codewheel Step Tilt Codewheel Step Pan Calibration After entering the sub- interface, you can adjust the Tilt Calibration motor such as X-axis and Y-axis. Color Calibration Reset position to Reset Calibration Gobo Calibration...
  • Page 10 Color Fixed Gobo Wheel Rotation Gobo Wheel Gobo rotate Prism Focus Reset  PAN – channel 1  PAN FINE – channel 2  TILT – channel 3  TILT FINE – channel 4  PAN-TILT TIME – channel 5 Timing Channel function Remark...
  • Page 11 252-255 UNUSED Controlled by Dimmer CH FAST STROBE …… …… SLOW STROBE UNUSED Controlled by Dimmer CH  COLOUR WHEEL – channel 8 EFFECT Note FAST ROTATION …… …… SLOW ROTATION 75-79 ORANGE + WHITE CYAN + ORANGE PINK+ CYAN YELLOW+ PINK BLUE+ YELLOW GREEN+ BLUE...
  • Page 12 FAST ROTATION (Clockwise) …… …… SLOW ROTATION (Clockwise) WHITE SLOW ROTATION (Counterclockwise) …… …… FAST ROTATION (Counterclockwise) GOBO 7 GOBO 6 GOBO 5 GOBO 4 GOBO 3 GOBO 2 GOBO 1 WHITE  ROTATION GOBO WHEEL – channel 10 EFFECT Note 251-255 GOBO 6 SHAKE, SLOW to FAST...

  • Page 13: Reset - Channel

    GOBO 1 WHITE  GOBO ROTATE – channel 11 EFFECT Note FAST ROTATION (Counterclockwise) …… …… SLOW ROTATION (Counterclockwise) 191-192 STOP SLOW ROTATION (Clockwise) …… …… FAST ROTATION (Clockwise) FAST ROTATION (Clockwise) …… …… SLOW ROTATION (Clockwise) 0-63 POSITION  PRISM – channel 12 EFFECT Note PRISM FAST ROTATION...

  • Page 14: Instructions De Sécurité

     Ne pas regarder directement le faisceau lumineux.  Cet appareil MACSPOT100 doit être installé avec un crochet solide et de dimension adéquate au poids supporté. L’appareil doit être vissé au crochet et serré...
  • Page 15 portée du public. 2. Specifications techniques techniques Alimentation électrique : AC100-240V,50-60Hz Consommation : 150W Max. Canaux DMX : 14 CH Source lumineuse: LED blanche 100W / 9500K Angle de projection : 15° Mode de contrôle : DMX512, Master/Slave, Auto, Sound. Roue de couleur : 7 couleurs + blanc, demi couleur , effet arc-en-ciel Roue de gobo fixe : 7 gobos + ouvert, gobo shake.
  • Page 16 Mac Mah – MSC Distribution 9 Rue Camille Flammarion 91630 Avrainville / FRANCE infos@msc-distribution.com Tel : +33 1 69 34 80 62...
