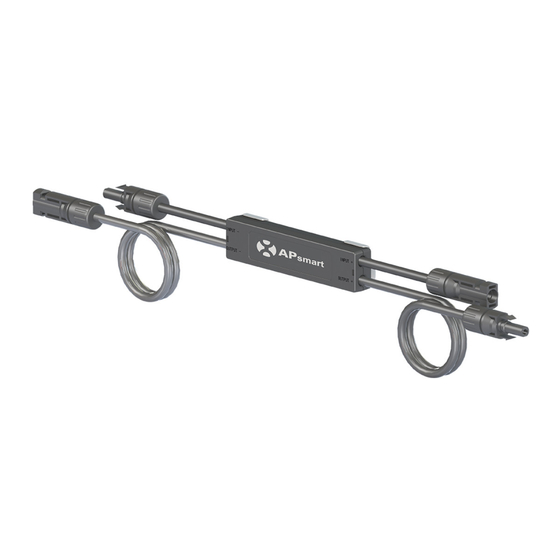

APsmart RSD-S-PLC Quick Installation Manual

Hide thumbs Also See for RSD-S-PLC:

RSD-S-PLC Quick Installation Guide

INPUT-

OUTPUT-

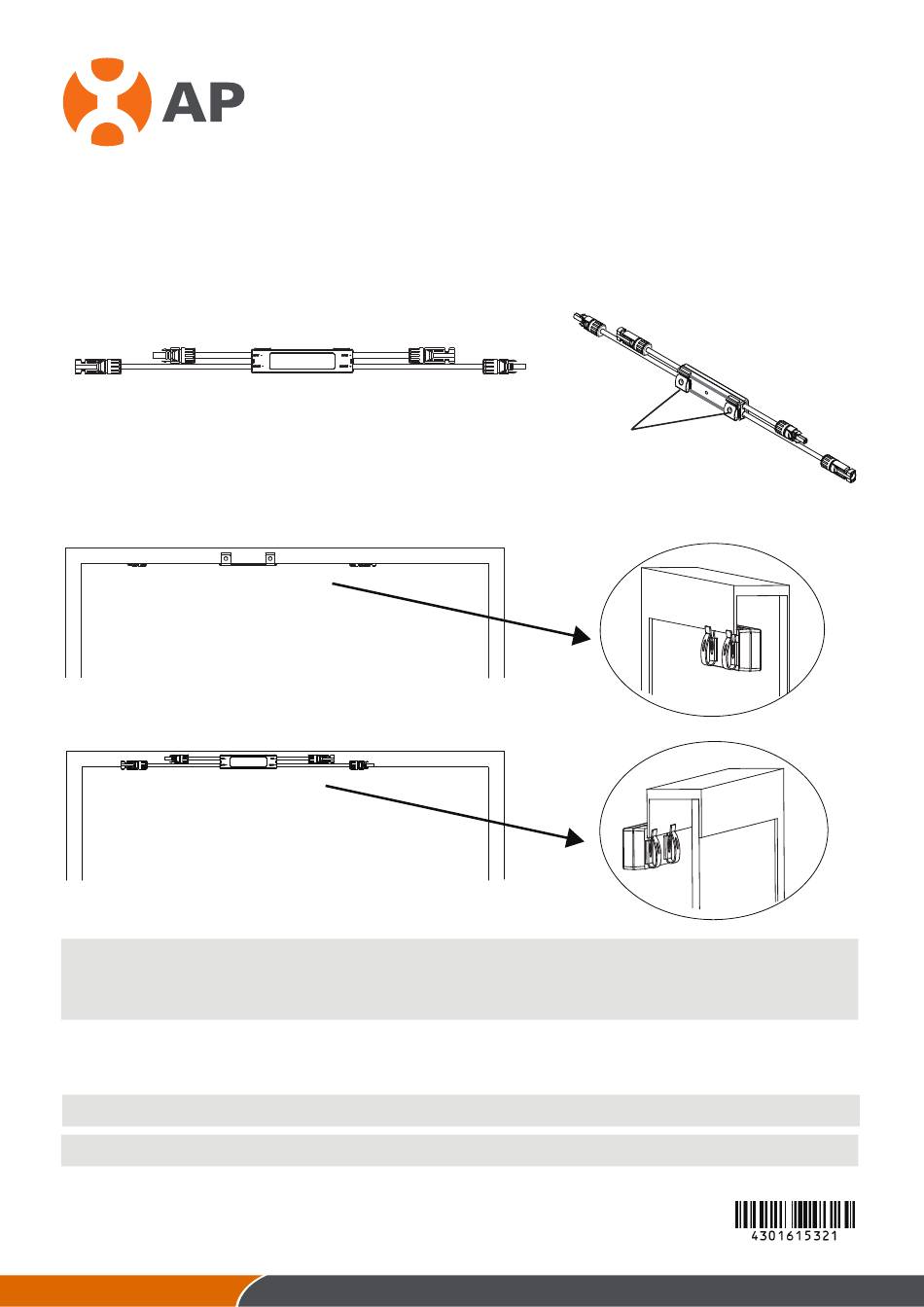

Step1. Buckle RSD-S-PLC onto the PV module frame.

A.Back buckle

B.Front buckle

NOTE: Do not place the RSD-S-PLC (including DC connectors) where exposed to the sun, rain or snow, even gap

between modules. Allow a minimum of 3/4''(1.5cm.) between the roof and the bottom of the RSD-S-PLC to

allow proper air ﬂow.

Step 2. Connect the input connectors of the RSD-S-PLC to the junction box, the device

output DC voltage is within the range of 0.6 to 1v.

NOTE: Do not short-circuit the RSD-S-PLC output connectors, otherwise it will be damaged.

NOTE: When installing RSD-D cable, the bending radius of the cable near the casing must be greater than 50 mm.

smart

INPUT+

OUTPUT+

Mounting brackets

2021/10/08 Rev2.7 | Quick Installation Guide

Table of Contents

Need help?

Do you have a question about the RSD-S-PLC and is the answer not in the manual?

Page 1 A.Back buckle B.Front buckle NOTE: Do not place the RSD-S-PLC (including DC connectors) where exposed to the sun, rain or snow, even gap between modules. Allow a minimum of 3/4’’(1.5cm.) between the roof and the bottom of the RSD-S-PLC to allow proper air ﬂow.
Page 2 √ × Step 3. Connect the output connectors of the RSD-S-PLC in series to the string, the string open-air DC voltage is within the range of (0.6 ~ 1v) X #RSD-S-PLCs. (This range may vary due to di erent on-site environment.) NOTE: Do not connect homerun to inverter before ﬁnishing all strings connections and tests.
