- Page 1 Installation / User Manual APsmart rapid shutdown system Rev1.2 2020/05/12 RSD-S-PLC TRANSMITTER-PLC/TRANSMITTER-PLC-PCBA/ TRANSMITTER-PLC OUTDOOR KIT © All Rights Reserved ALTENERGY POWER SYSTEM INC. www.APsmartGlobal.com...
-
Page 2: Table Of Contents
Step 2: According to the component arrangement, connect the output port of the RSD-S-PLC and connect the input port to the junction box--------------------8 Step 3: Connect the RSD-S-PLC serially connected output to the inverter with a self-made DC extension cable------------------------------------------------------8 TRANSMITTER-PLC INSTALLATION ----------------------------------------------------------9 TECHNICAL DATA—RSD-S-PLC---------------------------------------------------------------12... -
Page 3: Important Safety Instructions
· Before installing or using the RSD-S-PLC, please read all instructions and cautionary markings in the technical documents. · Be aware that the body of the running RSD-S-PLC is the heat sink and can reach high temperatures. To reduce risk of burns, do not touch the body of the RSD-S-PLC. -
Page 4: Rsd Products
· Meets SunSpec requirements RSD-S-PLC meets SunSpec requirements,maintaining normal function by continually receiving a heart-beat signal from the APsmart Transmitter. The RSD executes rapid system shutdown when Transmitter signal is absent. Users can manually execute rapid shutdown using Transmitter breaker... -
Page 5: Transmitter Products

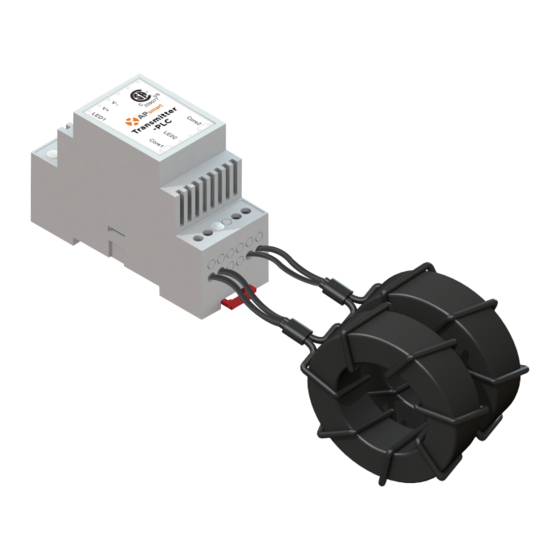

TRANSMITTER PRODUCTS Transmitter-PLC： · Meets NEC 2017 (690.12) requirements · Switch o Transmitter, rapid shutdown the output of PV modules · Meets SunSpec requirements · Equipped with single/dual core · Optional 85-264VAC power supply · Optional 180-550VAC power supply Transmitter-PLC-Outdoor Kit： ·... -
Page 6: System Wiring Diagram
The APsmart Rapid Shutdown System Transmitter-PLC is part of a rapid shutdown solution when paired with APsmart RSD-S-PLC, a PV module rapid shutdown unit. While powered on, the Transmitter-PLC sends a signal to the RSD-S-PLC units to keep their PV modules connected and supplying energy. - Page 7 … … ① RSD-S-PLC ② Transmitter-PLC-Outdoor Kit ③ Inverter … … ① RSD-S-PLC ② Inverter with Transmitter-PLC-PCBA...
-
Page 8: Rsd-S-Plc Installation
② Be aware that only qualified professionals should install and/or replace the RSD-S-PLC. ③ Before installing or using an RSD-S-PLC, please read all instructions and warnings in the technical documents and on the inverter system itself as well as on the PV array. -
Page 9: Step 1: Install The Rsd-S-Plc
Step 1: Install the RSD-S-PLC. DC input - DC input + DC output - DC output + Mounting brackets Buckle RSD-S-PLC on the PV module frame. A. Front buckle B. Back buckle Note: Both installations can be installed anywhere on the PV module frame. -
Page 10: Rsd-S-Plc And Connect The Input Port To The Junction Box
Step 2: According to the component arrangement, connect the output port of the RSD-S-PLC and connect the input port to the junction box. Input- Input + Input- Input + Output- Output + Output- Output + Step 3: Connect the RSD-S-PLC serially connected output to the inverter with a self-made DC extension cable. -
Page 11: Transmitter-Plc Installation
When Transmitter fails to work, the Signal LED will not be blinking. If the Power LED is also not lit, check the power supply first. te: Install RSD-S-PLC before powering on Transmitter. • Mount Transmitter-PLC and power supply on DIN rail •... - Page 12 259077 smart Note: Install RSD-S-PLC before powering on Transmitter. Max.Number Of Strings Per Core : DC cable Diameter Φ5.9mm Φ6.35mm Φ7mm Φ8.6mm Number Of Strings Per Core ≤15 ≤15 ≤14 ≤10 (without connector) 30 modules 150A 3300ft (1000m)
- Page 13 Drilling Guide for .75" Conduit Single Core Dual Core 2x∅28 3x∅28 2x∅28 ∅28 Drilling Guide for 1" Conduit Single Core Dual Core...
-
Page 14: Technical Data-Rsd-S-Plc
TECHNICAL DATA —RSD-S-P Model RSD-S-PLC Input Data (DC) Input Operating Voltage Range 8-80V Maximum Cont. Input Current (Imax) Maximum Input Power 550W Output Data (DC) Output Operating Voltage Range 8-80V Output Power Range 0-550W Maximum S em oltage 1000V/1500V Mechanical Data... -
Page 15: Technical Data-Transmitter-Plc
TECHNICAL DATA—TRANSMITTER-PLC Model Transmitter-PLC Main Electrical Data Input Voltage 12 VDC Input Current 0.5A Communication P LC Power Supply Residential（optional） 85-264 VAC Input, 12VDC Output, 90 mm x 17.5 mm x 58.4 mm 180-550 VAC Input, 12VDC Output, Commercial（optional） 125.2 mm x 32 mm x 102 mm Core Data Max. -
Page 16: Technical Data-Transmitter-Plc-Outdoor Kit
TECHNICAL DATA—TRANSMITTER-PLC OUTDOOR KIT Model Transmitter-PLC Outdoor Kit Main Electrical Data Input Voltage 12 VDC Input Current 0.5A Communication Power Supply Residential（optional） 85-264 VAC Input, 12VDC Output, 90 mm x 17.5 mm x 58.4 mm Commercial（optional） 180-550VAC Input, 12VDC Output, 125.2 mm x 32 mm x 102 mm Core Data Max. -
Page 17: Technical Data-Transmitter-Plc-Pcba
TECHNICAL DATA—TRANSMITTER-PLC-PCBA Model Transmitter-PLC-PCBA Main Electrical Data Input Voltage 12 VDC Input Current 0.5A Communication Power Supply Residential（optional） 85-264 VAC Input, 12VDC Output, 90 mm x 17.5 mm x 58.4 mm Commercial（optional） 180-550VAC Input, 12VDC Output, 125.2 mm x 32 mm x 102 mm Core Data Max. -
Page 18: Ordering Information
408007 Dual Core Transmitter-PLC Outdoor Kit, 85-264VAC Power Supply 409001 Single Core Transmitter-PLC-PCBA (no power supply) 409000 Dual Core Transmitter-PLC-PCBA (no power supply) RSD-S-PLC 405002 1500V UL/1000V TUV, 1.2m cable, MC4 405001 1000V UL/TUV, 1.2m cable, MC4 compatible 405003 1500V UL/TUV, 1.2m cable, MC4-Evo2...
