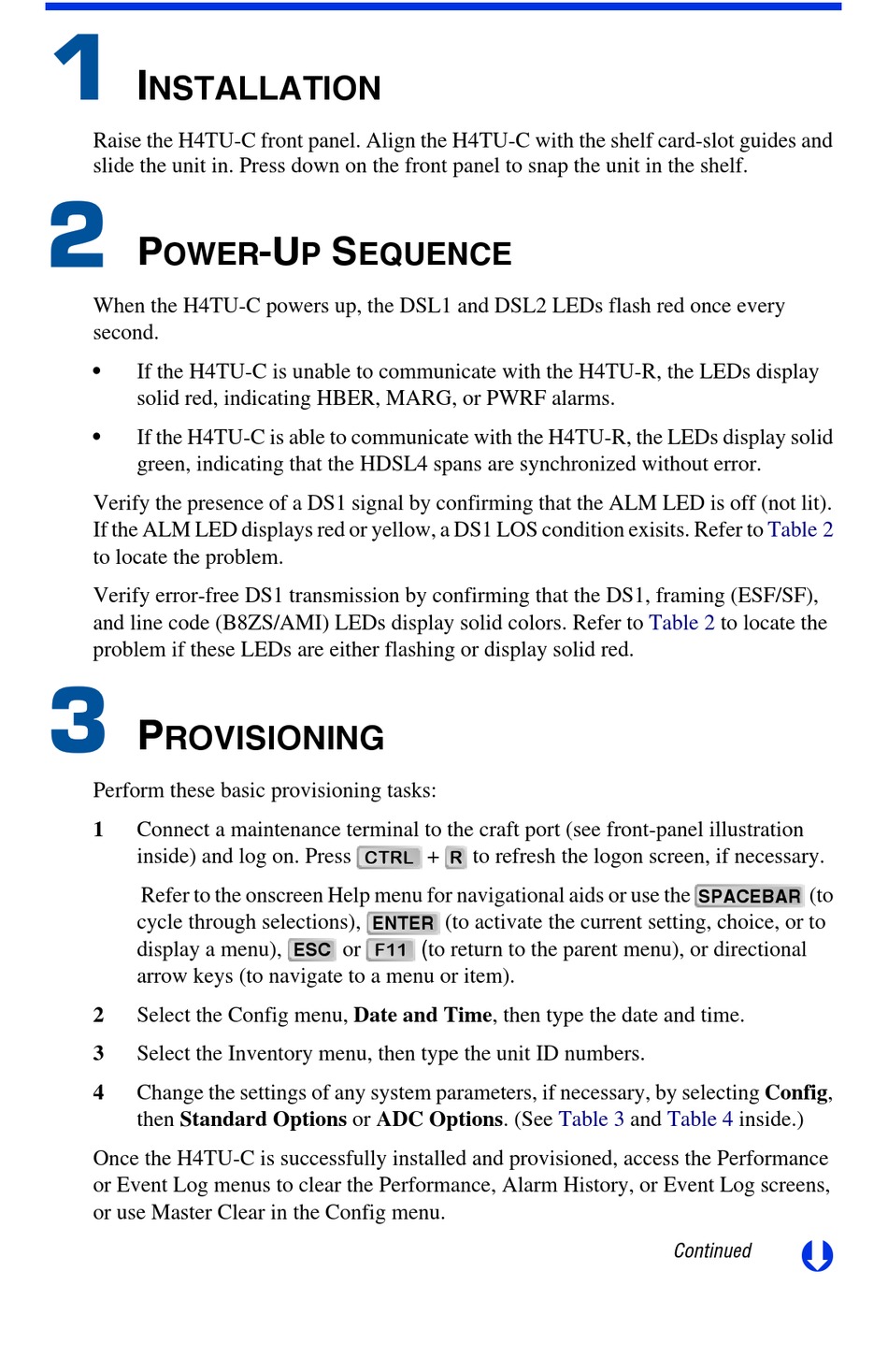

Installation; Power-Up Sequence; Provisioning - ADC HIGAIN H4TU-C-388 Quick Installation

I
NSTALLATION
Raise the H4TU-C front panel. Align the H4TU-C with the shelf card-slot guides and
slide the unit in. Press down on the front panel to snap the unit in the shelf.
P -U
OWER
When the H4TU-C powers up, the DSL1 and DSL2 LEDs flash red once every
second.
•
If the H4TU-C is unable to communicate with the H4TU-R, the LEDs display
solid red, indicating HBER, MARG, or PWRF alarms.
•
If the H4TU-C is able to communicate with the H4TU-R, the LEDs display solid
green, indicating that the HDSL4 spans are synchronized without error.
Verify the presence of a DS1 signal by confirming that the ALM LED is off (not lit).
If the ALM LED displays red or yellow, a DS1 LOS condition exisits. Refer to
to locate the problem.
Verify error-free DS1 transmission by confirming that the DS1, framing (ESF/SF),
and line code (B8ZS/AMI) LEDs display solid colors. Refer to
problem if these LEDs are either flashing or display solid red.
P
ROVISIONING
Perform these basic provisioning tasks:
1 Connect a maintenance terminal to the craft port (see front-panel illustration
inside) and log on. Press
Refer to the onscreen Help menu for navigational aids or use the
cycle through selections),
display a menu),
arrow keys (to navigate to a menu or item).
2 Select the Config menu, Date and Time, then type the date and time.
3 Select the Inventory menu, then type the unit ID numbers.
4 Change the settings of any system parameters, if necessary, by selecting Config,
then Standard Options or ADC Options. (See
Once the H4TU-C is successfully installed and provisioned, access the Performance
or Event Log menus to clear the Performance, Alarm History, or Event Log screens,
or use Master Clear in the Config menu.
S
P EQUENCE
CTRL R
+
(to activate the current setting, choice, or to
ENTER
F11
(to return to the parent menu), or directional
or
ESC
to refresh the logon screen, if necessary.
Table 3 and
Table 2
Table 2 to locate the
(to
SPACEBAR
Table 4 inside.)
Continued
