ASSEMBLY INSTRUCTION

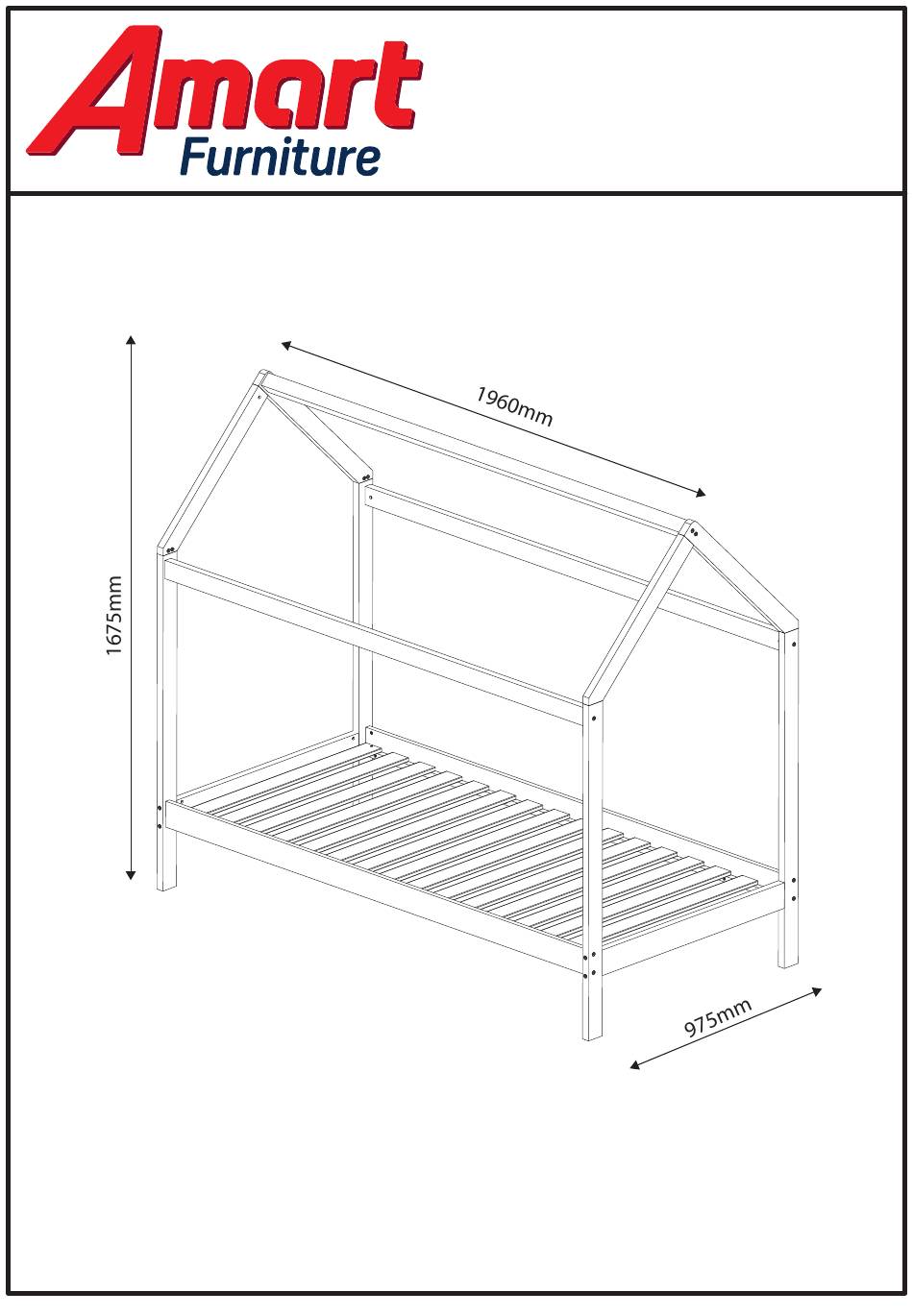

MILL SINGLE HOUSE BED
ITEM CODE : 66295
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture Pty Ltd Customer Service Free call 1800 351 084
PAGE 1 OF 10
66295
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture MILL 66295
Summary of Contents for Amart Furniture MILL 66295
- Page 1 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture Pty Ltd Customer Service Free call 1800 351 084 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. 2. Take care when lifting. Product should be assembled as near as possible to the point of use. 3. Ensure that you have all required contents for complete assembly. 4. - Page 3 1L,1R HEADBOARD POST (L&R) (X4) SIDE RAIL (X2) 2L,2R HEADBOARD ROOF - FRONT (L&R) (X2) SUPPORT RAIL - TOP (X1) 3L,3R HEADBOARD ROOF - REAR (L&R) (X2) SUPPORT RAIL - MIDDLE (X2) HEADBOARD RAIL (X2) WOODEN SLAT (72 x 915 = 16) (X1) PAGE 3 OF 10 66295...
-
Page 4: Hardware List
HARDWARE LIST A. PLASTIC DOWEL (M10 x 35MM) B. JCBC BOLT (M6 x 60MM) C. JCBC BOLT (M6 x 100MM) 20 PCS 16 PCS 10 PCS D. JRN NUT (M6 x 13MM) E. JCBC W SCREW (M7 x 25MM) F. CSK C/B SCREW (M4 x 32MM) 26 PCS 8 PCS 6 PCS... - Page 5 STEP 1 Apply a small amount of Furniture Glue (H) into bottom and inside of Ø10MM holes before insert Plastic Dowels (A) on Headboard Roof - Front (2L & 2R), Headboard Rail (4), Side Rails (5) and Support Rail - Middle (7). STEP 2 Apply a small amount of Furniture Glue (H) into bottom and inside of the Ø10MM holes.
- Page 6 STEP 3 Apply a small amount of Furniture Glue (H) into bottom and inside of the Ø10MM holes for Plastic Dowels (A) of Headboard Roof - Rear (3L & 3R) for assembly to Headboard Roof - Front (2L & 2R). Attach and secure Headboard Roof - Rear (3L &...
- Page 7 STEP 5 Attach and secure Side Rail (5) and Support Rail - Top (6) & Support Rail - Middle (7) to Headboard by using Bolts (B) & Nuts (D), tighten it up by using Allen Key (G). PAGE 7 OF 10 66295...
- Page 8 STEP 6 Secure Wooden Slats (8) by using Screws (F), tighten it up by using Crosshead Screw Driver. *Align both Side Rails before tightening the screws. PAGE 8 OF 10 66295...
- Page 9 ASSEMBLY IS COMPLETE PAGE 9 OF 10 66295...
- Page 10 IMPORTANT : PRODUCT CARE FOR TIMBER ITEMS As our timber is supplied from sustainable forests there will be natural variations in surface texture and grain like knots, mineral streaks and sap runs that may affect the finish. These differences in character are not defects, but distinctions that make each piece of furniture unique.
