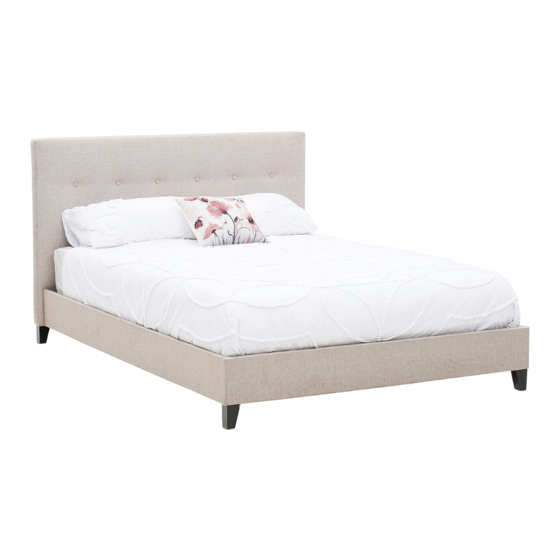

- Page 1 SOPHIE MK2 DOUBLE BED ITEM CODE 65524 1550mm 1120mm 2060mm 65524...
- Page 2 Before you start : Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product. Take care when lifting. Product should be assembled as near as possible to the point of use. Ensure that you have all required contents for complete assembly. Always read the assembly instructions carefully before beginning assembly.
- Page 3 HEADBOARD ( x 1 ) FOOTBOARD ( x 1 ) SIDE RAIL ( x 2 ) CENTER RAIL ( x 1 ) WOOD LEGS ( x 4 ) FLAT SLAT 1380mm x 62mm x 14mm ( x 14 ) CENTER SUPPORT LEG ( x 1 ) Bolt ( pre-assembled ) Allen Key M8 x 30mm...
- Page 4 Step 1 : Attach the Wood Legs (5.) to the bottom of Headboard (1.) and Footboard (2.) by screwing in a clockwise direction. Then tighten them before you continue to the next step. 1 & 2. Diagram 1 Caution : Please make sure the legs in the right position. Note : Please ensure the legs are fix and same position according to diagram 1.
- Page 5 Step 3 : Install the Center Support Leg (7.) with D. M8 x 60mm bolt and C. M8 Washer on Center Rail (4.). Connect Center Rail (4.) by slotting each end into brackets installed on Headboard (1.) and Footboard (2.) by pushing the bracket down.
- Page 6 ASSEMBLY IS COMPLETED Note : Please Lift up the bed to move, DO NOT push or pull the bed with mattress on top. 65524...
- Page 7 *PILLING IS NOT A NORMAL OCCURRENCE CAUSED BY WEAR AND TEAR AND DOES NOT AFFECT THE DURABILITY OR FUNCTIONALITY OF THE FABRIC AND IS EASILY REMOVED Made In MALAYSIA Imported By Amart Furniture Pty Ltd, Brisbane, Qld, Australia Item Code: 65524 Product Name: SOPHIE MK2 DOUBLE BED 65524...
