104cm
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
ASSEMBLY INSTRUCTION

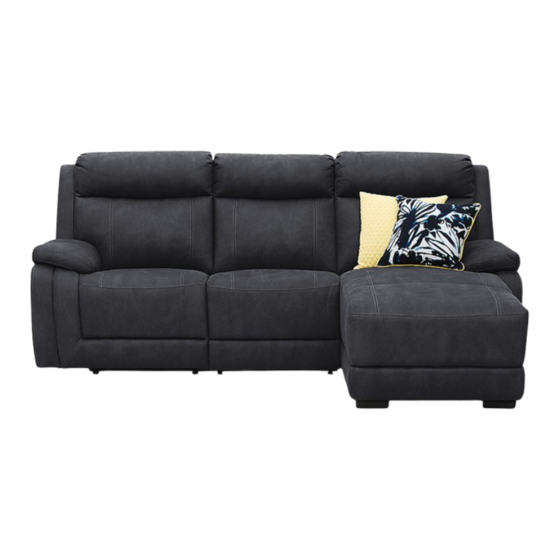

SAN MARCO 3 SEATER CHAISE
ITEM CODE 56929
Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia.
For any assistance with assembly or for missing parts please phone
Amart Furniture, Customer Service Free call 1800 351 084
232cm
1
168cm
56929
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Amart Furniture SAN MARCO 56929
Summary of Contents for Amart Furniture SAN MARCO 56929
- Page 1 ASSEMBLY INSTRUCTION SAN MARCO 3 SEATER CHAISE ITEM CODE 56929 Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 232cm 104cm 168cm Imported by Amart Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please phone Amart Furniture, Customer Service Free call 1800 351 084 56929...
-
Page 2: Pre-Assembly Preparation
PRE‐ASSEMBLY PREPARATION Before you start: Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product Take care when lifting. Product should be assembled as near as possible to the point of use Ensure that you have all required contents for complete assembly Always read the assembly instructions carefully before beginning assembly. -
Page 3: Parts List
PARTS LIST TRANSFORMER CABLE 2 TRANSFORMER POWER CABLE 2 X 1 2 X 2 2 X 3 56929... - Page 4 Step1: Locate power pack which is attached to the post at rear base of left hand facing electric seat. Step2: Slide back receivers into steel mechanism posts in the base of the furniture, and then press both sides of the each back firmly into place to ensure every back automatically locks in place. Receiver at bottom of back rest Mechanism post at rear of seat slide receiver into post 56929...
- Page 5 Step3: Locate package of sofa legs and hardware that is placed into zipper pocket at the bottom of right hand facing chaise. With 2 people carefully turn onto back on piece of cardboard or carpet to protect covering Bolt M8X70 Washer Centre leg Hexagon key Side leg a. Bolt M8X60 5pcs 5pcs 5pcs 1pcs 1pcs Step4: Take out 5 side legs, then use hexagon key to fasten the legs to the holes at bottom of sofa with bolts and washers. Arm Side 56929...
- Page 6 Step5: Take out the centre leg and then screw into middle hole at armless side. Armless Side clockwise turning for tighten of centre leg with screw Step6: Slide back receivers into steel mechanism posts in the base of the furniture, and then press both sides of the back firmly into place to ensure the back automatically locks in place. Receiver at bottom of back rest Mechanism post at rear of seat slide receiver into post 56929...
- Page 7 Step7: Connect left hand facing sofa to right hand facing chaise. Step8: Take out transformer cable , transformer and power cable from power pack and then connect. Transformer cable Power cable Transformer 56929...
-
Page 8: Safety Note
Step9: Plug transformer cables into sockets at back of sofa. Safety Note: Transformers and cables are not to be placed under or within the recliner structure. transformer cable transformer power cable ASSEMBLY IS COMPLETE SAFETY NOTE: PLEASE ENSURE THAT ALL ELECTRICAL CORDS AND CABLES ARE CLEAR OF THE FRAME AND MECHANISM. A FAILURE TO DO SO MAY SEVER YOUR POWER CORD RESULTING IN SERIOUS INJURY OR DEATH. 56929... - Page 9 READ THESE INSTRUCTIONS THOROUGHLY BEFORE USE: DANGER: TO REDUCE THE RISK OF ELECTRIC SHOCK: Always unplug from electric outlet before cleaning. WARNING: RISK OF INJURY Keep children away from extended footrest and any moving parts. CAUTION: • Do not allow children to play on this electric recliner or operate the powered mechanism. The leg rest folds when closing and could possibly cause injury to a child.
- Page 10 56929...
