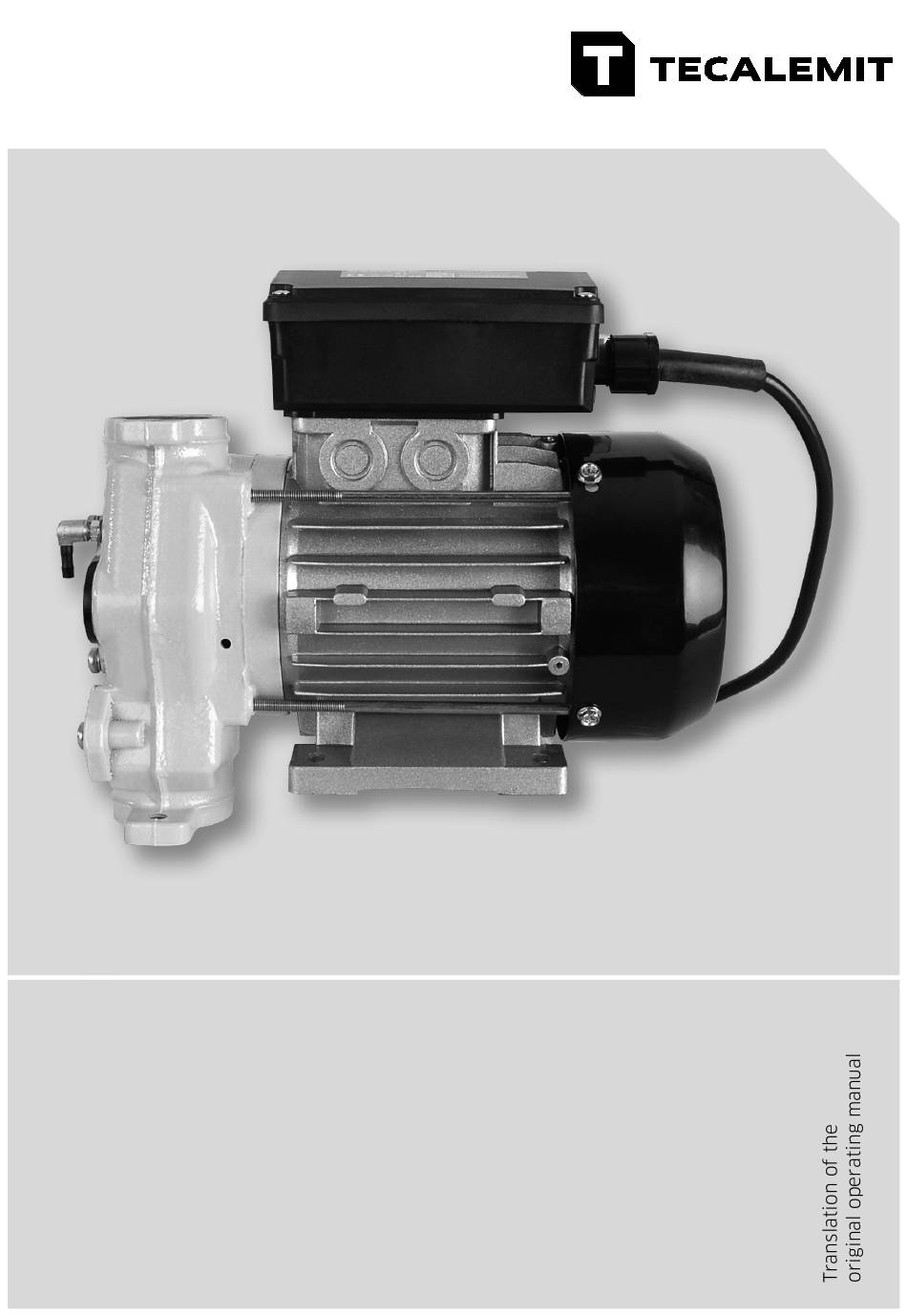

Fig. 105600000
Operating manual
TECPUMP
600
Item-No.:
105600000, 105600100, 105610400, 105610600, 105610800,
105620400, 105620600, 105620800, 105621400, 105621600, 105621800,
105622400, 105622600, 105622800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TECPUMP 600 and is the answer not in the manual?

Questions and answers

Summary of Contents for TECALEMIT TECPUMP 600

  • Page 1 Fig. 105600000 Operating manual TECPUMP Item-No.: 105600000, 105600100, 105610400, 105610600, 105610800, 105620400, 105620600, 105620800, 105621400, 105621600, 105621800, 105622400, 105622600, 105622800...
  • Page 2 Technical changes reserved. Service Hotline +49 1805 900 301 (0,14 €/Min: on the German landline network, Mobile telephone max. 0,42 €/Min.) service@tecalemit.de Document-No.: 44 1687 001GB-A Translation of document-no.: 44 1687 001DE-A As of: 19.10.17 44 1687 001GB-A TECPUMP 600...
  • Page 3: Table Of Contents

    The device may only be used if it is in perfect condition, and then only for its intended purpose, in compliance with all safety regulations, with an awareness of the potential risks, and according to the operating manual. Any faults that may impair the safety must be rectified immediately. 44 1687 001GB-A TECPUMP 600...
  • Page 4 Work on the electrical equipment may only be carried out by a qualified electrician or by trained persons under the guidance and supervision of a qualified electrician according to electro-technical guidelines. Machine or system components, on which inspection, maintenance or repair work is to be carried out must be de-energised. 44 1687 001GB-A TECPUMP 600...
  • Page 5: General Information

    General information 2.1 Description The TECPUMP 600 electric pump is an electrically driven, self-priming vane pump for conveying heating and diesel oil with a flash point above 55° C and coolants. The TECPUMP 600 is outfitted with an integrated filter on the suction side.
  • Page 6: Technical Information

    Protection class IP 54 Connecting cable Running time 100 % Noise emissions 83 dB(A) *Values for: immersion depth of 1600mm, DN19 x 4000 mm pressure hose with dispensation nozzle **Values for: operation with 12 V — 44 1687 001GB-A TECPUMP 600...
  • Page 7: Installation Instructions

    (9). Screw the other end of the dispensation hose into the swivel hose joint (10), which in turn is screwed into the automatic nozzle (11). • After assembly, check all connections for leaks. 44 1687 001GB-A TECPUMP 600...
  • Page 8: Fmt 3 Meter Or Z 400 Meter Option

    (9). The other screw connection is connected to the swivel joint of the automatic nozzle (10). For the operation of the meter, consult the accompanying operating manual. 44 1687 001GB-A TECPUMP 600...
  • Page 9: Operation

    • After the dispensation procedure is complete, turn off the electric pump and return the nozzle to the holder provided for this purpose. Also see the operating manual for the A2010 automatic nozzle. 44 1687 001GB-A TECPUMP 600...
  • Page 10: Fmt 3 Meter (Optional)

    Eliminate the cause of the overheating. If there is excessive emission of noise, further operation is only permissible after the reason for the noise has been eliminated! 44 1687 001GB-A TECPUMP 600...
  • Page 11: Maintenance

    Subsequently, replace the filter and screw the cover back on. 6.4 Safety breaker • The motor of the TECPUMP 600 is protected by a thermal protection device in the motor winding which automatically resets after the motor has cooled down sufficiently.
  • Page 12 HORN GmbH & Co. KG Munketoft 42 24937 Flensburg Deutschland T +49 461-8696-0 F +49 461-8696-66 www.tecalemit.de info@tecalemit.de 44 1687 001GB-A TECPUMP 600...
