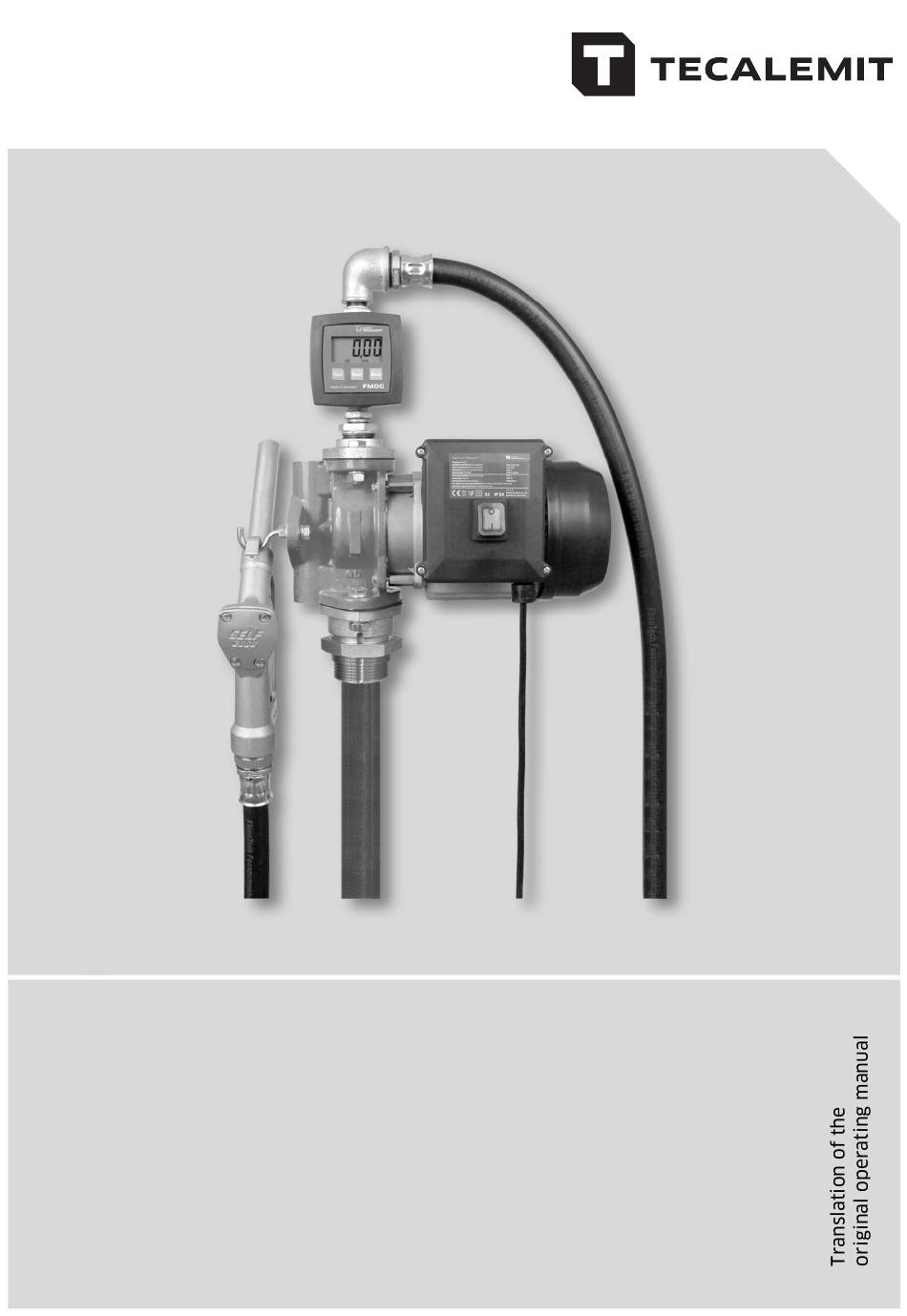

- Page 1 Operating manual Visconet II Item-No.: 104123700, 104133701, 104123702, 104143701, 104163700, 104173701...
- Page 2 Technical changes reserved. Service Hotline +49 1805 900 301 (0,14 €/Min: on the German landline network, Mobile telephone max. 0,42 €/Min.) service@tecalemit.de Document-No.: 44 1338 101-E As of: 10.09.2019 44 1338 101-E Visconet II...
-
Page 3: Table Of Contents
2.4 Technical data ......................7 2.4.1 Diagram I ....................... 8 2.4.2 Diagram II – Visconet II, Visconet II F ........... 8 2.4.3 Diagram III – Visconet II M, Visconet II M F ........8 Assembly instructions ..................9 3.1 Place of installation ....................9 3.2 Assembly ........................ -
Page 4: Safety Instructions
The device has been designed to handle water hazardous substances. The regulations on the operating place (e.g. Water Resources Act WHG, = ordinance on installations for handling of substances hazardous to water VAwS) must be adhered to. 44 1338 101-E Visconet II... - Page 5 Machine or system components, on which inspection, maintenance or repair work is to be carried out must be de- energised.Product description 44 1338 101-E Visconet II...
-
Page 6: Technical Description
The pump has no safety device to prevent automatic restarting after interruption of the power supply. The Visconet II must not be operated with flammable or explosive liquids with a flash point of below 55 °C (hazard classes AI, AII and B). Liquids with a flash point above 55 °C (hazard class A III) must not be transported if they are heated beyond their... -
Page 7: Technical Data
Min. viscosity 100 mPas Drum thread G 2" Nozzle hose DN 19 x 4000 mm Suction head 840 mm Duration of operation 100 % Weight 13,5 kg (VISCONET II F, VISCONET II M F: 14,0 kg) 44 1338 101-E Visconet II... -
Page 8: Diagram I
2.4.1 Diagram I 2.4.2 Diagram II – Visconet II, Visconet II F 2.4.3 Diagram III – Visconet II M, Visconet II M F 44 1338 101-E Visconet II... -
Page 9: Assembly Instructions
G1” screwing of the discharge hose with the elbow at flow meter´s outlet (5). The other screw coupling is connected to the rotary joint of the automatic nozzle (4). For operation of the meter see the enclosed instructions. 44 1338 101-E Visconet II... -
Page 10: Operation
At the end of delivery, switch the electric pump off and place the nozzle in its holder. 4.3 Flow meter (optional) Version: Visconet II F, Visconet II MF, Visconet II HDZne, VisconetT II HDZe Please see operation manual flow meter. 44 1338 101-E Visconet II... -
Page 11: Dismantling
The thermal overload protection of the electric motor has been activated. After cooling down it resets itself automatically. The cause of the over heating should be corrected. In case of excessive noise development, further operation is only permitted after elimination of the cause! 44 1338 101-E Visconet II... -
Page 12: Maintenance
A discharge hose can be easily changed by simply loosening the screw connections (also see chapter 3 Assembly instructions). 7.3 Fuse In the Visconet II the motor is protected by a thermal cut-out in the motor winding, which resets itself after the motor cools down. 7.4 Cleaning the system In the event of superficial fouling clean the device carefully with suitable materials, use no corrosive cleaning materials. -
Page 13: Declaration Of Conformity
9. Declaration of conformity 44 1338 101-E Visconet II... - Page 14 44 1338 101-E Visconet II...
- Page 15 44 1338 101-E Visconet II...
- Page 16 HORN GmbH & Co. KG Munketoft 42 24937 Flensburg Germany T +49 461-8696-0 F +49 461-8696-66 www.tecalemit.de info@tecalemit.de 44 1338 101-E Visconet II...
