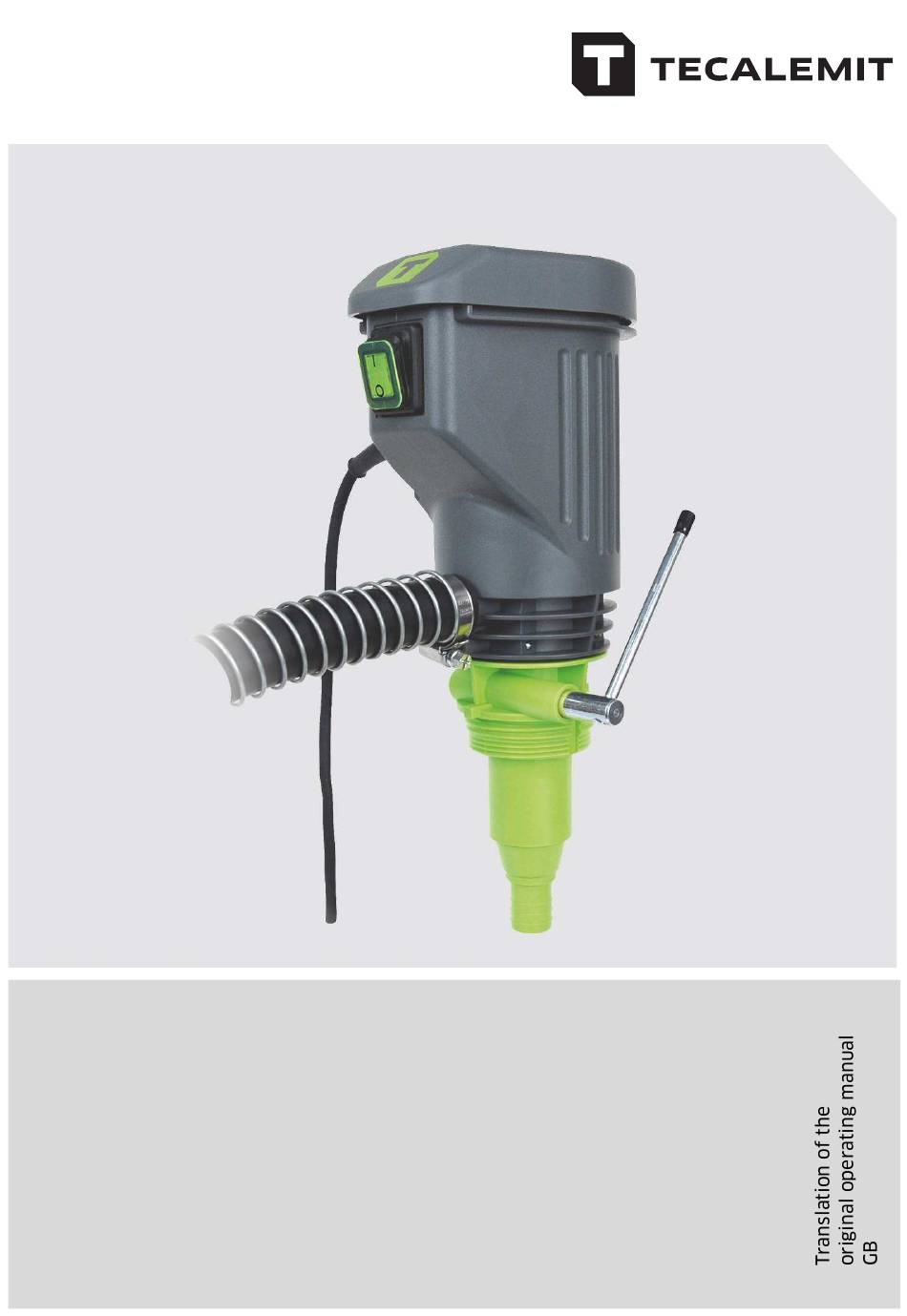

- Page 1 Operating manual HORNET W 40, G 40/12, G 40/24 Item-No.: 104458475, 104428700, 104438700, 104448700, 104458475, 104458702, 104468702, 104468722, 104478702, 104478722, 104528700, 104538700, 104548700, 104558702, 104568702, 104568722, 104578702, 104578722...
- Page 2 Text, graphics and layout copyright protected. Reproduction and copying, including in part, only permitted with written permission. Technical changes reserved. Service Hotline +49 1805 900 301 (0,14 €/Min: on the German landline network, Mobile telephone max. 0,42 €/Min.) service@tecalemit.de Document-No.: 44 1268 102-G As of: 05.08.2021...
-
Page 3: Table Of Contents
Table of content Safety instructions ....................3 General information .................... 5 2.1.Description / Appropriate use................5 2.2.Product versions ....................6 2.3.Technical data ......................6 Assembly instructions ..................7 3.1.Requirements for the location of installation..........7 Operation ......................8 4.1.Commissioning and re-commissioning ............. 8 4.2.Normal operation .................... - Page 4 Maintenance and repairs Do not make any changes, extensions and/or modifications to the device without the manufacturer's permission. Replacement parts must conform to the technical specifications defined by the manufacturer. For original parts, this conformity is always guaranteed. Hazardous substances In exceptional cases, the components of this device may contain hazardous substances.
-
Page 5: General Information

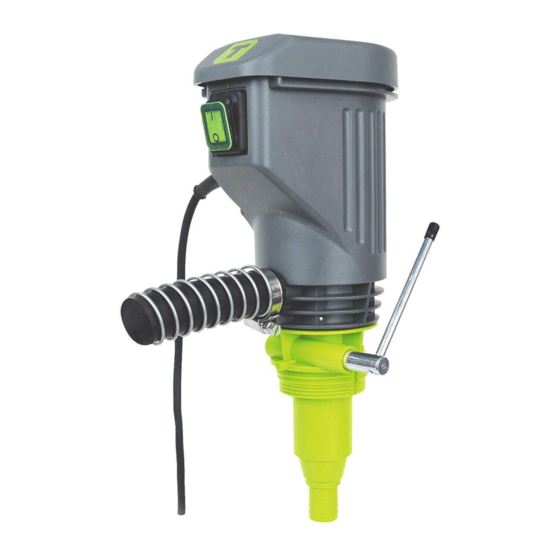

General information 2.1. Description / Appropriate use – The HORNET electrical pump is an electrically powered delivery pump specifically for use with diesel and heating oil that has a flash point of over 55°C. It can also be used with radiator antifreeze (undiluted concentrate). –... -
Page 6: Product Versions
Automatic nozzles A 2010 104 548 700 HORNET G 40/24 A Automatic nozzles A 2010 104 558 702 HORNET W 40 A FMT 3 FMT 3 Automatic nozzles A 2010 104 568 702 HORNET G 40/12 A FMT 3 FMT 3... -
Page 7: Assembly Instructions
Assembly instructions Fit suction filter (1) to suction pipe (2) Model HORNET40 Standard and secure by means of light hose clamp (3). Slip transparent suction hose (4) approx. 30 mm on the suction pipe (2). Cut the delivery hose to required length and slide it on to the suction pipe socket (5) of the priming pump (14). -
Page 8: Operation
Operation 4.1. Commissioning and re-commissioning During commissioning the pump must be filled through repeated pumping action with the hand lever (15) at the suction stage (14). After prolonged periods of non- use the integrated siphon protection may cause the liquid column to drop, so that the pump may have to be primed again. -
Page 9: Automatic Nozzle 2010 (Option)
4.4. Automatic nozzle 2010 (option) – The nozzle A 2010 comes with a general building authority test certificate (P-TÜ7-01340). The test certificate is available on request. – An automatic disconnection follows when the tank is full, the nozzle is held in vertical position or when the nozzle (13) falls to the ground with a fixed nozzle lever. -
Page 10: Disposal
Disposal The device is to be emptied completely and the liquids properly disposed of in case it is taken out of service. The equipment is to be disposed of properly when taken permanently out of service: - Return old metal for recycling. - Return plastic parts for recycling. -
Page 11: Declaration Of Conformity
Declaration of conformity 44 1268 102-G HORNET 40... - Page 12 HORN GmbH & Co. KG Munketoft 42 24937 Flensburg Germany T +49 461-8696-0 F +49 461-8696-66 www.tecalemit.de info@tecalemit.de 44 1268 102-G HORNET 40...
