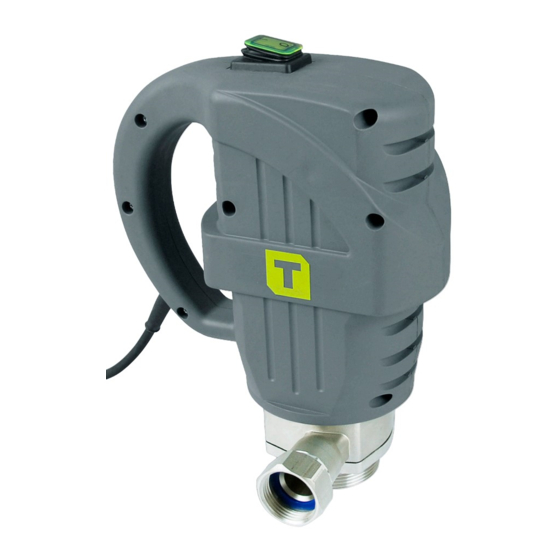

TECALEMIT HORNET W 85 H INOX Operating Manual

TECALEMIT HORNET W 85 H INOX Operating Manual

Hide thumbs Also See for HORNET W 85 H INOX:

Advertisement

Quick Links

Operating manual
HORNET
W 85 H INOX
Item Number:
US108 601 200; US108 600 200; US108 600 300;
US108 601 400; US108 600 400; US108 600 600;
US108 601 201; US108 601 401

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HORNET W 85 H INOX and is the answer not in the manual?

Questions and answers

Summary of Contents for TECALEMIT HORNET W 85 H INOX

  • Page 1 Operating manual HORNET W 85 H INOX Item Number: US108 601 200; US108 600 200; US108 600 300; US108 601 400; US108 600 400; US108 600 600; US108 601 201; US108 601 401...
  • Page 2 No guarantee claim exists for malfunctions and damages to the device caused by insufficient knowledge of the operation manual. © Tecalemit, inc. All rights reserved. Text, graphics and layout copyright protected. Reproduction and copying, including in part, only permitted with written permission. Technical changes reserved.
  • Page 3: Table Of Contents

    8.2. Replacement Parts Drum Transfer Pump ............. 18 8.3. Instructions for Replacing the Pump Rotor ..........18 Disposal ....................... 19 9.1. Return of batteries ....................19 10. Scale Image of the HORNET W 85 H INOX ........... 19 44 1672 103-E HORNET W 85 H INOX...
  • Page 4: Safety Instructions

    The type label on the device and the warning signs on the device must be heeded and kept in a fully legible condition. 44 1672 103-E HORNET W 85 H INOX...
  • Page 5 First check that these components are voltage-free, then ground and short circuit them, as well as insulate neighboring voltage-carrying components. 44 1672 103-E HORNET W 85 H INOX...
  • Page 6: Technical Description

    ISO 22241. The pump must be firmly installed on the IBC tank or container during operation. The HORNET W 85 H INOX and the FMT II or FMT 3 flow Meter may not be operated with flammable and explosive fluids with a flame point below 131°F (55°C) (hazard classes AI, AII and B).
  • Page 7: Allowed Media

    2.3. Allowed Media All variants of the HORNET W 85 H INOX pump can convey urea solution AUS 32 in accordance with ISO 22241 and water. No other media may be conveyed! Please note the safety data sheet of your medium.
  • Page 8: Assembly Instructions

    The W 85 H INOX is delivered in the following equipment variants: • Pump with IBC console • Drum transfer pump • Pump without accessories + Optional flow meter FMT II or FMT 3 44 1672 103-E HORNET W 85 H INOX...
  • Page 9: Drum Transfer Pump With Suction Tube

    7. The suction tube will be inserted down to the floor of the container and secured with the clamping nut. 8. Secure the container against falling. 44 1672 103-E HORNET W 85 H INOX...
  • Page 10: Pump With Ibc Console

    5. Now a suitable coupling can be mounted on the suction tube (4), for example a Micro © Matic coupling. Connect the Coupling to the suction connection of the IBC. Be sure that the coupling and the suction tube is clean, to avoid pollution of the IBC contend. 44 1672 103-E HORNET W 85 H INOX...
  • Page 11: Installation Site

    We recommend a max. 26´ (8m) tap hose. 3.8. Electrical Connection The pump is operated with alternating current 120v / 60Hz. The electricity consumption is 750W. The pump is equipped with a safety plug. 44 1672 103-E HORNET W 85 H INOX...
  • Page 12: Commissioning / Operation

    The HORNET W 85 H INOX electric pump may only be operated under supervision. 4.1. Suction / Dry Running The HORNET W 85 H INOX pump works according to the self priming hybrid pump principle. The suction process should be completed after a few seconds. If the pump has not taken in any medium after ca.
  • Page 13: Automatic Pump Nozzle A2003-Es

    The zero delivery inlet pressure must not exceed 50 psi (3.5 bar). The minimum operating pressure is 10 psi (0.7 bar). The local safety and accident prevention regulations apply to the operation of the automatic nozzles. 44 1672 103-E HORNET W 85 H INOX...
  • Page 14: Function / Safety Equipment

    (see fig. A). This also ensures that the nozzle shuts down when the fuel tank is full. Be sure that the nozzle is completely clean, before starting filling the tank. 44 1672 103-E HORNET W 85 H INOX...
  • Page 15: Maintenance

    2. Always hang up the nozzle securely after use so that it cannot fall. Handle the automatic pump nozzle with care. 3. Greasing or oiling is not necessary. 4. The automatic nozzles A2003-ES for AUS32 use should be cleaned regularly with warmed distilled water. 44 1672 103-E HORNET W 85 H INOX...
  • Page 16: Error Message - What To Do, If

    In the event of disproportionate noise, further operation is only allowed after the cause of this has been remedied! 7. Maintenance The HORNET W 85 H INOX is nearly maintenance-free, however, the following work should be conducted regularly in order to ensure flawless operation. 7.1. Leak Test The device and the other components of the system are to be checked regularly for leaks and damages and are to be repaired if needed.
  • Page 17: Replacement Parts

    252 350 000 Plastic valve urea with rotatable fittings 814 980 016 Rotable fittings stainless steel 816 720 002 Suction hose Pump rotor including O ring for pump chamber 816 428 003 INOX 44 1672 103-E HORNET W 85 H INOX...
  • Page 18: Replacement Parts Drum Transfer Pump

    Pos. Quantity Product No. Designation 404 108 150 O ring 515 560 029 Rotor The pump and the flow meter may only be repaired and replaced by authorized service partners. 44 1672 103-E HORNET W 85 H INOX...
  • Page 19: Disposal

    (Cd, Hg or Pb) of the heavy metal that is decisive for the classification as containing harmful substances: 1. “Cd” stands for cadmium. 2. “Pb” stands for lead. 3. “Hg” stands for mercury. 10. Scale Image of the HORNET W 85 H INOX 44 1672 103-E HORNET W 85 H INOX...
  • Page 20 TECALEMIT Inc. 6324 Greens Road Humble, Texas 77396 T 281-446-7300 F 281-619-5613 sales@tecalemitusa.com www.tecalemitusa.com 44 1672 103-E HORNET W 85 H INOX...
